AHD 1.3 Mp Waterproof Truck Bus Security Cameras Outdoor Night Vision kamera
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-387 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; AHD 1.3 Mp Waterproof Truck Bus Security Cameras Outdoor Night Vision kamera |
|
Detail Information |
|||
| Type: | Night Vision Camera / Kamera | Resolution: | 720P/960P/1080P Optional |
|---|---|---|---|
| TV System: | PAL Or NTSC | Pixel: | 1.0 Megapixel/1.3 Megapixel/2.0 Megapixel |
| Lens Angle: | 170 Degree Wide Angle | IR Cut: | YES |
| Operation Temperature: | ‘-20℃ To 50 ℃ | Warranty: | 12 Months |
| SMT Factory: | YES | ||
| Highlight: | mobile surveillance cameras,cctv surveillance camera |
||
Product Description

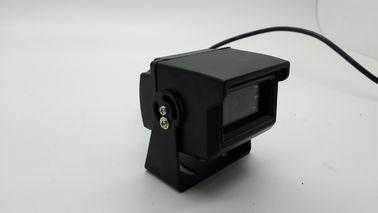

AHD 1.3 Mp Waterproof Truck Bus Security Cameras Outdoor Night Vision kamera
- IR for Night Vision
- Anti-Glare Shield
- Adjustable Base
- 170 Degree Viewing Angle
- Depensable resolution
- RAC / BNC / Aviation connector
Specification
| Sensor | 1/3 AR0130 CMOS | |
| TV System | PAL | NTSC |
| Effective Resolution | PAL:1280(H)×960(V) | NTSC:1280(H)×960(V) |
| Minimum Illumination | 0.0001 LUX / F1.2 | |
| Horizontal Resolution | AHD:1.3 Mega Pixels 960P,Analog:1200 TVL | |
| Scanning Frequency | 50Hz 60Hz | |
| Gamma Value | 0.45 | |
| Electronic Shutter | 1/50～1/100000s | 1/60～1/100000s |
| SNR | >46dB | |
| Video Output | 1.0V p-p | |
| Operating Temperature | ‘-20℃ to 50 ℃ | |
| Operating Humidity | Relative humidity less than 95 % | |
| Power | DC12V (±10%) | |
Cameras Optional
1. Professional manufacturer of MDVR and cameras with our own SMT factory also .
2. All kinds of chips like CMOS /CCD /AHD for optional
3. We also provide chips to cameras suppliers
4. We can produce many kinds of car cameras ,only if you can provide camera picture or link except some private mould .
5. We offer very best price
6. One year 12 months for warranty
7. We produce 500-800 pcs cameras per day .
Camera Dimension
