| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-100 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
| Type: | 1.0 Mega Pixels Analog High Resolution Car Cameras For Bus Security System | Resolution: | 720P/960P/1080P Optional |
|---|---|---|---|
| TV System: | PAL Or NTSC | Lens Angle: | 140 Degree Wide Angle |
| IR Cut: | YES | Operation Temperature: | ‘-20℃ To 50 ℃ |
| SMT Factory: | YES | Warranty: | 12 Months |
| High Light: | mobile surveillance cameras,cctv surveillance camera |
||

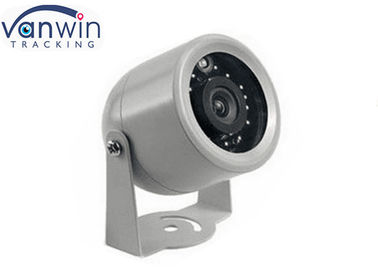

1.0 Mega Pixels Analog Bus Surveillance Camera , hd surveillance camera system High Resolution
Advantages
1. Professional manufacturer of MDVR and cameras with our own SMT factory also .
2. All kinds of chips like CMOS /CCD /AHD for optional
3. We also provide chips to cameras suppliers
4. We can produce many kinds of car cameras ,only if you can provide camera picture or link except some private mould .
5. We offer very best price
6. One year 12 months for warranty
7. We produce 500-800 pcs cameras per day .
Specification
| Sensor | 1/4 OV9712+ CMOS | |
| TV System | PAL | NTSC |
| Effective Resolution | PAL:1280(H)×720(V) | NTSC:1280(H)×720(V) |
| Minimum Illumination | 0.1 LUX / F1.2 | |
| Horizontal Resolution | AHD:1.0 Mega Pixels720P,Analog:1000TVL | |
| Scanning Frequency | 50Hz 60Hz | |
| Gamma Value | 0.45 | |
| Electronic Shutter | 1/50～1/100000s | 1/60～1/100000s |
| SNR | >46dB | |
| Video Output | 1.0V p-p | |
| Operating Temperature | ‘-20℃ to 50 ℃ | |
| Operating Humidity | Relative humidity less than 95 % | |
| Power | DC12V (±10%) | |
