Bus / truck / trailer / coach 7 inch TFT Car Monitor AHD with 720P camera , SD Card

Basic Information
Place of Origin: Shenzhen,Guandong
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW702-DVR
Minimum Order Quantity: 1 pc
Price: negotiated
Packaging Details: Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn
Delivery Time: 3-7 working days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000 pcs per month ;
Power Supply: 12V-24V DC Optional Screen Size: 7 Inch TFT LCD With DVR Quad Picture
Resolution: 800xRGBx480 Screen Type: 16:9
View Angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70) Car Make: All Kinds
Warranty: 12 Months Video Inputs: Four Ways
Image Format: CIF/HD1/D1 Optional Placement: Stand Alone
High Light:

car video monitors


car rear view monitor

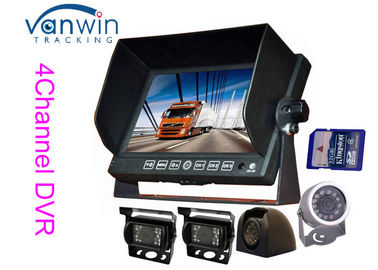

Bus / truck / trailer / coach 7 inch TFT Car Monitor AHD with 720P camera , SD Card


The 7inch monitor can support 4 camera inputs and 1way audio input and 32GB sd card storage, which is widely used for truck, trailer, coach bus and ect.




Screen Ratio:16:9
Back Light Luminance:LED, 300cd/㎡
Compatiblesystem:NTSC & PAL (automatically)
OSD control:Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
View angle:Hor. L(70) R(70)   Ver. UP(50) DOWN(70)
Image reversion:UP/Down and Left/Right
Power requirement:12V DC (12-24V DC optional)
Power consumption:<8W
Key color: Black rubber oil, radium carving, through blue light
Shockproof level:4G
DVR image quality:DVR recording 4 channels video signal, VGA resolution:640*480, Recording speed: 60FPS, Storage format: AVI
Memory interface:1 SD interface
Video storage:SD high-speed card, maximum support 32G
AV Inputs:4 way video input,1way audio input
Number of Trigger and display:4 triggers
Optional functions:4 PIN connector, Butterfly style bracket
Other features:4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor

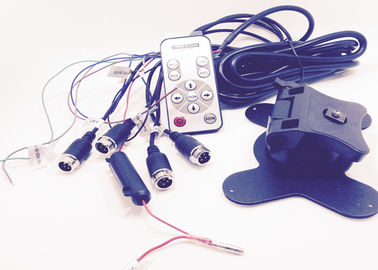

Accessories:Remote controller, Power supply cable , User manual, Bracket




Bus / truck / trailer / coach 7 inch TFT Car Monitor AHD with 720P camera , SD Card 0

Bus / truck / trailer / coach 7 inch TFT Car Monitor AHD with 720P camera , SD Card 1

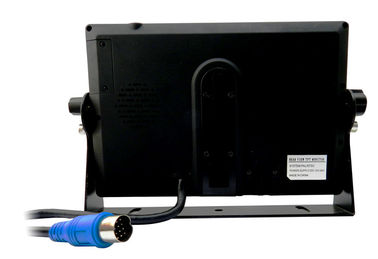

BNC and 4-pin cable for optional below



Bus / truck / trailer / coach 7 inch TFT Car Monitor AHD with 720P camera , SD Card 2


Packaging & Shipping


1. Box can be color box, white box, OEM


2. Package includes power line, bracket, remote controller, headrest frame, insert card and user manual.


3. Goods will be shipped out within 2~7 days after the receipt of payment.


Why choose us?

1. 0.1% return rate , 99.5%qualified rate—strict QC system, complete QC process, including IQC,PQC,FQC, QAC,QC staff consist of engineers, technicians and production staff with 8+ years professional experience and fully trained to conduct QC

2. 25% Profit is invested on R&D—20% profit is invested on R&D to meet the market demand, we focus on the market feedback and develop market-oriented new models. new items will be released each season by our 10-years-experience R&D technicians.

3.Strictly follow the quality control system,five steps system:Incoming quality control→Semi-finished full-function test→Aging testFinal quality control→Out-going quality control.

4. 24 hours a day to serve you—24 hours customer service to solve your problems at shortest time, your inquiry& request will be replied within 24hours.

5.OEM&ODM professional service.


About US


We are professional manufacturer of 4ch/8ch mobile dvr system with monitors ,cameras.They are used for vehicle fleeting management  and safety monitoring.The full system are very necessary for buses ,truck,school buses,tailer,police cars, bank money carrying cars and so on.

3G remote viewing real time monitoring function let you see what drivers and passengers are doing ,where they are with GPS tracking .


Welcome you to test.
