Heavy Duty Digital 3 Channel car lcd monitor for AHD cameras , 10.1 Inch
Product Details:
Place of Origin: | Shenzhen,Guandong |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW-110HD |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pc |
---|---|
Price: | negotiated |
Packaging Details: | Color Neutral Box ; Neutral Color box,white box and customize box for your option Packing details: 10pcs/box net weight: 10.42KGS gross weight:11.22KGS M: 62.4*46*24cm |
Delivery Time: | 3-7 working days |
Payment Terms: | T/T,Western Union,Paypal |
Supply Ability: | 5000 pcs per month ; |
Detail Information |
|||
Size: | 10.1 Inch | Resolution: | 1024xRGBx600 |
---|---|---|---|
Screen Type: | 16:9 | Image Reversion: | UP/Down And Left/Right |
Video Input: | 3 Channel HD Video Input | Camera: | Front/side/rear Optional |
Extension Cable: | 5/10/15/20M Optional | Connector: | Aviation Or RAC Conector |
Car Make: | All Vehicles | ||
Highlight: | car video monitors,car rear view monitor |
Product Description

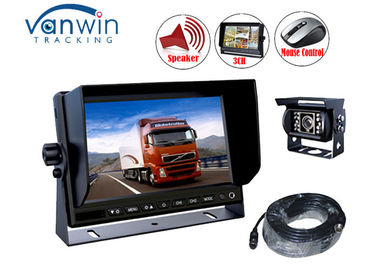

Heavy Duty Digital 3 Channel car lcd monitor for AHD cameras , 10.1 Inch
1.The AHD monitor have 3 HD video input ,it means it can connect 3 AHD cameras for monitoring in the vehicle DC12-24V.
2. Also have normal monitor for optional ,like 5inch ,7 inch ,9 inch ,10 inch with quad or non-quad .Also with 7inch and 9inch monitor DVR for choice .
3. We would like to provide one full set for your testing with best price as we can .
You will like us and our products so much.
4. Professional manufacture for MDVR system and different kinds of car monitors and cameras for optional.
5. We also have our own SMT factory with all kinds of chips production
6. All monitors and cameras and MDVR have been tested over 48 hours before sending .Quality and credit is our credit firstly .
7. We are very honest and kind to serve you well .
8. Your money is safe here.
Main Specification
Screen Ratio | 16 : 9 |
Back Light Luminance | LED, 300cd/M2 |
Resolution | 1024xRGBx600 |
Compatible system | NTSC & PAL (automatically) |
OSD control |
Brightness, Contrast, Saturation, Volume, Language (English, Simplify Chinese) |
View angle | Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
Image reversion | UP/Down and Left/Right |
Power requirement | DC 12-24V |
Power consumption | 5W |
Storage temperature | -30 to 80 degree |
Working temperature | -20 to 70 degree |
Size | 285*184*34MM |
Weight | About 680g |
Key color | Black |
AV Inputs | 3 channel HD video input, single image display, support 720P@25/30, 720P@50/60, 1080P@25/30 |
Number of Trigger and display | 3 triggers |
Optional functions | 4 PIN connector or RCA connector |
Other features | OSD menu, Remoter control, Sunshade design around |

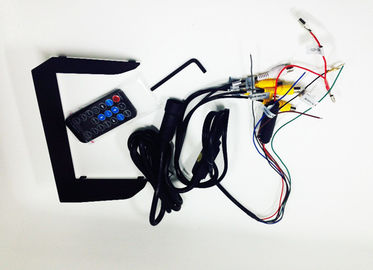

Accessories | Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench |
Package | 10pcs/box net weight: 15.08KGS gross weight:15.88KGS M: 62.4*46*24cm |
