| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C401 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
| Type: | Car Ball Camera | Resolution: | 1080P/960P/720P/800TVL/700TVL/600TVL |
|---|---|---|---|
| TV System: | PAL/NTSC | Power: | DC12 Or 24V |
| Lens Angle: | 120 Degree Wide Angle | Warranty: | 12 Months |
| Material: | Metal | IR Lights: | NO |
| High Light: | security monitor camera,reverse parking camera |
||

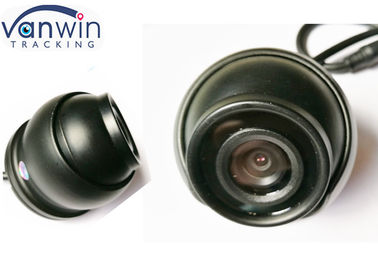

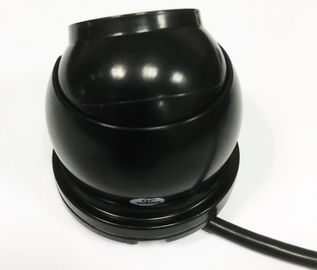

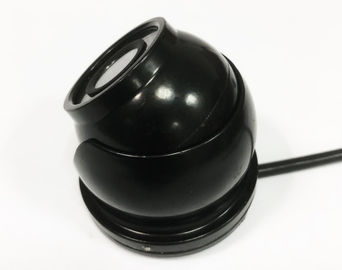

High definition Small Car Ball Camera Sony CCD 700TVL for bus surveillance DVR
It is very popluar model due its high definition resolution and also small size .Used for vehicle security monitoring system .There are many chips from 420TVL to 800TVL and AHD for optional.
| Image Sensor | 1/3" 600TVL SONY CCD |
| Video System | PAL/NTSC |
| Pixels | PAL:752(H)×582(V) |
| NTSC:768(H)×494(V) | |
| Horizontal Resolution | 600 TVL |
| Min Illumination | 0.01LUX(0 Lux IR on) |
| SNR | ≥48dB |
| Electronic Shutter | 1/50-1/10000(S) |
| Video Output | 1.0V±0.5Vp-p 75Ω |
| View Angle | 140° |
| Working Voltage | DC12V±0.5V |
| Consumption | 100mA±10% |
| Display image | Mirror/normal optional |
| MIC | Optional |
| Camera Len | f:3.6mm |
