| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-398 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
| Type: | Car Ball Camera | Resolution: | 1080P/960P/720P/800TVL/700TVL/600TVL/480TVL/420TVL |
|---|---|---|---|
| TV System: | PAL/NTSC | Power: | DC12 Or 24V |
| Lens Angle: | 120 Degree Wide Angle | Warranty: | 12 Months |
| Material: | Metal | IR Lights: | NO |
| Size: | Small | ||
| High Light: | hidden surveillance cameras,security monitor camera |
||

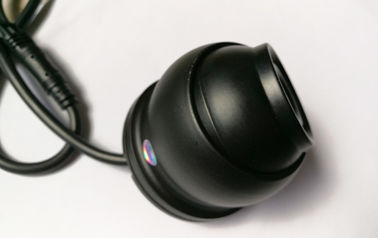

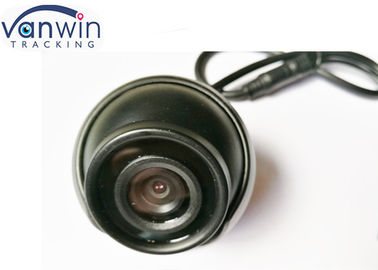

Vehicle Mini Ball Camera for Taxi Hidden Kamera for Mobile DVR System
It is very popluar model due its high definition resolution and also small size .Used for vehicle security monitoring system .There are many chips from 420TVL to 800TVL and AHD 1.0 MP/1.3MP/2.0MP for optional.
The below is 1.3 Mega pixels parameter
| Sensor | 1/3 AR0130 CMOS | |
| TV System | PAL | NTSC |
| Effective Resolution | PAL:1280(H)×960(V) | NTSC:1280(H)×960(V) |
| Minimum Illumination | 0.0001 LUX / F1.2 | |
| Horizontal Resolution | AHD:1.3 Mega Pixels 960P,Analog:1200 TVL | |
| Scanning Frequency | 50Hz 60Hz | |
| Gamma Value | 0.45 | |
| Electronic Shutter | 1/50～1/100000s | 1/60～1/100000s |
| SNR | >46dB | |
| Video Output | 1.0V p-p | |
| Operating Temperature | ‘-20℃ to 50 ℃ | |
| Operating Humidity | Relative humidity less than 95 % | |
| Power | DC12V (±10%) | |
