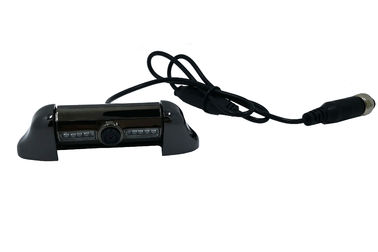

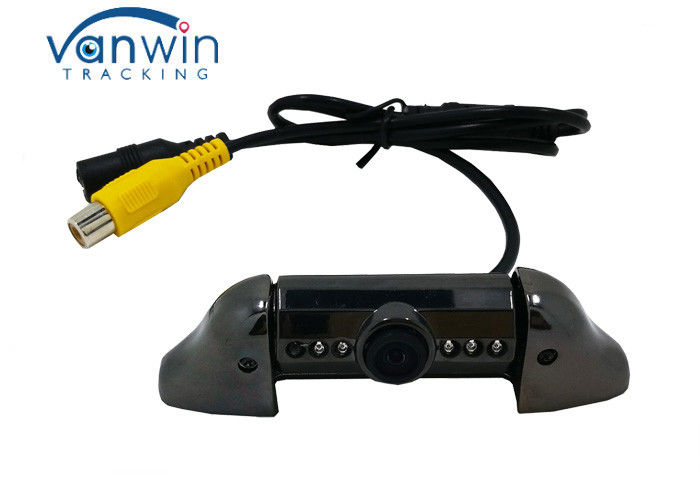

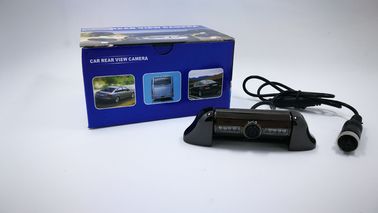

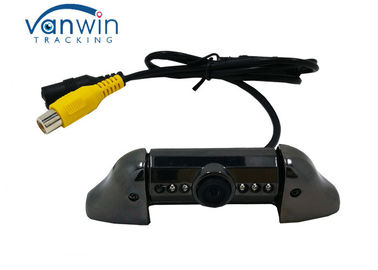

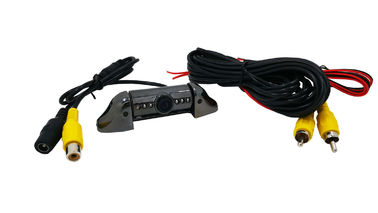

Good night Vision Vehicle Hidden Camera 170 wide degree Front View Camera
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-106 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Taxi Or Small Car Camera | Application: | Front View/Rearview |
|---|---|---|---|
| TV System: | PAL Or NTSC | Voltage: | DC12 |
| Connector: | 4 Pin Aviation,square, BNC Connector | Warranty: | 12 Months |
| Resolution: | CCD 600TVL/720P For Option | View Angle: | 170 Degree |
| Micphone: | Support | IR Lights: | 10pcs |
| High Light: | hidden surveillance cameras,security monitor camera |
||
Product Description
Good night Vision 170 wide degree Front View Camera with 8 IR lights, waterproof for Car / Taxi

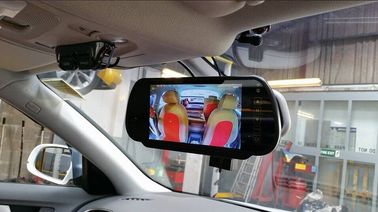

It can be used with mobile DVR system or reversing system for frontview or rearview. It's very welcomed with its good night vision, wide degree, and special mold. It's very sturdy and not easily broken.
It has 2 models, one is bigger and another is smaller and waterproof. Both can support RCA and Aviation connector.
Main Features:
1. Max Sony CCD 600TVL/720P for optional
2. Over 170 degree wide angle monitoring
3. Very small size with private mould, only we can produce it
4. Very strong and stable quality
5. One of best selling cameras
6. Cabale jack: aviation/BNC/RCA optional;
7. PAL/NTSC optional, DC12V power supply;
8. mini size with good quality
Main Specifications:
| Image Sensor | 1/3" 600TVL SONY CCD/HD CMOS |
| Video System | PAL/NTSC |
| Pixels | PAL:752(H)×582(V)/AHD-M (1000TVL) |
| NTSC:768(H)×494(V)/AHD-M (1000TVL) | |
| Horizontal Resolution | 600 TVL/720p |
| Min Illumination | 0.01LUX(0 Lux IR on) |
| SNR | ≥46dB |
| Electronic Shutter | 1/50-1/10000(S) |
| Video Output | 1.0V±0.5Vp-p 75Ω |
| View Angle | 140° |
| Working Voltage | DC12V±0.5V |
| Consumption | 100mA±10% |
| Display image | Mirror/normal optional |
| MIC | Optional |
| Camera Len | f:3.6mm |
Application:
1. Taxi or small car, bus
2. Frontview, sideview, backview
2. MDVR, Reversing system
