AHD 1080P Sideview Bus Surveillance Camera For Vehicles Security Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW396 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 5-70USD |
| Packaging Details: | Carton Box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T Western union, paypal |
| Supply Ability: | 1000pcs/Month |
|
Detail Information |
|||
| Waterproof: | IP69K | Nightvision: | Supported |
|---|---|---|---|
| Connector Type: | 4pin Air Port/RCA | Material: | Metal Housing |
| Power Supply: | DC12V | Lens: | 2.8 3.6mm |
| Function: | Working With Mdvr For Recording Purpose For Backview | Viewing Angle: | 90-170 Degrees |
| High Light: | Sideview Bus Surveillance Camera,AHD 1080P Bus Surveillance Camera,Security Monitoring Vehicle Surveillance Camera |
||
Product Description
AHD 1080P Sideview Bus Surveillance Camera for vehicles Security Monitoring
Product Description:
Our Bus Surveillance Camera is a high-quality backup camera for vehicles that provides superior protection and safety. It is waterproof with an IP69K rating, so it can withstand even the toughest weather conditions. The camera also has a minimum illumination of 0.01 lux, so it can capture clear images even in low-light environments. Its image sensor is a CMOS sensor, providing better image quality than other types of sensors. Finally, the camera employs a 4pin Air Port/RCA connector for easy installation.
This Bus Surveillance Camera is ideal for any vehicle, as it offers a reliable and robust backup camera solution. It is designed to provide superior protection and safety for your vehicle, as it can easily capture clear images in all environments. With its waterproof rating and low-light image sensor, it is perfect for any vehicle that needs a reliable and robust backup camera system.
Our Bus Surveillance Camera is perfect for any vehicle, as it is designed to provide superior protection and safety. Its waterproof rating and low-light image sensor make it perfect for any environment, while its 4pin Air Port/RCA connector makes installation easy and hassle-free. With this Bus Surveillance Camera, you can be sure that your vehicle is always secure and safe.
Features:
- Product Name: Bus Surveillance Camera
- Color: Can Be Customized
- Camera Type: Bus Surveillance Camera, truck camera, backup camera for vehicles
- Image Sensor: CMOS
- Resolution: AHD 1080P/960P/720P
- Connector type: 4pin Air Port/RCA
Applications:
Technical Parameters:
|
Camera |
Sensor | 1/3 CMOS |
| TV System | NTSC/PAL | |
| Camera Ir LED | 9pcs IR lamp with excellent night vision | |
| Min IIIumination | 0.1Lux@(F1.2,AGC ON); | |
| Electronic Shutter | Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s | |
| Focus | 2.4mm | |
| Lens Interface | M12 | |
| F.O.V | 133° (D),106°(H),76°(V) | |
| Backlight Compensation | Auto | |
| Resolution | 700TVL(AHD 720P) | |
| Signal to Noise ratio | Better than 48dB | |
|
Interface |
Connect | 4 Pin Aviation Female Interface |
| Video Output | 1Vp-p Composite Output(75Ω) | |
| Audio Input | NONE | |
| Audio Output | NONE | |
|
General |
Material | Metal&Plastic |
| Operating Temperature | -30℃~70℃ | |
| Usage | For passenger vehicles | |
| Operating Voltage | DC 9-36V±10%(or From Reversing Monitor DC12V) | |
| Waterproof | IP69K | |
| External Dimensions | 82.6*60.5*56.5mm(L*W*H) |

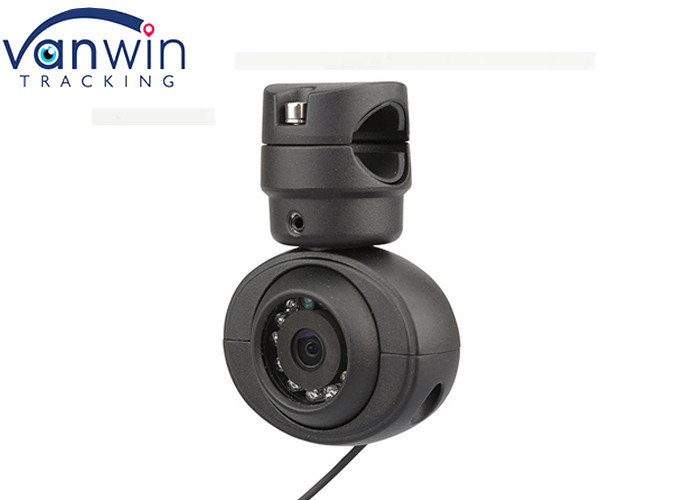

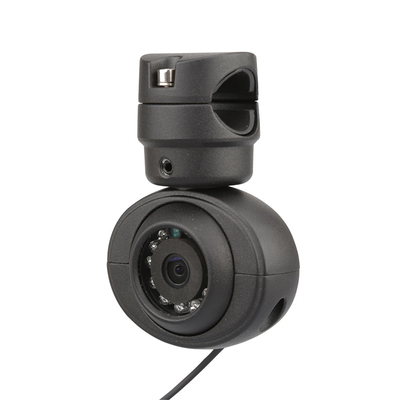

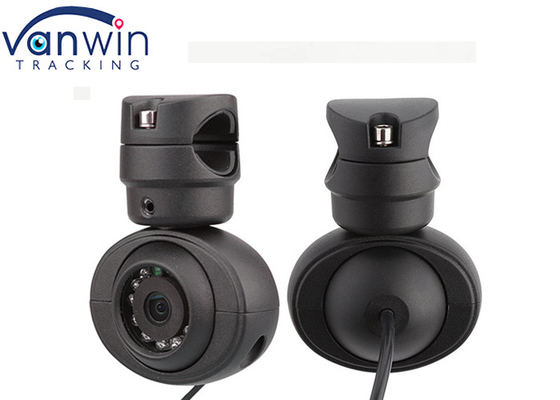

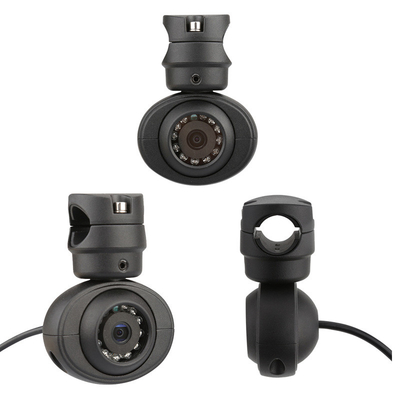

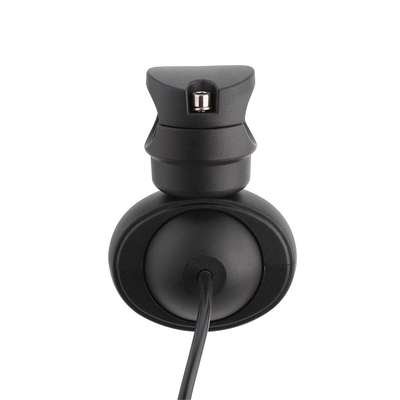

Product Photos
Packing and Shipping:
Packaging requirements for Bus Surveillance Camera:
- Each camera should be packed carefully in a box with appropriate cushioning materials.
- The box should be labelled with the product name and SKU number.
- Make sure all components are firmly secured in the package.
Shipping requirements for Bus Surveillance Camera:
- The shipments should be tracked and insured.
- The shipment should be delivered on time and in good condition.
- Ensure that the recipient is aware of the shipment and can provide a valid signature.
