Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS

Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS
Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS

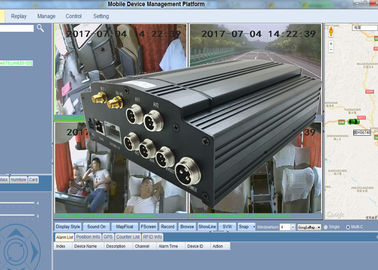

Large Image :  Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW619HD
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month; Anti-knock sturdy 4CH 8CH AHD HDD mobile dvr with 4G Hotspot GPS, 2TB Storage, Free CMS

Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS

Description
Power Supply: 8V-36V Storage Capacity: 2TB HDD Or SSD
Function: 4 Cameras HD Monitoring Video With 3G Real Time,GPS Tracking Software Support: Client, Server, Playback Software
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Warranty: 16 Months
OEM / ODM: Support Shock Resistance: The World Class Level With Military Use
Resolution: Full 720P; 2ch 720P+2ch D1; Full D1 WIFI Hotspot: Support
G-sensor: Support
High Light:

car digital video recorder

,

hd car dvr

Anti-knock sturdy 4CH 8CH AHD HDD mobile dvr with 4G Hotspot GPS, 2TB Storage, Free CMS



Product Summary



Automobile video serveillance DVR  supports 4 channel X 720P high definition resolution.

AHD 4 channel 720P 3G school bus car CCTV SD card MDVR with RFID and GPS is a practical 3G+GPS system for Veihcle mobile serveillance purpose which combines latest high technology such as Audio&Video Coding&Decoding, Mass HD&SD storage, Streaming media network, Audio&Video denoising, Mechanical Shockproof(Anti-vibration), UPS power protection, Flexible wide voltage range and etc.

Application:
A. Road Transportation
B. Railway Transportation
C. Water Transportation
D. Air Transportation
E. Other ways with live surveillance purpose





Main Specification



A. Standard H.264 compression format ensures high rate, less storage space and clear.
B. G.726 format for 4 audio in with 1 out
C. 6 Alarm in with 1 out
D. Video recording Option of Starting up, Timing, and Touch. Both HDD and SD card storage. Double safe. With auto heater.
E. Double Stream for recording and Multiple windows watching
F. UPS technology Automatic protection against sudden power off
G. Shutdown option of Key, Timing, Delay
H. Wide voltage range of 8 - 36 V and Automatic heater
I. Less than 25 seconds for restart, Cloud(PTZ) console
J. ASF format for Video play, Universal VLC player support, Sodimax own play software surport
K. 3G, WIFI and GPS module embedded.
L. Mobile phone support(Android/iOS)
M. Cloud(PTZ) console and IR Remote Control

N. Support Brake alarm, Reverse alarm, Motion detect, Door opening alarm, CMS platform, Customized Player.

Support Geo fence, Location, Speed alarm, G-sensor etc.
Support oil sensor, Fuel cut, Power cut, SOS alarm, Alarm button, Online tracking, Live talkback, Live surveillance, Live simultaneous storage, Dispatching system, Camera rotation, PTZ cloud control, SMS function, CMS platform, iOS&Android client(for Apple and Android phone), Wireless WIFI, Remote control and etc.



Item

Description

OS

Linux

Graphics Operation Interface

System parameters can be set through external display and remote controller

Security Management

2-level management for user password, administrator password, supporting encrypted transmission

Video and Preview

Video Input, Output

4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

OSD

Character superposition function, information superposition of time and date, device ID and GPS, etc.

Video Compression Format

Compression coding. Applying Hisilicon hi-performance processor.

Dual-Stream

Supported

Preview Function

Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

Frame Rate

PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

Resolution

4 channels x720P or 1080P

Quality

Grade 1 to grade 5 for selection (descending)

Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio

Audio Input, Output

4-channel input, 1-channel output

Compression Format

G.726 coding

Recording

Storage Medium

Supporting dual SD card, which supports up to 32G

File Format/ System

ASF/FAT32

Video Strategies

Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

Video Search

Searching by time, type, storage device and other conditions

Video Playback

Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

Alarm

Alarm Input/ Output

6-channel on/off signal alarm input, 1-channel on/off signal alarm output

Alarm Recording

Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

Storage Space Alarm

Supporting settings for alarm of storage space

Function Alarm

GPS overspeed alarm, acceleration alarm, motion detection alarm

Communication Ports

RS232, RJ45 10M/100M self-adaptable network interface

Wireless Transmission (Optional)

Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;

Compatible with GPRS, EDGE;

Embedded Wi-Fi module;

GPS (Optional)

Supporting external GPS

Remote Data Transmission Channel Selection

Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

PTZ Control

Supporting PTZ control realized by local ad client software;

Parameter Configuration

Supporting parameter configuration functions for mobile DVR coding channel;

G-Sensor

Embedded

System Upgrading

Supporting SD card and remote upgrading

Power Supply and Power Consumption

Power Supply

1. ACC on/off

2. Delayed shutdown

3. Timed on/off

Input Voltage

DC:+8V ~ +36V

Output Voltage

+12V@4*0.5A; +5V@0.5A

Power-off Protection

With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

Power Consumption

<10W in normal operation; <0.5W in standby mode

Operating Environment

Temperature

Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

Humidity

10% to 95%

Dimensions

141(L)×133(W)×43(H)mm

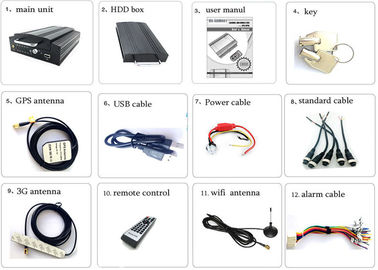

Accessories





Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS 0

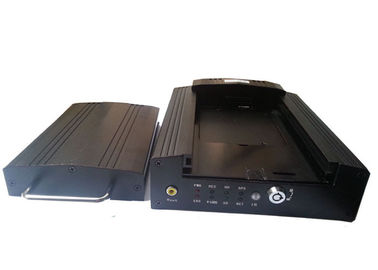

How to install the MDVR

Anti knock sturdy 4CH 8CH AHD vehicle camera dvr with 4G Hotspot GPS , 2TB Storage , Free CMS 1
