4G Mobile NVR 1080P AHD Car DVR 8CH HDD+SD Card WIFI GPS with IP Cameras
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9204HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; 4G Mobile NVR 1080P AHD Car DVR 8CH HDD+SD Card WIFI GPS with IP Cameras |
|
Detail Information |
|||
| Product Name: | 4CH HDD MNVR | Video Format: | H264/H.265 |
|---|---|---|---|
| WIFI Download: | Support | G-Sensor: | Embedded |
| AHD Camera: | 720P/960P/1080P/IP | Alarm: | 6CH Alarm Inputs, 2CH Alarm Output |
| Data Transmission: | 4G/GPS/wifir/s232/485/HDD Storage | Resolution: | 4ch AHD1080P+4CH 1080P IP Camera |
| Software Support: | Client For PC And Mobile Phone, Server, Playback Software | Application: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets |
| Storage: | 2TB Hdd Storage+1*sd Card | Av Inputs: | 4CH Video Input And 4CH Audio Input |
| Capture: | Support | Oil Sensor: | Support |
| Quality Level: | The World Class Level With Military Use | Stream: | Dual Stream, 64kbps～4Mbps Adjustable |
| High Light: | 4G Mobile NVR,IP Cameras Mobile NVR 1080P |
||
Product Description
4G Mobile NVR 1080P AHD Car DVR 8CH HDD+SD Card WIFI GPS with IP Cameras
VW9204HD is a cost-effective and high extendibility mobile digital video recorder (MDVR), developed especially for vehicle monitoring and remote video surveillance. It adopts high speed processor HI3521D and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 3G/4G/5G network, GPS/BD and WIFI. It supports 1080p,720p,D1 resolution video recording, vehicle driving record and video remote uploading. With the central software can do central remote monitoring based on alarm linkage, vehicle intelligent dispatch management and playback analysis based on central database.
Main Specifications
|
Item
|
Description
|
|
|
OS
|
Linux3.18
|
|
|
Operating
|
Cell phone APP, PC client, Remote controller,UI
|
|
|
Functions Summary
|
Preview, recording, playback, network transmission, positioning, AI analysis, multiple sensor data acquisition.
|
|
|
Video and Preview
|
Video Input,
Output,
Signal standard
|
AHD input:4ch ahd, 1ch ADAS, 1ch DSM and 1-2 IPC
Output: 1ch CVBS/VGA
Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional
|
|
Image Identification
|
1ch ADAS, 1ch DSM
|
|
|
OSD
|
Character superposition function, information superposition of time and date, device ID and GPS, alarm,etc.
|
|
|
Video Compression Format
|
Compression coding. Applying H.265 hi-performance processor(Hisilicon 3521D).
|
|
|
Image quality
|
Code stream, frame rate optional
|
|
|
Preview
|
1/4/6 channel preview
|
|
|
Frame rate
|
1080p: max 120fps/s. 720p: 240fps/s, each channel max 30fps/s. NTSC: 240fps/s, each channel max 30fps/s.
|
|
|
Resolution
|
1080p,720p D1 optional.
|
|
|
Audio
|
Audio Input, Output
|
4ch audio input, 1ch audio output. Independent intercom
|
|
Compression Format
|
G.711, G.726
|
|
|
Recording
|
Storage Medium
|
Supporting one 2.5” SATA hard drive(max 2TB) and one SD card(max 256GB)
|
|
Video Strategies
|
Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
|
|
|
Alarm pre-recording
|
0-60min
|
|
|
Alarm recording delay
|
0-30min
|
|
|
Playback channel
|
Support local 1/4/6/8 channel playback
|
|
|
Browse mode
|
Time, channel, event.
|
|
|
Communication Ports
|
RS232, RS485
|
|
|
ADAS
|
Built-in
|
|
|
Wireless Transmission
|
3/4G/5G wireless transmission module, EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ect.
Wi-Fi module, 802.11b/g/n,2.4G/5.8G optional. Ethernet: Network aviation head(100M) |
|
|
Position
|
GPS/BD: Positioning, speed detection, time synchronization
|
|
|
Power Supply and Power Consumption
|
Power Supply
|
≤6V ,ACC on; ≥7.5V ,ACC off
|
|
Input Voltage
|
DC:+8V ~ +36V. If voltage is lower than 8V or is higher than 36V for a long time. The device automatically shuts down and enters
the protection mode. |
|
|
Output Voltage
|
+12V@1A; +5V@1A
|
|
|
Power Consumption
|
Max 30W consumption, about 10W in standby mode
|
|
|
Built-in UPS
|
5x7F*2.7V
|
Power on and charge, full for 3 minutes. External power loss, can keep the system working for 7 seconds, finish saving data.
|
|
Operating Environment
|
Temperature
|
preheating: -20℃ ~ +70℃
|
|
|
Humidity
|
8% to 90%
|
|
Dimensions
|
177 (L)x 186.8(W) x 54(H)
|
|
|
Weight
|
Net: 1.25KG
|
|
4G Client Monitoring Platform CMSV6
Our 4G MDVRs are compatible with the CMSV6 fleet management software. If you buy an MDVR with 4G, we will create your private account for you, where you can manage all your devices, even those you will buy in the future. This service is included in our 4G MDVRs: 100% free.
You can GEOLOCATE all your vehicles on maps or satellite photos and WATCH your cameras in real time. You can PLAY recorded videos and DOWNLOAD the video files. CMSV6 also manages ALARM EVENTS with real-time notifications.
Play Footage on PC
These MDVRs record much more than the video on SD card or Hard Disk. Together with the video, all the data detectable by the MDVR, such as date, time, vehicle data and geographical coordinates are saved. With the PC player you can search and play movies along with all vehicle data.
FQA
1. Do you provide the free CMS?
Yes, is free of charge. We will provide you the authorized code after you buy our equipment.
2. What is the minimum requirement to run this software?
CPU 2.5G four core; Memory 8GB; HDD 1TB;
3. Which OS can run this software?
server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both 32bit and 64bit.
4. After we build our own server, can the IP of units be changed remotely?
Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are very pleased to help you.
Below are some screen shot of our CMS:

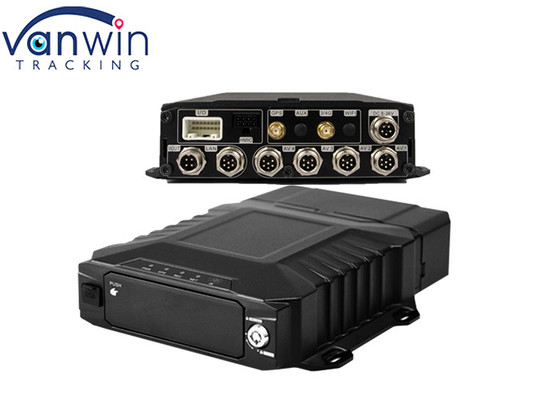

Products Details

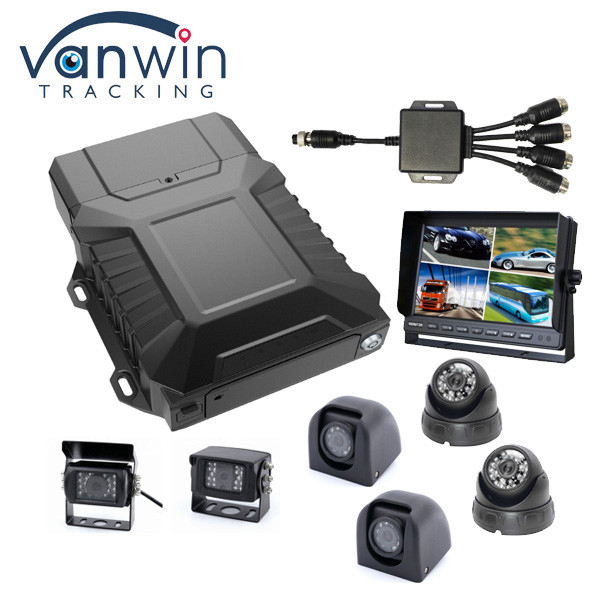

Cameras for Option
