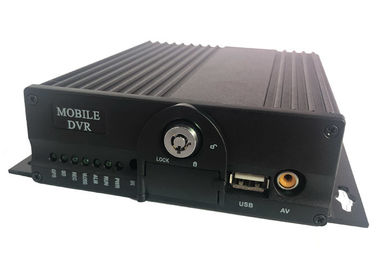

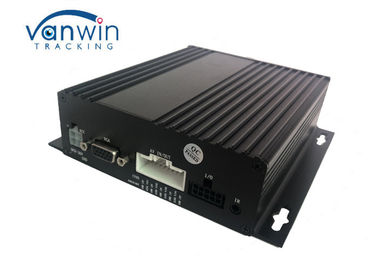

Google map GPS car tracking system 4 channel 1080P mobile dvr support dual sd cards 256g

Google map GPS car tracking system 4 channel 1080P mobile dvr support dual sd cards 256g

    • Google map GPS car tracking system 4 channel 1080P mobile dvr support dual sd cards 256g
    • Google map GPS car tracking system 4 channel 1080P mobile dvr support dual sd cards 256g
    • Google map GPS car tracking system 4 channel 1080P mobile dvr support dual sd cards 256g
  • Google map GPS car tracking system 4 channel 1080P mobile dvr support dual sd cards 256g

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW616HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month, Google map GPS car tracking system 4 channel 1080P mobile dvr support dual sd cards 256g
    Contact Now
    Detailed Product Description
    Features: 3G And GPS Optional,basic Monitoring Power Supply: 8V-36V
    CVBS: Support Storage Capacity: 2*256G SD Cards
    Cameras: Analog/720P/960P/1080P Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
    Dimensions: 140*116*35MM OEM/ODM: Support
    Alarm Inputs: 4CH Level Alarm Inputs Weight: 0.75kg

    Google map GPS car tracking system 4 channel 1080P mobile dvr support dual sd cards 256g

    It is a small device to monitor the vehicles what happens inside and outside.

    1. The MDVR case comes with very strong aluminum alloy, very strong and sturdy.
    2. It can support both AHD/Analog Camera, 1080P/720P/D1 recording.
    3. The MDVR increases Video Protection Trchnology, UPS technology and World Class Anti-Vibration Technology to protect the DATA when accident. It's very important for the vehicle security monitoring.
    4. G-sensor function record the crash level in car accident, thus for people to analyse the reason of car accident.

    The complete system includes

    1. One 4CH 1080P SD Card Mobile DVR with 4G GPS WIFI for Option
    2. 4PCS 1080P/960P/720P Car cameras
    3. Extension cables
    4. Car monitor for Option


    Main Features

    1. H.264 video compression, multi code stream.
    2. Support 4CH 1080P/720P HD real-time video inputs.
    3. With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite,

    SD card data loss and SD card couldn’t be found, keep the data completed and stable.
    4. 8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.
    5. Support Dual SD cards slots, at maximum 256G for single SD card
    6. With watchdog abnormal restart protection function, it can better protect the machine and video.
    7. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
    8. Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
    9. Support 4CH alarming inputs
    10. Support voice broadcast, intercom and text schedule dispatch.
    11. Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
    12. With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
    13. Support all vehicles, including bus, taxi, truck, school bus, etc.

    Main Specifications


      Specifications
    Operating System Linux
    Language English, Chinese or Customized language.
    Video Compression H.264
    OSD Support for time, date, vehicle ID, image, etc.
    GUI OSD Interface Can external connect to LCD and set the system specifications by remote

    Video
    and Recording

    Video Input

    4CH 720P AHD/Analog/Compound video input, aviation connector,
    1.0Vp-p, 75Ω

    Video Output

    1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.
    Support 1CH full screen and 4CH division.

    Preview

    Single/4CH Pictures Preview, support full screen of event trigger or
    back view of car reversing

    Recording
    Resolution

    Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 1080P

    Recording
    Quality

    Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest.
    Video Rate

    PAL:100 fps,CCIR625line,50 scenes
    NTSC:120 fps,CCIR525line,60 scenes
    CIF:256Kbps - 1.5Mbps,8 grades image quality for optional
    HD1:600Kbps - 2.5Mbps,8 grades image quality for optional
    D1:800Kbps - 3Mbps,8 grades image quality for optional
    720P:800Kbps - 4Mbps,8 grades image quality for optional

    Recording Mode

    Default automatic video recording, support ignition video recording,
    schedule video recording, alarm video recording, etc

    Audio Audio Input 4CH Aviation connector inputs
    Audio Output 1CH Aviation connector output,
    Compression format G.726, Speed for 8KB/s
    Alarm Input 4CH level alarm inputs
    Video Storage Storage Support at maximum 1*256G high capacity SD card

    Upgrade
    Method

    Support SD card local upgrade, remote upgrade automatically
    File Format H.264 general video format
    File System FAT32 exclusive file system
    Video Playback Video Search Search recorded video files by recording time and recording method
    Playback Support at max 4 channel synchronous playback, suspend, forward, backward
    Support 2/4/8/16 times speed forward or backward
    Security Management User Password or administrator password management, support screen locked
    Expansion functions Series port expansion Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc

    Power and
    Consumption

    Power Management

    Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc


    Power and Consumption Input Voltage DC:+8V - +36V
    Output Voltage +12V/1.5A,+5V/1.5A
    Consumption Normal working < 14W, standby < 0.5W
    Working environment Temperature -30℃ - +70℃
    Humidity 20% - 80%
    SD Card Type Series Dimension 140*116*35MM
    Weight

    0.75KG



    Google map GPS car tracking system 4 channel 1080P mobile dvr support dual sd cards 256g
