AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor

AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor
AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor

Large Image :  AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW619HD-GSW
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month; AHD 720P 960P HDD SD card mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor

AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor

Description
Power Supply: 8~36V Storage Capacity: HDD/SSD, Can Support 2TB
Functions: 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port Software Support: Client, Server, Playback Software
Accessories: HDD, Cameras, Extension Cables, Monitor, Sound Pik-up Weight: 2200g
Network: WCDMA, CDMA2000, TDD-LTE, FDD-LTE IR Remote Cotrol: Support
Tackback Device: Support Oil Sensor: Support
High Light:

3g cctv dvr

,

3g h.264 dvr

   AHD 720P 960P HDD SD card mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor



The complete kit:


1. One MDVR with 3G GPS WIFI G-sensor for Option
2. 1~4 cameras with extension cables
3. One monitor for the driver
4. HDD 500GB/1TB/2TB
5. Micphone, Talkback device, Panic button

1. Standard configuration
MDVR host 1pc
Power cable 1pc
I/O Cable 1pc
Standard cables 5pcs
Remote control 1pc
keys 1pc
3G/4G Antenna 1pc
WIFI Antenna 1pc
GPS Antenna 1pc
User manual 1pc

2. Optional configuration
Cameras
LCD monitor
Extension cables
Storage card
Talkback device/Micphone

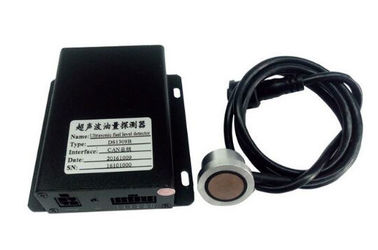

Oil sensor/People Counter and ect.


Main Features



4CH, Support 4 cameras

H.264 compression format

64GB SD Card

2.5“ SATA 2TB Hard disk

GPS tracking

3G remote control

Built-in WIFI for option

6 alarm input, 1 alarm output

2 way intercom

Remote oil&power cut-off

Mirror recording in SD card

Patent UPS continuously working to protect data upon sudden power-off

Customized GPS data format sending(optional)

Built-in Heater(optional)

Lockable, metal HDD handle, protect HDD efficiently

Watermark and Time/Date stamp in exported images

RS232/485 interface;

Wide applications: this MDVR is used for bus, trucks, trailors, cargo, van, vehicles, forklift, car...



Specification



Item

Description

OS

Linux

Graphics Operation Interface

System parameters can be set through external display and remote controller

Security Management

2-level management for user password, administrator password, supporting encrypted transmission

Video and Preview

Video Input, Output

4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

OSD

Character superposition function, information superposition of time and date, device ID and GPS, etc.

Video Compression Format

Compression coding. Applying hisilicon hi-performance processor.

Dual-Stream

Supported

Preview Function

Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images

Frame Rate

PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

Resolution

CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most

Quality

Grade 1 to grade 5 for selection (descending)

Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio

Audio Input, Output

4-channel input, 1-channel output

Compression Format

G.726 coding

Recording

Storage Medium

Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

File Format/ System

ASF/FAT32

Video Strategies

Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

Video Search

Searching by time, type, storage device and other conditions

Video Playback

Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

Alarm

Alarm Input/ Output

6-channel on/off signal alarm input, 1-channel on/off signal alarm output

Alarm Recording

Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

Storage Space Alarm

Supporting settings for alarm of storage space

Function Alarm

GPS overspeed alarm, acceleration alarm, motion detection alarm

Communication Ports

RS232, RJ45 10M/100M self-adaptable network interface

Wireless Transmission (Optional)

Supporting Wi-Fi;

GPS (Optional)

Supporting external GPS

PTZ Control

Supporting PTZ control realized by local;

Parameter Configuration

Supporting parameter configuration functions for mobile DVR coding channel;

G-Sensor

Embedded

System Upgrading

Supporting SD card, hard drive upgrading and remote upgrading

Power Supply and Power Consumption

Power Supply

1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage

DC:+8V ~ +36V

Output Voltage

+12V@4*0.5A; +5V@0.5A

Power-off Protection

With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

Power Consumption

<10W in normal operation; <0.5W in standby mode

Operating Environment

Temperature

Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

Humidity

10% to 95%

Dimensions

160(W) x62(H) x200(D) mm.

Weight

Net: 2200g, Gross: 3500g





It can support remote online monitoring by computer and Mobile APP.

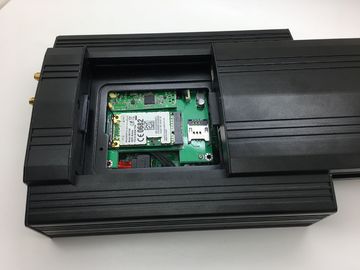

AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor 0

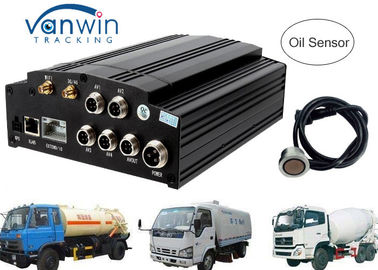

AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor 1







AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor 2

                                                                        Back View



AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor 3

                                                                              Side View

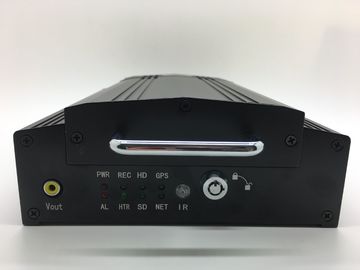

AHD 720P 960P HDD SD card 3G Mobile DVR / MDVR 4 channel dvr integrate with Oil Sensor 4



                                                                  Front View





If you're interested in the system above, please be free to get the high-quality solution and system with us.
