Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W

Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W
Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W
Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W

Large Image :  Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-362
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs per month

Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W

Description
Car Make: Truck, Bus, Heavy Duty, Trailer And Ect. Image Sensor: CMOS, CCD, CMOS And CCD, AHD 1080P, 1/3" 1.3 Mega Pixels CMOS
Feature: Waterproof, Dustproof, Anti-corrosion Lens: 1.5MM, 1.98MM, 2.33MM
Waterproof: Yes, IP69K IR Lights: 6 IR Lights
TV System: PAL Or NTSC Warranty: 12 Months
High Light:

2.0 Megapixel Truck Reverse Camera

,

2.33MM Lens Truck Reverse Camera

,

2W Waterproof Side View Camera

Private customized Wide Angle Waterproof mini Truck Reverse Side View Camera



Main Features

★ Support Coaxial HD output, high resolution achieve to 720P/1080P
★ 3M IR Distance, Auto color to black switching function,achiveing the day and night surveillance
★ super wide angle 170°,no adjustment, no blind spot
★ Conform to IP69K waterproof grade desigh, high reliability
★ Side or Rear view camera,commonly use in schoolbus,bus,Van,fire truck vehicles



Main Specifications



Image sensor CMOS Starlight CMOS CMOS
Horizontal Resolution 1.3Megapixel 1.3Megapixel 2.0Megapixel
TV system PAL/NTSC PAL/NTSC PAL/NTSC
Effective Pixel 1280(H)*960(V) 1280(H)*960(V) 1920(H)*1080(V)
Minimum Illumination Color 0.1Lux,0 Lux with IR Color 0.01Lux,0 Lux with IR Color 0.05Lux,0 Lux with IR
S/N ratio ≥45dB ≥60dB ≥56dB
Day/Night mode EXT(default),AUTO,COLOR,B/W,Support IR CUT switching
sync system Internal
Backlight compensation AUTO
White balance AUTO
Electronic shutter AUTO/1/50(1/60)-1(50,000Sec)
Video output AHD(default)Standard,720P output AHD(default)Standard,1080P output
lens 170°/150°/120°/More optional 150°/120°/More optional
IR leds Qty 5pcs LEDs
IR distance ≤3 meters
waterproof grade IP69K
Operating Temp. -20°C~+70°C, RH95%MAX
Storage Temp -30°C~+80°C, RH95%MAX
Power supply DC12V±10%
Power consumption ≤2W
Dimension 73.7*54*41(mm)





There is BNC, 4PIN, RCA connector for option

Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W 0

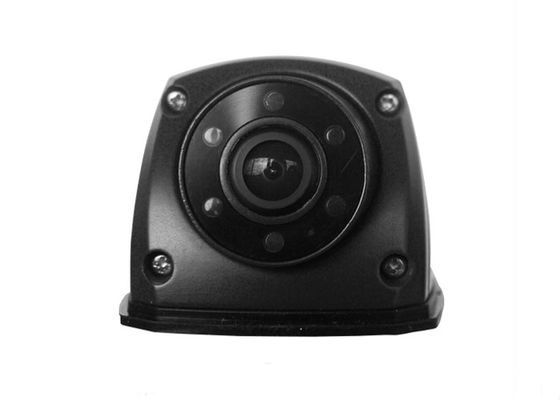

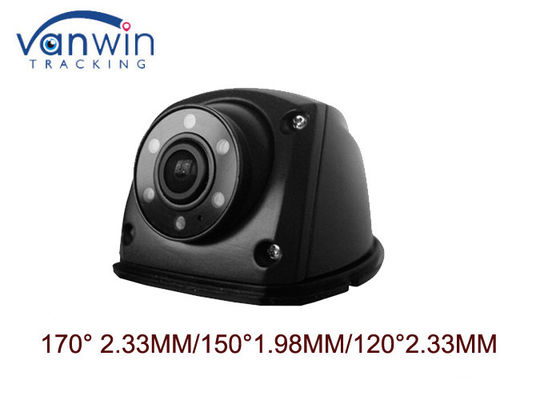

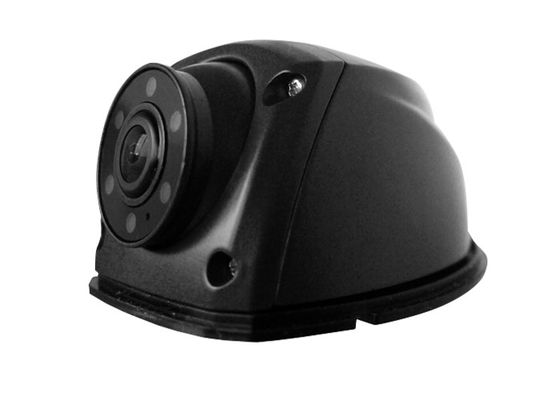

It's our private mold which can support different lens and angle and there are different colors for option.

Waterproof 2.33MM Lens 2.0 Megapixel Truck Reverse Camera 2W 1
