Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR

Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR

    • Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR
    • Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR
    • Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR
    • Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR
    • Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR
  • Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-106

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral carton box package by default
    Delivery Time: 2-3 days for samples, 5-10 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000pcs per month, Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR
    Contact Now
    Detailed Product Description
    Type: Taxi Camera Sensor: 1/4 SONY CCD
    TV System: PAL Or NTSC Voltage: DC12
    Waterproof: IP66-IP68 Warranty: 12 Months
    Resolution: Max Support 600TVL Night Vision: Yes

     Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR





         The car hidden camera is very popular for taxi or small cars as sideview or frontview, max support 600TVL/960P AHD 1.3MP and very clear, also can see very clear at night.



    Main Features





    1. Max Sony CCD 600TVL/ AHD 960P 1.3MP for optional



    2. Over 170 degree wide angle monitoring



    3. Very small size with private mould, only we can produce it



    4. Very strong and stable quality



    5. One of best selling cameras



    6. Cabale jack: aviation/BNC/RCA optional;



    7. PAL/NTSC optional, DC12V power supply;



    Specifications



    TV System NTSC/PAL
    Sensor 1/4 SONY CCD
    Effective Pixels PAL:500(H)x582(V) NTSC510(H)x492(V)
    Horizontal Sync Frequency PAL:15625kHz NTSC:15734kHz
    Vertical Sync Frequency PAL:50 Hz NTSC:60 Hz
    Exposure A.E: auto electronics shutter 1/60s(1/50s)~1/100000s
    Sync.System Internal
    AGC Auto
    BLC Auto
    Resolution 480TVL/PAL,420TVL/NTSC
    Video out 1.0Vp-p composite video. 75(ohm) load
    S/N Ratio ≥48dB
    Current Consumption Max.150mA
    Power Supply DC12V±10%
    Operating Temperature -30℃-70℃,RH95%MAX
    Storage Temperature -40℃-85℃,RH95%MAX
    Lens Horizontal Angel/ Built-in  120° 90° 75°
    Built-in Lens f:1.65mm f:2.8mm f:3.15mm
    Water-proof  IP66-IP68
    Minimum Illumination 0 Lux (with 8Pcs Led ON)





    Application

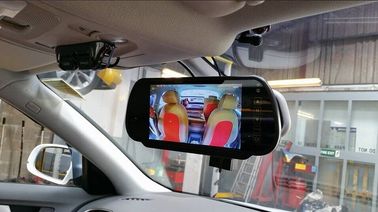

    1. Taxi or small car, bus for sideview or frontview

    2. MDVR or rearview camera





    Chips Available for Option

    1. Sharp CCD 420TVL
    2. Sony  CCD 480TVL
    3. Sony CCD 600TVL
    4. AHD 720P 1.0MP/AHD 960P 1.3MP



    There are three connectors for the taxi security camera

    1. 4Pin Aviat connector
    2. DC+RCA connector
    3. CCTV security BNC connector



    Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR

    Packing





    Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR



    Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR

    Sturdy Mini Sony CCD 600TVL Wide Angle 720P Mini Car Hidden Taxi Camera for MDVR
