Bus High Accuracy Automatic Passenger Counter Bus Vehicle Camera

Product Details:

Place of Origin: Guangdong,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-920G

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5,0000 pcs per month
Get Best Price Contact Now

Detail Information

Function: APP Control Car Fitment: Universal
Installation: Bracket Lens: 90°-120°
Type: Video Recorder Voltage: 12-24v
Product Name: Bus Passenger Counting Application: Car Driving Video Recorder
Video Output: 4-8CH System: PAL/NTSC
Highlight:

bus automatic passenger counter

,

high accuracy bus people counter

,

bus vehicle counting camera

Product Description

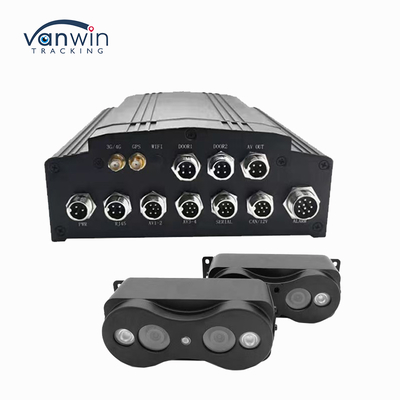

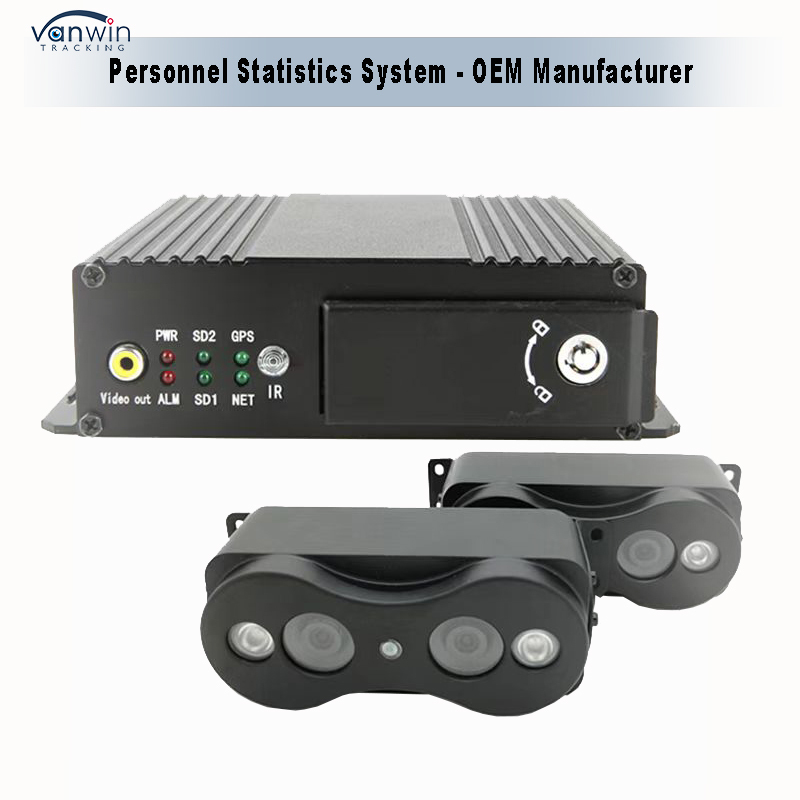

Bus High Accuracy Automatic Passenger Counter Bus Vehicle Camera

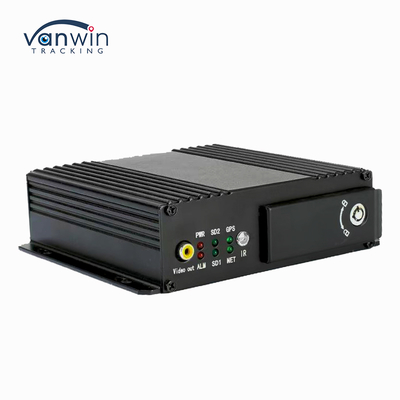

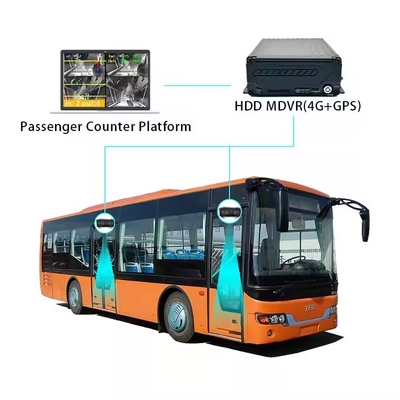

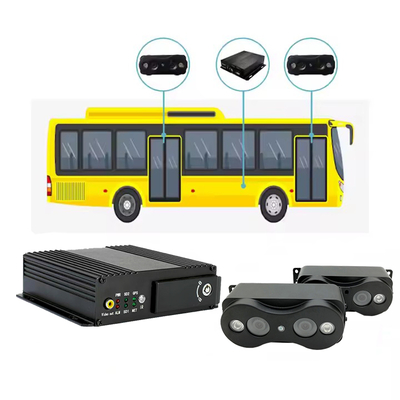

3G/4G Realtime Video GPS Tracking Mobile DVR with Bus People Counter

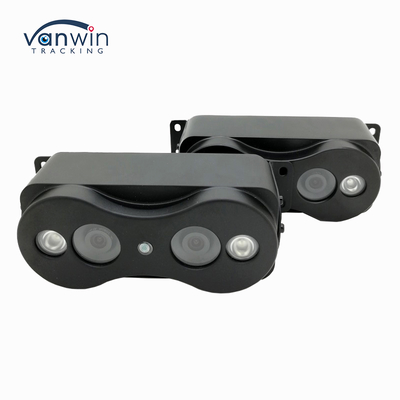

1. The Video Counting Bus People Counter with binocular lens is developed based on
advanced Video Counting&image analysis technology.

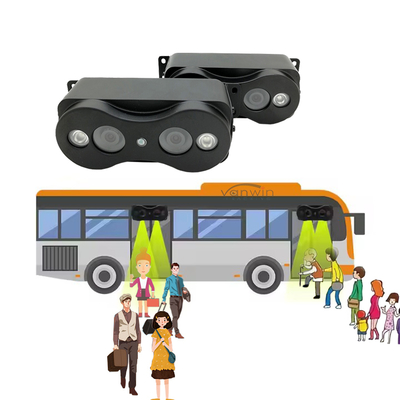

2. It judges passenger's number by capturing human characteristics such as head, shoulders, body and body's
get-on& get-off, Movement characteristics and obtains accurate counting results by high-speed DSP intelligent algorithm.

3. After many year's improment and development, the core calculation has been successfully used in different application
scenarios and vehicles. Normally the accuracy of statistics is over 98% and with crowded circumstances, the accuracy is over 98%.

Specification
Image Sensor
1/3 SONY
CCD TV System
PAL/NTSC
TV Lines
700TVL
Len
960*576 Pixel,3.6 mm (2.8mm/3.6mm/4mm/6mm Optional)
Detecting Door Width Range
0.4M~1.2M
Video Output Interface
Composite video output, 75Ω 1Vp-p
Power Supply
DC12V



Bus High Accuracy Automatic Passenger Counter Bus Vehicle Camera 0

Bus High Accuracy Automatic Passenger Counter Bus Vehicle Camera 1Bus High Accuracy Automatic Passenger Counter Bus Vehicle Camera 2Bus High Accuracy Automatic Passenger Counter Bus Vehicle Camera 3Bus High Accuracy Automatic Passenger Counter Bus Vehicle Camera 4

About Us:

We are a one-stop provider of vehicle-mounted monitoring systems dedicated to addressing vehicle safety,

with fifteen years of professional experience. Our products comprehensively cover vehicle recorders,

monitors, vehicle cameras, dash cams, and various expansion devices like fuel sensors, temperature

sensors, fireproof boxes, alarms, tire pressure sensors and so on. We have provided customized solutions for

hundreds of different customers in various application scenarios around the world, earning unanimous praise from

our clients. We always uphold a sincere, kind, and enthusiastic service attitude, considering all aspects for our

customers and bringing them value far beyond the products themselves.

Bus High Accuracy Automatic Passenger Counter Bus Vehicle Camera 5Bus High Accuracy Automatic Passenger Counter Bus Vehicle Camera 6


FAQ:

1. Do you provide the free CMS?

Yes, is free of charge. We will provide you the authorized code after you buy our equipment.



2. What is the minimum requirement to run this software?

CPU 2.5G four core; Memory 8GB; HDD 1TB;



3. Which OS can run this software?

server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both 32bit and 64bit.



4. After we build our own server, can the IP of units be changed remotely?

Actually we can provide the protocol package for you to develop your own CMS.

You could remotely change the settings of your vehicles, this is no problem.
