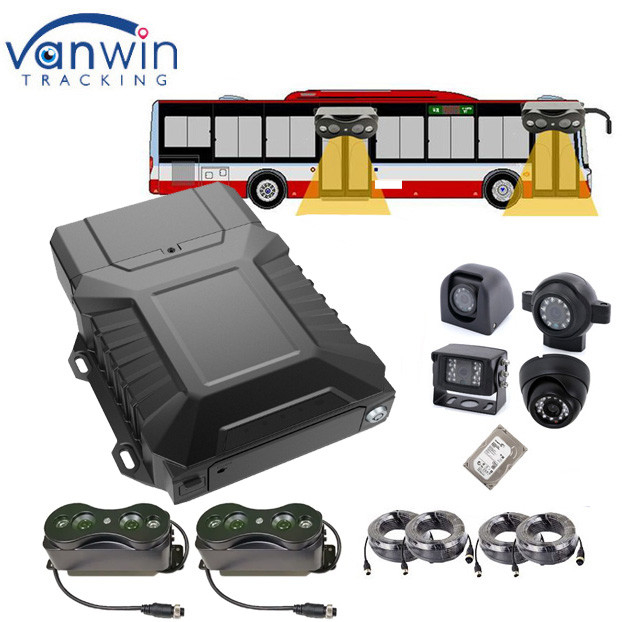

WIFI 3G 4G People Counter Camera Automatic Bus Passenger Counter
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW9208C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD700 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15 days upon payment |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Power Input: | DC 8V~36V | Video Compression: | H. 264/H265 |
|---|---|---|---|
| Storage: | HDD+SD, Max 2TB+256GB | Resolution: | Support 1080P/720P/D1/CIF |
| Type: | Automatic Bus Passenger Counter With MDVR | Product Name: | Automatic Bus Passenger Counter |
| Video Recording: | Support 4 Channel White/black Counter's Video Input+4 Channel Normal Video Inputs | Extensive Functions: | Fuel Tank Monitoring, Driving Turning Monitoring, Blindspot Alarm |
| Alarm Input: | 4CH Alarm Inputs | Warranty: | 18 Months |
| Applicable Vehicles Type: | Public Bus | Rs485: | Available |
| High Light: | 3G 4G People Counter Camera,Camera Automatic Bus Passenger Counter |
||
Product Description
People Counter Camera System automatic passenger counter WIFI 3G/4G bus passenger counter
Overview
The infrared light inside the passenger flow detection camera can adapt to any light environment, even in the all black enviroment still work.
Built-in independent digital I/O port, which can be connected to other devices or open and close devices.
The number record of people in and out can be transmitted in real time through 3G/4G network to collect the passenger flow data of each station in real time, transmit it to the passenger flow collection system of bus group, and then transmit it to the traffic integrated information platform.
Product Features
1. Industrial-grade design with special vehicle port for reliable working on harsh environment.
2. Wide voltage support over-load ,short circuit ,reverse connect protection.
3. UPS power for continual work.
4. Support hard disk 2TB+ SD card 256G for record storage.
5. 4G/WIFI transmit; multiple grade image quality transmitting option.
6. GPS/BD/GLONASS global positioning.
7. Powerful software platform including remote preview, playback, broadcast, talk and more.
8. IP communication.
9. PTT group talk function.
10. Support multiple serial port extension.
11. Could be built-in ADAS.

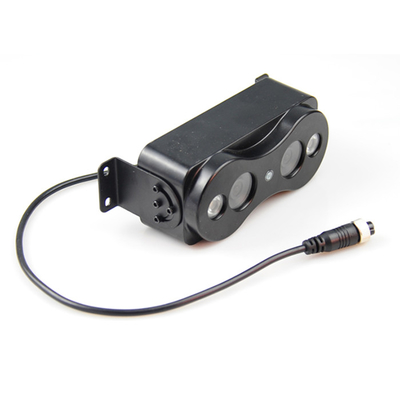

Counting Camera Specifications
Product Functions
a) Passenger-Counting
a1 Each camera can count two directions of entering and leaving at the same time
a2 Distinguish front and brack door
b) Turn on/off
b1 Support ACC ignition power on, regular power on, trigger boot, remote boot.
b2 Support ACC delay shutdown, timed shutdown, trigger shutdown, remote shutdown.
c) Local monitoring function
c1 Support local output 1/2/4/5/8 screen live preview, trigger single channel screen preview by alarm.
c2 Support motion detection, video loss, video power short detection detection.
c3 Support local audio and video playback, support fast forward and rewind function.
d) Local audio and video recording storage
d1 Support a 2.5" SATA hard drive and a SD card.
d2 The file format is compatible with Windows systems and uses hard disk space pre-segmentation.
e) Data backup
e1 Support USB data export backup.
e2 Support bare disk pull out data backup.
e3 Support remote platform data download backup.
f) Extension
f1 Local support for RS485, support for a variety of peripheral sensor access.
f2 Local support for RS232, support for a variety of peripheral sensor access.
f3 Support for external serial port expansion boxes.
g) Remote monitoring function
g1 Support 10M/100M adaptive network interface.
g2 Support three types of 3G systems: WCDMA, EVDO, and TD-SCDMA, and twoT types of 4G system D-LTE and FDD-LTE.
g3 Support WIFI function, 2.4/5.8G optional.
g4 Support VMS, CMSV6 platform, provide SDK, and access more platforms.
g5 Supports protocols such as DHCP, DNS, NTP, and SADP.
g6 Support remote preview and video recording.
g7 Support remote video and audio playback.
g8 Support WIFI automatic download.
g9 Support remote intercom between platform and device.
g10 Supports PTT calls between devices and devices.
g11 Support remote acquisition and configuration parameters, support remote export and import of device parameters.
g12 Support remote access to device operating status, system log and alarm status.
g13 Support remotely format hard disk, upgrade program, restart and other system maintenance operations.
g14 Support remote search, playback and download.
g15 Support RS-232 remote transmission.

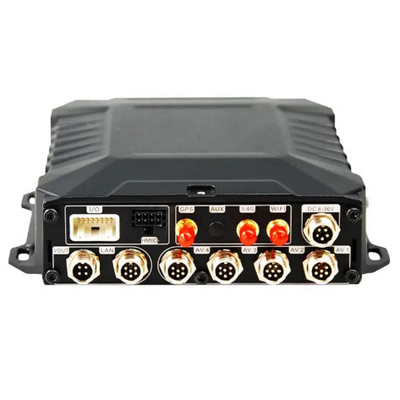

Product Photos

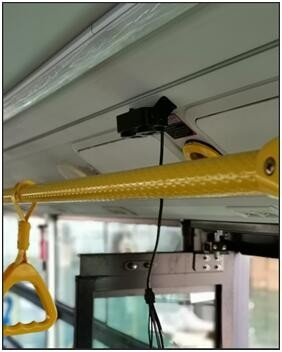

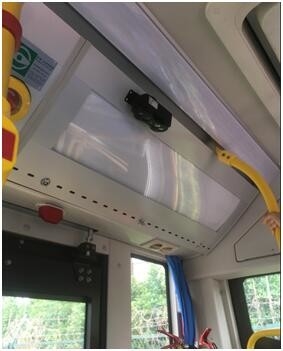

Application
