4G GPS Stereoscopic Vision Bus People Counter System With Dual Sd Card WIFI
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW9604C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD300 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Video Compression: | H. 264 | Storage: | Dual SD Card, Max 256GB*2 |
|---|---|---|---|
| Resolution: | Support 1080P/720P/D1/CIF | Warranty: | 18 Months |
| Type: | Bus People Counter System | Power Input: | DC 8V~36V |
| Gps: | YES | Playback: | Single/4 Pictures/ Customized |
| Language: | English/Chinese/Russian | Alarm Input: | 4CH Alarm Inputs |
| Video Recording: | Can Record The White/black Video Of Binocular Cameras' | Applicable Vehicles Type: | Public Bus |
| Extensive Functions: | Fuel Tank Monitoring, Driving Turning Monitoring, Blindspot Alarm | ||
| High Light: | 4G GPS Bus People Counter,Stereoscopic Vision Bus People Counter,DC 8V Bus People Counter |
||
Product Description
4G GPS Stereoscopic vision bus people counter system with dual sd card WIFI for public bus
Product Features
a) Passenger-Counting
a1 Each camera can count two directions of entering and leaving at the same time
a2 Distinguish front and brack door
b) Turn on/off
b1 Support ACC ignition power on, regular power on, trigger boot, remote boot.
b2 Support ACC delay shutdown, timed shutdown, trigger shutdown, remote shutdown.
c) Local monitoring function
c1 Support local output 1/2/4/5/8 screen live preview, trigger single channel screen preview by alarm.
c2 Support motion detection, video loss, video power short detection detection.
c3 Support local audio and video playback, support fast forward and rewind function.
d) Local audio and video recording storage
d1 Support dual SD card.
d2 The file format is compatible with Windows systems and uses hard disk space pre-segmentation.
e) Data backup
e1 Support USB data export backup.
e2 Support bare disk pull out data backup.
e3 Support remote platform data download backup.
f) Extension
f1 Local support for RS485, support for a variety of peripheral sensor access.
f2 Local support for RS232, support for a variety of peripheral sensor access.
f3 Support for external serial port expansion boxes.
g) Remote monitoring function
g1 Support 10M/100M adaptive network interface.
g2 Support three types of 3G/4G systems: WCDMA, EVDO, and TD-SCDMA, and twoT types of 4G system D-LTE and FDD-LTE.
g3 Support WIFI function, 2.4/5.8G optional.
g4 Support VMS, CMSV6 platform, provide SDK, and access more platforms.
g5 Supports protocols such as DHCP, DNS, NTP, and SADP.
g6 Support remote preview and video recording.
g7 Support remote video and audio playback.
g8 Support WIFI automatic download.
g9 Support remote intercom between platform and device.
g10 Supports PTT calls between devices and devices.
g11 Support remote acquisition and configuration parameters, support remote export and import of device parameters.
g12 Support remote access to device operating status, system log and alarm status.
g13 Support remotely format hard disk, upgrade program, restart and other system maintenance operations.
g14 Support remote search, playback and download.
g15 Support RS-232 remote transmission.
Binocular Camera Parameter
| Item | Parameter |
| OS | Embedded Linux OS |
| Main Freq | Single core 1.2G |
| Mem | 512MB |
| Accuracy Rate | 95% |
| Video input | 2 Ch |
| Ports | RS485,RS232 |
| Rated power | 10W |
| Voltage | 8--36V |
| Temperature | -35°--75° |
| Protection | IP42 |
| Humidity | <95% |

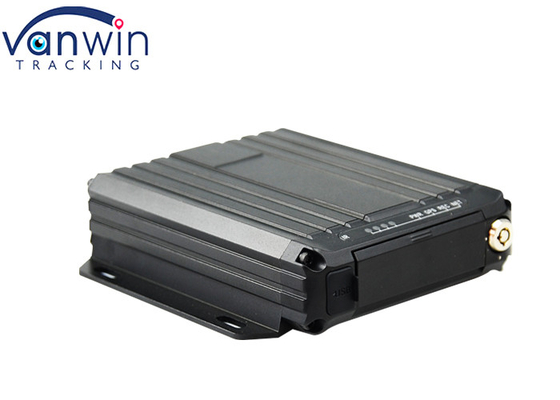

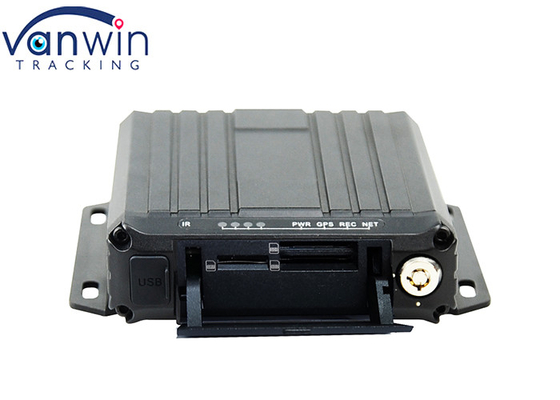

Product Photos

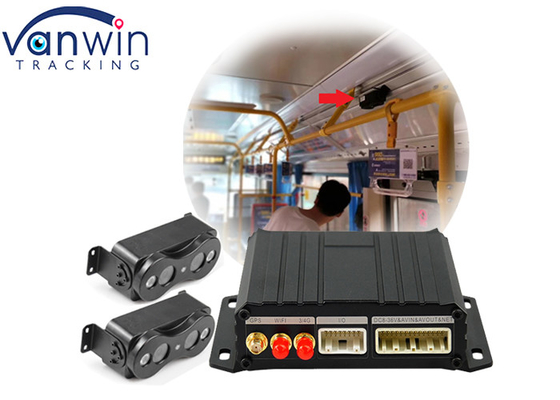

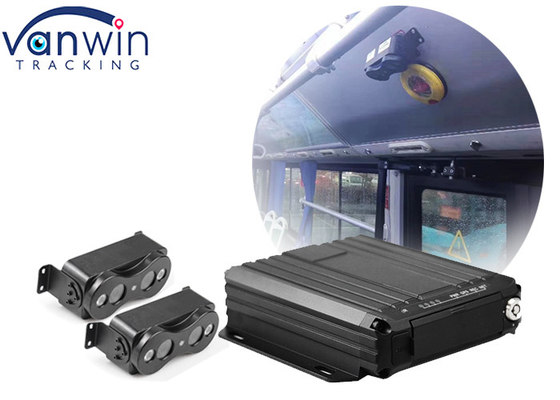

Application
Platform
