h 264 Full D1 reset password 8 channel Car dvr camera security system with Good Quality

Basic Information
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW610GSW
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month;
Power Supply: 8V-36V Wide Voltage Storage Capacity: HDD/SSD, Can Support 2TB
Software Support: Client,Server,Playback Software Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
Quality: The World Class Anti-vibration Technology System Upgrading: Supporting SD Card, Hard Drive Upgrading And Remote Upgrading
Cameras: 1~8 Analog Cameras WIFI Download: Support
Dimensions: 160(W) X62(H) X200(D) Mm Operating System: Linux
Product Name: 8ch Hdd Mdvr Storage: 2.5 Inch Sata Hard Disk 1TB / 2TB
High Light:

8ch h.264 dvr


digital video recorder

H 264 Full D1 reset password 8 channel Car dvr camera security system with Good Quality


The MDVR supports 8 channel FULL D1 video recording, 3G/4G wireless live video transmission

through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45,

RS232&485, I/O port interface for multiple outer device integration. Its storage (max 2TB) lasts more than 80 days recording.

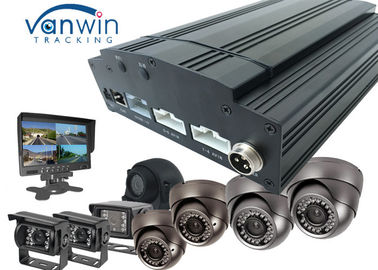

The 8 channel dvr security system includes:

1. One MDVR with 3G GPS WIFI G-sensor for Option
2. 8 cameras with extension cables
3. One monitor for the driver
4. HDD 500GB/1TB/2TB
5. Micphone, Talkback device, Panic button
Model No. 8ch basic HDD Mobile DVR 8CH HDD Mobile DVR with GPS 8CH HDD MDVR with 3G GPS 8CH HDD MDVR with 4G GPS 8CH HDD MDVR with 4G GPS WIFI
  VW610 VW610S VW610S-3G VW610S-4G VW610SW-4G


8 channel dvr security system Main Features


3) Supports max 2TB HDD and SD card;

4) Motion Detect/ G-Sensor/ Alarm Record/ High Speed/ Low Speed Alarm;

5) 6 I/O Alarm Input & 1 Alarm Output;

6) UPS Technology (3~5s Power-off delay after power cut);

7) Max. 4 Hours Power-off Delay after ACC-off;

8) GPS Tracking

9) 3G/ 4G Remote View on PC or Smartphone;

10) Supports talkback function (2 Ways Audio);

11) Geo-Fence/ Remote Engine Stopping/ Remote Oil Cut, etc;

12) Welcome OEM ODM for VPN MDVR or 3G DVR with RFID , We Have More Examples for Customization.


h 264 Full D1 reset password 8 channel Car dvr camera security system with Good Quality 0h 264 Full D1 reset password 8 channel Car dvr camera security system with Good Quality 1

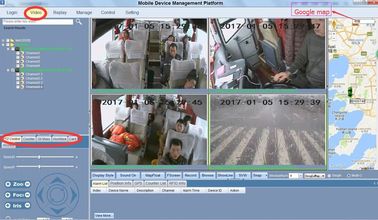

8 channel dvr security system Online Monitoring


It suppot CMS for computer and mobile phone.




1. Q: Does the MDVR support Hard drive and SD card?

A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

The storage capacity can be from 32GB to 2TB.


2.Q: Is it difficult to install MDVR into the vehicle?

A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.


3. Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

is it available?

A: Definitely yes!

The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

PTZ camera, and so on.


4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

A: Yes, we have SDK ready and welcome your OEM customized order!


5. Q: I ever bought MDVR from other supplier. But the anti-vibration is not strong. Now the MDVR works bad and video recording is not good. I am adfraid to buy again.

A: This happens. Vehicle Mobile DVR has to stand the rough bumping situation in the vehicle. So it is vital and important for MDVR to have strong anti-vibration struction, design, materials, software and function.

Not many factory can do this well.

We Sodimax factory has realized this shockproof function and our MDVR definitely&stably stand rugged and fast bumping in transit.


6. Q: How about the 3G setting, and the WIFI setting?

A: The setting for MDVR is very important. Most functions need correct setting before use.

The 3G setting depends on the Telecommunication company and rules in local country.

Normally a simple call to your local telecommunication company can know the APN setting.

WIFI setting is more easy. Just input the same data with Wireless router and server.

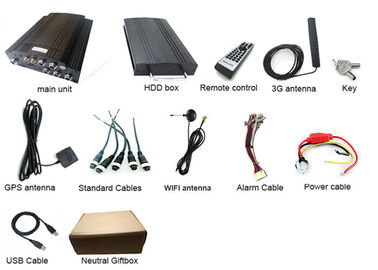

7. Q: Does the MDVR come with accessroy, such as HDD, SD card, Microphone, Camera, Extension cable etc?

A: We have all accessories ready. You can ask us to make the complete quote for one whole set.

Normally the MDVR doesn't include any accessroy. Therefore it is advisable to inform us about your target

accessory. All are can done right here. One-stop-serve purchasing.


8. Q: Can I get a free sample to test before formal order?

A: Yes, you can.

We can provide free sample with 1 month test period.

It will demand some deposit and the delivery(both send and resend) cost is supposed to be on your own side. If the deliver cost is not so high, we recommend this way.

If not, then we do not recommend you do this. Do not forget the import tax as well.





8ch MDVR is widely used for double-decker bus, long lorry, school bus and ect. It also can be used for the office or other industry usage.

h 264 Full D1 reset password 8 channel Car dvr camera security system with Good Quality 2
