Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW619HD-GSW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month;
Get Best Price Contact Now

Detail Information

Power Name: HDD Mobile DVR Storage Capacity: HDD / SSD, Can Support 2TB HDD
Functions: 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port Software Support: Client, Server, Playback Software
Accessories Optional: HDD, Cameras, Extension Cables, Monitor, Sound Pik-up Customization: RFID, APN, IR Port, Softwares, LOGO And Ect.
Network: WCDMA, CDMA200, TDD-LTE, FDD-LTE IR Remote Cotrol: Support
Tackback Device: Support Weight: Net: 2200g, Gross: 3500g
SD Card: Support USB Flash Disk: Support
Highlight:

car digital video recorder

,

hd car dvr

Product Description

4G 1080P HDD Mobile DVR GPS WIFI 3G with Quad Screen RS232 / 485 Interface



Main Features





1. H.264 Video Compression, multiple steam recording, Support 4CH 720P HD video recording, Support 4CH 720P AHD input/ 4CH analog SD camera input/ 2CH HD + 2CH SD mixed input;
2. High quality real time recording, 720P/CIF/HD1/D1 Optional, quality adjustable;
3. Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit         protection, to meet kinds of car application;

4. Support 12VDC/2.5Amp output voltage, power supply for Camera/Screen etc;
5. 1SSD/HDD+1SD Card Support, each max 2TB+128GB,,protect DVR from shock & Dust damage;
6. Watchdog abnormal restart function, protect SD Card and Record;
7. Exclusive File System protect data completeness,prevent SD Card fragment;
8. ACC Delay off, can set 24 hours;
9. Auto Record/Manual Record/Alarm Record/Timed Record etc working mode to meet different               requirements;
10. Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
11. Support GPS/ G-sensor Optional;
12. Optional single RS232 serial port or single RS485 extension
13. 6CH Alarm input (Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
14. 2CH Alarm Output;
15. Support picture snap when alarm
16. Easily Smart GUI Interface, saving time in device setting;
17. Can upgrade the software via SD card/HDD.
18. Stability Aviation plug, easily connecting and high shock proof;

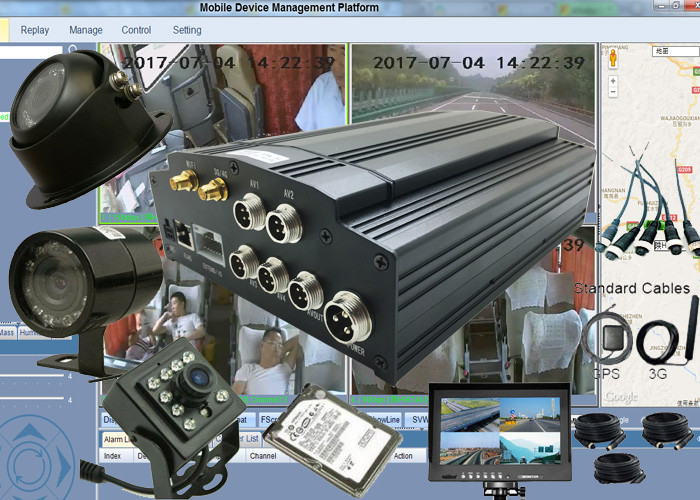

The complete kit:


1. One MDVR with 3G GPS WIFI G-sensor for Option
2. 1~4 cameras with extension cables
3. One monitor for the driver
4. HDD 500GB/1TB/2TB
5. Micphone, Talkback device, Panic button

1. Standard configuration
MDVR host 1pc; Power cable 1pc ; I/O Cable 1pc; Standard cables 5pcs; Remote control 1pc; keys 1pc; 3G/4G Antenna 1pc ; WIFI Antenna 1pc; GPS Antenna 1pc; User manual 1pc

2. Optional configuration
Cameras; LCD monitor; Extension cables; Storage card; Talkback device/Micphone; Oil sensor/People Counter and ect.

4G 1080P HDD Mobile DVR GPS WIFI 3G with Quad Screen RS232 / 485 Interface 0

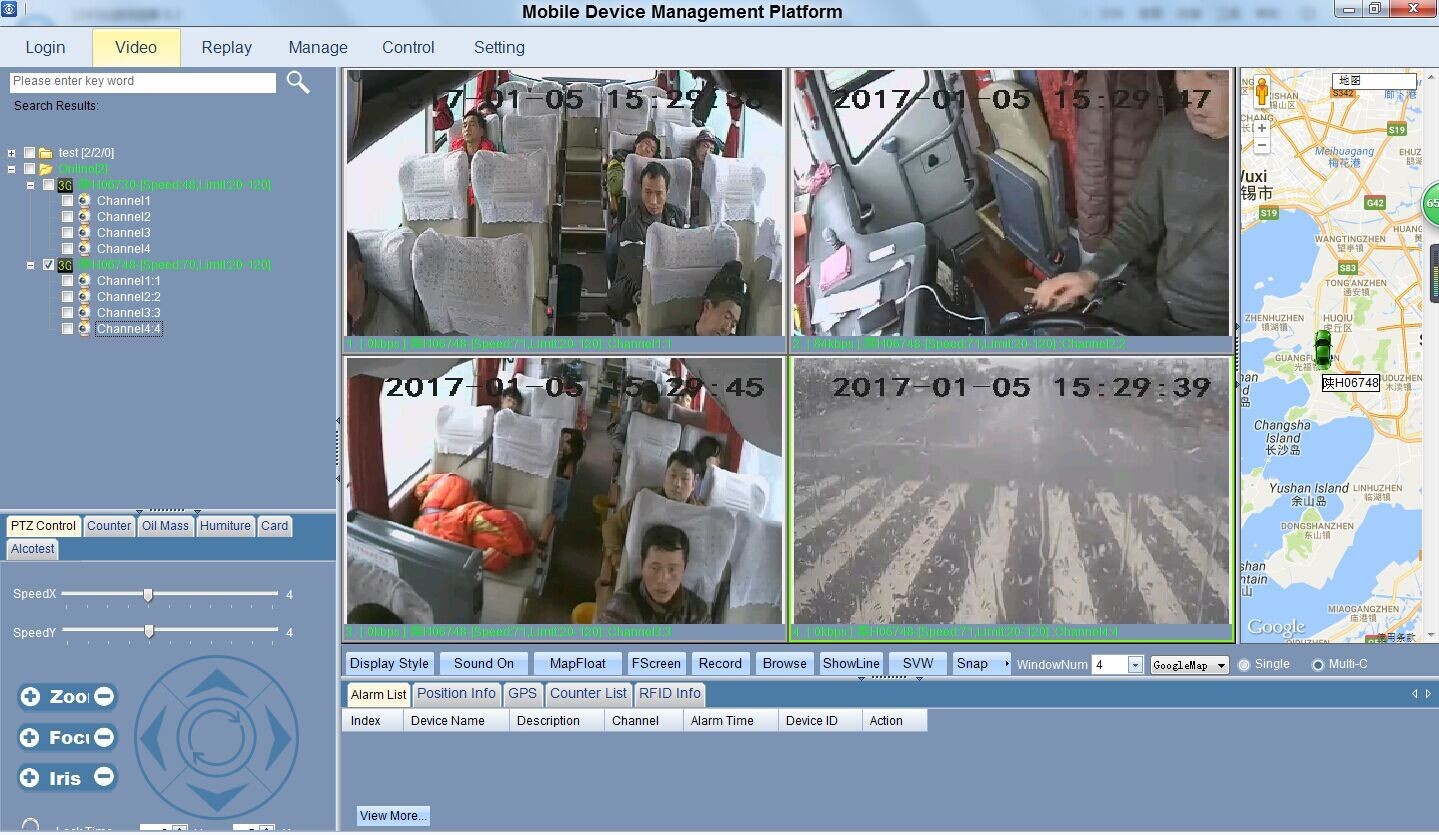

It can support remote online monitoring by computer and Mobile APP.



4G 1080P HDD Mobile DVR GPS WIFI 3G with Quad Screen RS232 / 485 Interface 1





If you're interested in the system above or other vehicle security system, please be free to get the high-quality solution and system with us.
