| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-P04B-4 |
| Minimum Order Quantity: | 1 peice |
| Price: | $2 |
| Packaging Details: | plastic foam packing |
| Delivery Time: | 1-2 days for samples,15-30 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal; M12 4 Pin Female Male Connecter / adaptor for dvr surveillance system From RCA Plug |
| Supply Ability: | 5000 pcs per day |
| Usage: | 4-pin M12 Connector | Function: | Connector / Adapter |
|---|---|---|---|
| Chip Material: | Copper | Material: | Nickel Plating |
| Working Temperature: | -50 To 70 ℃ | Customization: | Yes,welcome |
| Waterproof: | Yes | Power Supply: | AC/DC |
| High Light: | monitor plug adapter,female male connector |
||

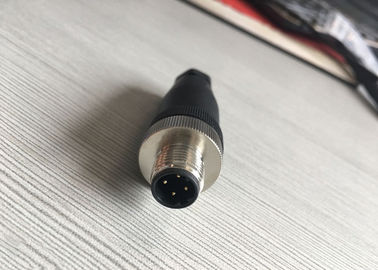

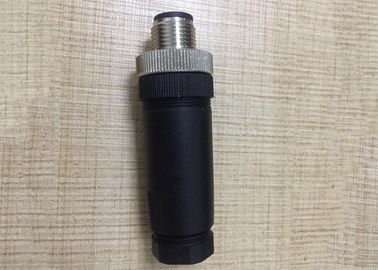

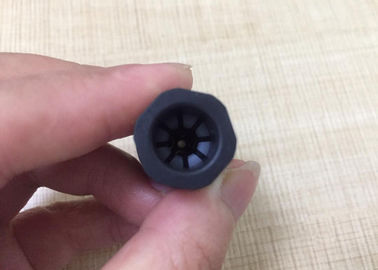

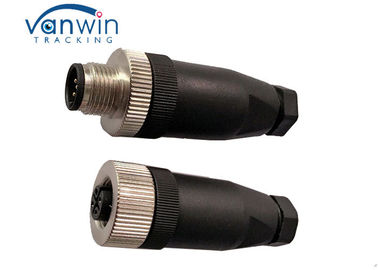

M12 Connector 4P male or female industry waterproof sensor connector / Plug
Technical Characteristics
| Temperature Range |
Solder,screw:-40℃/ +80℃ Screw damp,biatec:-25℃/+80℃ Moulded -25℃/+85℃ |
| Mechnical operation | >100 mating cycles |
|
Rated voltage Impulse voltage |
60V(30V)UL 2500V |
| Pollution degree | 3 |
| Rated current | 4A |
| Contact resistance | ≤8mΩ |
| Insulation resistance | ≥500MΩ |
| Protection degree | IP67 |
| Standard | IEC61076-2-101 |
| Material: | |
| Contact plating | Au(Gold) |
| Material of housing | PBT/PA/CuZn(brass) |
| Cable material | PVC/PUR (cable length customized) |
| Wire gauge |
Solder 0.25mm(AWG24) Screw 0.14mm-0.5mm(AWG26-20) Biatec 0.14mm-0.38mm(AWG26-22) |
| LED/Shielding |
With or without |
