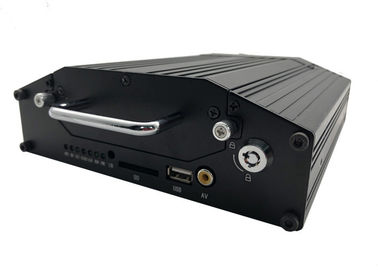

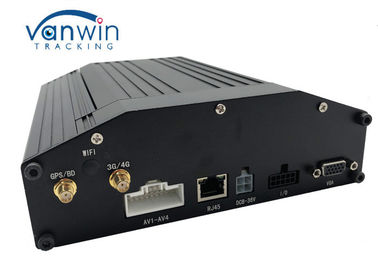

HDD Car 3G Mobile DVR 4 Channel Full HD RJ45 / VGA Output With Mouse Operating

HDD Car 3G Mobile DVR 4 Channel Full HD RJ45 / VGA Output With Mouse Operating

HDD Car 3G Mobile DVR 4 Channel Full HD RJ45 / VGA Output With Mouse Operating

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW660AHD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month; HDD Car 3G Mobile DVR 4 Channel Full HD RJ45 / VGA Output With Mouse Operating
Contact Now
Detailed Product Description
Power Supply: 8V-36V Storage Capacity: HDD/SSD, Can Support 2TB
Basic Function: 4 Cameras Monitoring With 3G/4G Real Time, GPS Tracking,Wi-Fi Software Support: Client, Server, Playback Software
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets System Upgrading: Supporting SD Card, Hard Drive Upgrading And Remote Upgrading
Cameras: 1~4 Analog Or AHD Cameras WIFI Download: Support
Mouse Operating: Support VGA/AV Output: Support
High Light:

3g cctv dvr

,

car mobile dvr

HDD Car 3G Mobile DVR 4 Channel Full HD RJ45 / VGA Output With Mouse Operating

This device is specially designed high price-quality ratio product for the car mobile video monitoring. It adopts embedded processor and embedded Linux operating system, combines the latest technologies in the IT filed such as H.264 audio and video compression/decompression technology. High-capacity HDD record, wireless transmission, GPS location technology and so on. Its structure adopts special anti-vibration technology. The product has good shock resistance, heat resistance and stability, it can be widely applied to various types of vehicles.



The MDVR supports 4 channel FULL 720P video recording, 3G/4G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&485, I/O port interface for multiple outer device integration. Its storage (max 2TB) lasts more than 28 days recording.





The complete system includes:


1. One MDVR with 3G GPS WIFI G-sensor for Option
2. 4 cameras with extension cables
3. One monitor for the driver
4. HDD/SSD 500GB/1TB/2TB
5. Micphone, Talkback device, Panic button



Mobile cctv dvr Datasheet:



Item Parameters Performance



System



Operating language Simplified/En/Traditional

Operator

interface

GUI, support mouse
Safety management User password, Admin password in two layer management system





Video

Input 4 /8 channel composite video input



Output

1 way VGA/1 AV synchronous video output, 1.0Vp-p, 75, support for full screen and 4 way split /9 split
Display Single picture,4 /8pictures
Video standard PALNTSC
Compression H.264 Main profile,compress source : 75 frame D1/S(300 frame CIF/S)
Audio Input 4/8 channel audio input
Output 1 channel audio output
Recording mode Video and audio synchronously recording

Recording & playback



Picture format AHD720p/960H/D1/HD1/CIF Optional
Video bit stream standard ISO14496-10
Video bit rate

CIF: 384Kbps(L),512Kbps(M),768Kbps(H)

HD1: 512Kbps(L),768Kbps(M),1024Kbps(H)

D1: 512Kbps(L),768Kbps(M),1024Kbps(H)

720P/1080P:800Kbps - 4Mbps

Audio bit rate 8KB/s
Data storage Support 128GB SD card/2000GB HDD
Alarm Alarm in 4 alarm in,<4V for low level alarm,>4V for high level alarm
Alarm out 1 alarm out,output level 12V

Port

RS485 port 1 RS485 port
RS232 port 1 RS232 port
Sensor Sensor port Internal ACC port G-Sensor
Software PC playback Playback on PC terminal,analysis the vehicle information on the files.
SW upgrade Upgrade files Support through U disk upgrade / online remote upgrade

















































































Other 1080P Mobile DVR series for Option

HDD Car 3G Mobile DVR 4 Channel Full HD RJ45 / VGA Output With Mouse Operating

Applications



HDD Car 3G Mobile DVR 4 Channel Full HD RJ45 / VGA Output With Mouse Operating

Installation cases

HDD Car 3G Mobile DVR 4 Channel Full HD RJ45 / VGA Output With Mouse Operating
