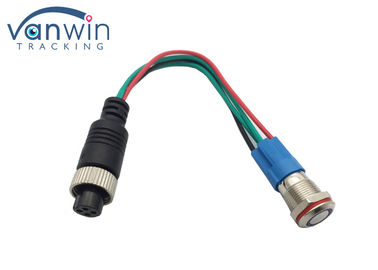

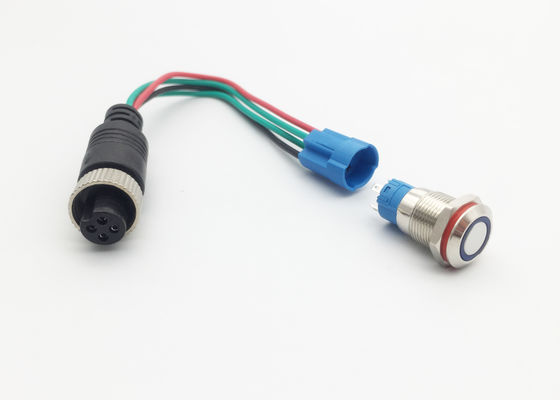

12MM 4 Pin Aviation audio control push / switch Button I/O inputs for MDVR system
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-K108B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 peice |
|---|---|
| Price: | $1.5~$3 |
| Packaging Details: | It's as the functional option for 3G mobile dvr system, it's packed with MDVR box for option |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month; |
|
Detail Information |
|||
| Product Name: | Switch Button, Push Button | Protection Level: | IP65 |
|---|---|---|---|
| Power: | DC 12V/24V | Mounting Hole Diameter: | 12mm |
| Working Current: | 2A | Terminal Type: | 4 Pin Terminals |
| Material: | Nickel-Plated Brass | Head Shape: | Flat Head/ Bulging Head |
| Highlight: | monitor plug adapter,female male connector |
||
Product Description
12MM 4 Pin Aviation audio control push / switch Button I/O inputs for MDVR system
Switch Button Product information:
- Mounting Hole Size: Φ12mm (5/8 Inch)
- Momentary switch: press, ON
- Switch Combination : 1NO
- Operation Type : Momentary
- LED voltage:12V (or 3V/5V/12V/24V/110V/220V/others)
- Great for Electric Switch, Relay, Power Button Switch, Critical Lights, Chassis Lamp, Fog Lamps, Door Switch, Led Switch.
- High quality metal material & IP68 waterproof protection can be used in wet or dusty environment.
- Aluminium alloy housing: Durable and long lasting, up to 500,000 cycles.
- Suitable for electromagnetic starters, relays, doorbells, horn push button switches, PC power switches or any circuit control.
| Product Name | Push Button Switch |
| Mounting Hole | 12mm |
| Operation Type | Momentary (Reset) |
| Switch Combination | 1NO |
| Head Type | Flat head |
| Terminal type | 4 Pin Terminals |
| Illuminated or not | Yes |
| Led Voltage | 12V (or 3V/5V/12V/24V/110V/220V/others) |
| Led Color | Blue (Or Red,green,yellow,orange,white) |
| Illuminated Type | Power logo Led illuminated |
| Enclosure Material | Brass nickel |
| Delivery Days | 2-7 days |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Customized symbol,colored housing | Acceptable and with fast shipping |
| Accessories | Nut, Rubber O-ring |
| What You Get |
1X Push button switch: 12mm, 12V Blue LED, Momentary, |
