8V-36V 4G GPS WIFI 8 Channel Mobile DVR 1080P Full HD Car Cameras For City Bus

8V-36V 4G GPS WIFI 8 Channel Mobile DVR 1080P Full HD Car Cameras For City Bus

    • 8V-36V 4G GPS WIFI 8 Channel Mobile DVR 1080P Full HD Car Cameras For City Bus
    • 8V-36V 4G GPS WIFI 8 Channel Mobile DVR 1080P Full HD Car Cameras For City Bus
    • 8V-36V 4G GPS WIFI 8 Channel Mobile DVR 1080P Full HD Car Cameras For City Bus
  • 8V-36V 4G GPS WIFI 8 Channel Mobile DVR 1080P Full HD Car Cameras For City Bus

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW810HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month;
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Basic Function: 8 Cameras Monitoring With 3G/4G Real Time, GPS Tracking,Wi-Fi
    Software Support: Client, Server, Playback Software Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
    System Upgrading: Supporting SD Card, Hard Drive Upgrading And Remote Upgrading Cameras: Analog Or 720P/960P/1080P Cameras
    Mouse Operating: Support VGA/AV Output: Support
    Storage: 2TB Hdd Storage+1*sd Card Language: English/Chinese/Russian/Spanish/other Language Can Be Customized
    Video Output: 8CH AV,1ch VGA+1ch HDMI Optional Function: Door Sensor, Oil Sensor And So On, Wifi
    Module: 4G / 3G / GPS / WIFI / G-sensor USB Backup: Support

    4G GPS WIFI 8CH 1080P Mobile HD DVR with full HD DVR car cameras for City Bus

    The MDVR supports 8 channel FULL 1080P video recording, 3G/4G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&485, I/O port interface for multiple outer device integration.

    1. This device is specially designed high price-quality ratio product for the car mobile video monitoring.
    2. It adopts embedded processor and embedded Linux operating system, combines the latest technologies in the IT filed such as H.264 audio and video compression/decompression technology.
    3. High-capacity HDD record, wireless transmission, GPS location technology and so on.
    4. Its structure adopts special anti-vibration technology.
    5. The product has good shock resistance, heat resistance and stability, it can be widely applied to various types of vehicles.





    Main Specifications



    Operating System Linux
    Language English, Chinese or Customized language.
    Video Compression H.264
    OSD Support time, date, vehicle ID, image, etc.
    GUI OSD Interface

    Can external connect to LCD and set the system specifications

    by remote

    Video and Recording Video Input 8CH 1080P AHD/Analog/Compound video input, aviation connector,
    1.0Vp-p, 75Ω
    Video Output

    1CH Compound video output with optional VGA output, 1.0Vp-p,

    75Ω.

    Support 1CH full screen and 4CH division.
    Preview Single/4CH Pictures Preview, support full screen of event trigger or
    back view of car reversing
    Recording Support 1080P/720P/D1/HD1/CIF, support at maximum 8Channels 1080P
    Resolution
    Recording

    Optional Recording for Grade 0-7. 0 is the highest and 7 is

    the lowest.

    Quality
    Video Rate PAL:100 fps,CCIR625line,50 scenes
    NTSC:120 fps,CCIR525line,60 scenes
    CIF:256Kbps - 1.5Mbps,8 grades image quality for optional
    HD1:600Kbps - 2.5Mbps,8 grades image quality for optional
    D1:800Kbps - 3Mbps,8 grades image quality for optional

    720P:800Kbps - 4Mbps,8 grades image quality for optional

    1080P:2Mbps-6Mbps,8 grades image quality for optional

    Recording Mode Default automatic video recording, support ignition video recording,
    schedule video recording, alarm video recording, etc
    Audio Audio Input 8CH Aviation connector inputs
    Audio Output 1CH Aviation connector output, Output level:1V - 2V
    Compression format G.726, Speed for 8KB/s
    Alarm Input 4CH level alarm inputs
    Alarm Output 1CH level signal output
    Communication Interface Optional for 1CH RS232 or 1CH RS485
    Wireless Transmission -
    Location /G-sensor -



    Video Storage Storage Support a 2T 2.5 -inch HDD and 1 256G SD card storage
    Upgrade Support SD card local upgrade, remote upgrade automatically
    Method
    File Format H.264 general video format
    File System FAT32 exclusive file system
    Video Playback Video Search Search recorded video files by recording time and recording method
    Playback

    Support at max 6 channel synchronous playback, suspend,

    forward, backward

    Support 2/4/8/16 times speed forward or backward
    Security Management

    User Password or administrator password management,

    support screen locked

    Expansion functions TTS Voice broadcast Support TTS voice broadcast
    Series port expansion

    Support external equipment connecting for advertising screen,

    PTZ control, fuel sensor, etc

    Power and Consumption Power Management

    Self-adaptive wide voltage input, with protect functions for overload,

    undervoltage, short circuit, reversing connection, etc

    Support time setting startup/shutdown, delayed power off function
    Power and Consumption Input Voltage DC:+8V - +36V
    Output Voltage +12V-1.5A,+5V-1.5A
    Power-off Protection

    UPS technology to protect all recorded information automatically

    and

    make sure the files undamaged in case of sudden power off.

    Consumption Normal working < 14W, standby < 0.5W
    Working environment Temperature -20℃ - +70℃
    Humidity 20% - 80%
    SD Card Type Series Dimension 168*148*65MM
    Weight

    1.4KG

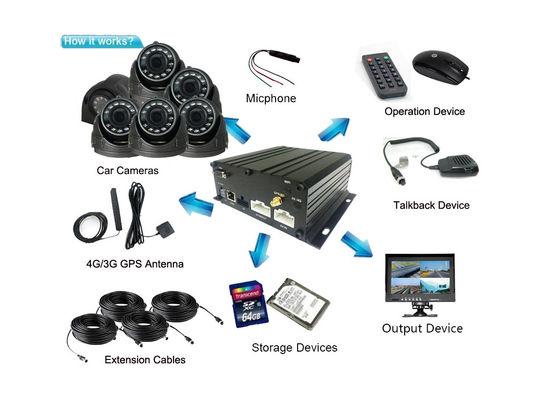

    The complete system includes:


    1. One MDVR with 3G GPS WIFI G-sensor for Option
    2. 8 cameras with extension cables
    3. One monitor for the driver
    4. HDD/SSD 500GB/1TB/2TB
    5. Micphone, Talkback device, Panic button




    Mobile dvr camera systems Applications

    8V-36V 4G GPS WIFI 8 Channel Mobile DVR 1080P Full HD Car Cameras For City Bus
