4 CH 1080P HD Vehicle Camera DVR Network Video Recorder 4G LTE H.265 8V-36V
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW918HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; 4G LTE H.265 4 CH 1080P HD Car DVR Vehicle Hard Disk Video Recorder |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Storage Capacity: | HDD/SSD, Can Support 2TB |
|---|---|---|---|
| Basic Function: | 4 1080P Cameras Monitoring With 3G/4G Real Time, GPS Tracking, Wi-Fi | Software Support: | Client, Server, Playback Software |
| Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | Cameras: | 1~4 Analog Or AHD 720P/ 960P/ 1080P Cameras |
| Video Format: | H265 | Power-off Protection: | Support |
| Power Fuse: | Support | Overpower Protection: | Support |
| High Light: | mobile digital video recorder,car black box dvr |
||
Product Description

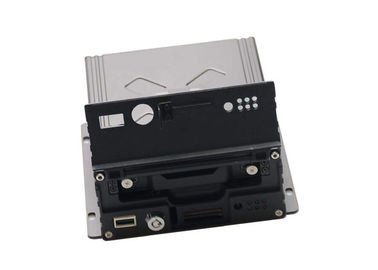

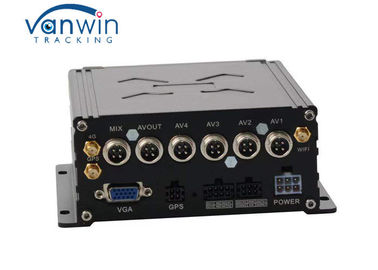

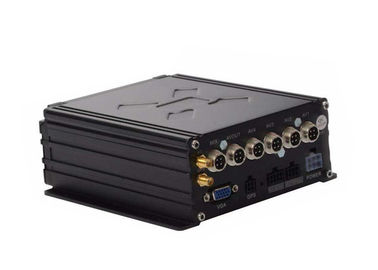

4 CH 1080P HD Vehicle Camera DVR Network Video Recorder 4G LTE H.265 8V-36V
The MDVR VW918HD is a cost-effective and high extendibility mobile digital video recorder (MDVR), developed especially for vehicle monitoring and remote video surveillance. It adopts HIS solution and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 3G/4G network, GPS/BD and WIFI. It supports 1080p,720p,D1 resolution video recording, vehicle driving record and video remote uploading. With the central software can do central remote monitoring based on alarm linkage, vehicle intelligent dispatch management and playback analysis based on central database. This device is competitive in anti-vibration, more rich function, high reliability, concise appearance and simple to deploy.
The complete system includes:
Main Features
Built-in high performance Hisilicon chipsets, coded with H.265 standard, high compression rate and image quality
AHD/TVI/CVI/IPC/ANALOG five in one video input, wide compliance
Support 4CH + 1CH 1080P IPC, support ONVIF protocol
1CH synchronized AV output, 1CH VGA output
Support hard disk heating system (optional)
Support firebox (optional)
Support UPS power input
Built-in G-sensor, monitor the driving habits
Reverse Assistance
Adjust the camera image horizontally and vertically
Adjust the camera image 90 degrees
Power:
Professional In-Vehicle power design, 8-36V DC Wide Voltage Range
Multiple protection circuits like under-voltage, short, reversed plug-in
Smart power management system, shutdown under low voltage, low consumption when standby
Report the GPS info to the server regularly with very low power consumption, compliant with JT/T794-2011 standard
Data Storage:
Built-in super capacitor to avoid data loss and disk damage caused by sudden outage
Special file management system to encrypt and protect the data
Proprietary technology to detect the bad track of the disk which can make sure the continuity of video and long service life of the disk
Support 1 HDD storage, maximum 2TB
Support 1 SD card storage, maximum 256GB
Transmission Interface:
Support GPS/BD/GLONASS optional, high sensitivity, fast positioning
Support wireless download by WiFi, 802.11b/g/n, 2.4GHz
Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
Main Specification
| Operating System | Linux | |
| Language | English, Chinese or Customized language. | |
| Video Compression | H.265 | |
| OSD | Support time, date, vehicle ID, image, etc. | |
| GUI | OSD Interface | Can external connect to LCD and set the system specifications by remote |
| Video | Video Input | 4CH 1080P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω |
| Support 1CH full screen and 4CH division. | ||
| Preview | Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing | |
| Recording Resolution | Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 720P | |
| Recording Quality | Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. | |
| Video Rate | PAL:100 fps,CCIR625line,50 scenes | |
| NTSC:120 fps,CCIR525line,60 scenes | ||
| CIF:256Kbps - 1.5Mbps,8 grades image quality for optional | ||
| HD1:600Kbps - 2.5Mbps,8 grades image quality for optional | ||
| D1:800Kbps - 3Mbps,8 grades image quality for optional | ||
| 720P:800Kbps - 4Mbps,8 grades image quality for optional | ||
| 1080P:2Mbps -6Mbps,8 grades image quality for optional | ||
| Recording Mode | Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc | |
| Audio | Audio Input | 4CH Aviation connector inputs |
| Audio Output | 1CH Aviation connector output, Output level:1V - 2V | |
| Compression format | G.726, Speed for 8KB/s | |
| Alarm Input | 4CH level alarm inputs | |
| Alarm Output | 1CH level signal output | |
| Communication Interface | Optional for 1CH RS232 or 1CH RS485 | |
| Wireless Transmission | Support built-in 3G wireless transmission, WCDMA, CDMA2000, TDD-LTE, FDD-LTE. | |
| Location /G-sensor | Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route | |
| Video Storage | Storage | Support a 2T 2.5 -inch HDD and 1 256G SD card storage |
| Upgrade Method | Support SD card local upgrade, remote upgrade automatically | |
| File Format | H.265 general video format | |
| File System | FAT32 exclusive file system | |
| Playback | Support at max 4 channel synchronous playback, suspend, forward, backward | |
| Support 2/4/8/16 times speed forward or backward | ||
| Expansion functions | TTS Voice broadcast | Support TTS voice broadcast |
| Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | |
| Power and | Power Management | Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc |
| Consumption | Support time setting startup/shutdown, delayed power off function | |
| Power and Consumption | Input Voltage | DC:+8V - +36V |
| Output Voltage | +12V/1.5A,+5V/1.5A | |
| Power-off Protection | UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off. | |
| Consumption | Normal working < 14W, standby < 0.5W | |
Installing Cases from Customers
Cameras for Option
HD Video welcome to view it in the link: https://youtu.be/TfEbHKxrNPQ
