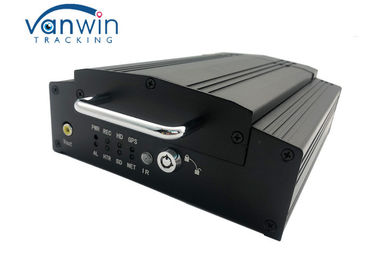

GPS 1080P Dvr 8 Channel H.264 3G Mobile DVR

GPS 1080P Dvr 8 Channel H.264 3G Mobile DVR

    • GPS 1080P Dvr 8 Channel H.264 3G Mobile DVR
    • GPS 1080P Dvr 8 Channel H.264 3G Mobile DVR
  • GPS 1080P Dvr 8 Channel H.264 3G Mobile DVR

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW812HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month;
    Contact Now
    Detailed Product Description
    Storage Capacity: 2.5" SATA Hard Disk Or SSD, 1TB / 2TB Basic Function: 8 Cameras Monitoring With 4G Real Time,GPS Tracking, WIFI Download
    Resolution: 8CH Full 1080P/720P/D1/CIF Technology: The World Class Anti-vibration Tech
    Cameras: Analog / AHD 720P / 960P / 1080P Network Port: RJ45
    Canbus: Support Video Format: H.264
    USB Port: Support Warranty: 12+4 Months
    Playback: Playback With Google Map Route,support PC Playback Language: English/Chinese/other Language Can Be Customized
    High Light:

    3g cctv dvr


    car mobile dvr

    High Quality 3G GPS 1080P dvr 8 channel mobile CCTV for vehicles

    How does DVR 8 Channel​ work?


    The system that records both the inside and outside of your vehicle to prove what really happened in any situation.


    The 8 camera device uses 4 regular HD 1080P cameras as well as 4 HD 1080P night/day cameras.


    The DVR device is a power managed and wide voltage +8V~+36VDC.


    The model is designed for all commercial vehicles, especially those that carry passengers.


    DVR 8 Channel​ Main Features


    Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection
    2TB HDD / SSD ,protect DVR from shock & Dust damage;
    Exclusive File System protect data completeness;
    ACC Delay off,can set 3- 255 mins to work;
    Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.
    Support GPS/GLONASS,3G/4G Module Optional,WIFI extend;
    Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc through remote control platform;
    8CH Alarm inputs(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;

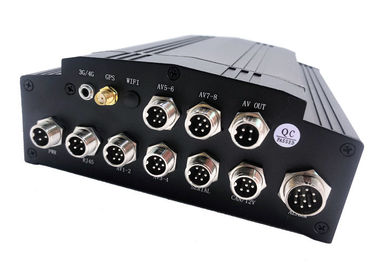

    High level aviation interface,easily installation and better shockproof, more stable;.
    Easily Smart GUI Interface, saving time in device setting;


    DVR 8 Channel system includes:

    1. One 8CH 1080P HDD MDVR with 3G/4G GPS WIFI for option
    2. 6-8 pcs 1080p/960P/720P cameras/ 8 Analog cameras with extension cables
    3. One Hard disk or SSD
    4. One Monitor, Sound Pick-up, Talkback device for option
    5. Canbus for option
    6. Oil sensor for Option

    GPS 1080P Dvr 8 Channel H.264 3G Mobile DVR 0


    HD DVR hard Drive 8 Channel​ Main Specifications


    Item Description
    OS Linux
    Graphics Operation Interface System parameters can be set through external display and remote controller
    Security Management 2-level management for user password, administrator password, supporting encrypted transmission
    Video and Preview Video Input, Output 8-channel video input, 1channel video output; 1.0Vp-p, 75Ω
    OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
    Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
    Dual-Stream Supported
    Preview Function Preview of 1-channle, 8-image stitching, supporting full screen triggered by event and switching of stitched images
    Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
    Resolution AHD 1080P/ 720P, D1, CIF 8channel
    Quality Grade 1 to grade 5 for selection (descending)
    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection                       720P: 2048Kbps~6144Kbps

    Audio Audio Input, Output 8-channel input, 1-channel output
    Compression Format G.726 coding
    Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
    File Format/ System Special file system
    Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
    Video Search Searching by time, type, storage device and other conditions
    Video Playback Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files
    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
    Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 1-channel on/off signal alarm output
    Alarm Recording Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
    Storage Space Alarm Supporting settings for alarm of storage space
    Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
    Communication Ports RS485,RS232, RJ45 10M/100M self-adaptable network interface
    Wireless Transmission (Optional) Supporting Wi-Fi;
    GPS (Optional) Supporting external GPS
    PTZ Control Supporting PTZ control realized by local;
    Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
    G-Sensor Embedded
    System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
    Power Supply and Power Consumption Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

    Input Voltage DC:+8V ~ +36V
    Output Voltage +12V@5*0.5A;
    Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
    Power Consumption <10W in normal operation; <0.5W in standby mode
    Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
    Humidity 10% to 95%
    Dimensions 160(W) x62(H) x200(D) mm.
    Weight Net: 2200g, Gross: 3500g
















































































    The working diagram


    GPS 1080P Dvr 8 Channel H.264 3G Mobile DVR 1
