• Vehicles H265 8CH 1080P 4G 14W Mobile Digital Video Recorder
  • Vehicles H265 8CH 1080P 4G 14W Mobile Digital Video Recorder

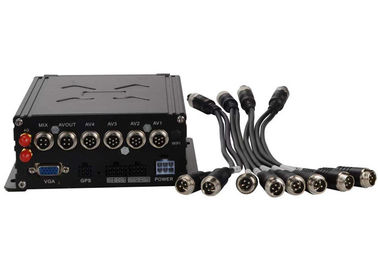

Vehicles H265 8CH 1080P 4G 14W Mobile Digital Video Recorder

Vehicles H265 8CH 1080P 4G 14W Mobile Digital Video Recorder

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW813HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month; H265 8CH 1080P 4G mobile Video Security Camera System for Vehicles
Get Best Price Contact Now

Detail Information

Power Supply: 8V-36V Storage Capacity: HDD/SSD, Can Support 2TB
Basic Function: 8 1080P Cameras Monitoring With 3G/4G Real Time, GPS Tracking, Wi-Fi Software Support: Client For Phone Or Computer, Server, Playback Software
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Cameras: 1~8 Analog Or AHD 720P/ 960P/ 1080P Cameras
Video Format: H265 Power-off Protection: Support
Power Fuse: Support Overpower Protection: Support
Intercom: Support RJ45 Port: Support
High Light:

3g cctv dvr

,

car mobile dvr

Product Description

H265 8CH 1080P 4G mobile Video Security Camera System for Vehicles

  1. The MDVR VW813HD is a cost-effective and high extendibility mobile digital video recorder (MDVR), developed especially for vehicle monitoring and remote video surveillance.
  2. It adopts HIS solution and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 3G/4G network, GPS/BD and WIFI.
  3. It supports 1080p,720p,D1 resolution video recording, vehicle driving record and video remote uploading.
  4. With the central software can do central remote monitoring based on alarm linkage, vehicle intelligent dispatch management and playback analysis based on central database.
  5. This device is competitive in anti-vibration, more rich function, high reliability, concise appearance and simple to deploy.

The complete system includes:



  • 1. One 8CH MDVR with 4G/3G GPS WIFI G-sensor for Option
  • 2. 6~8 1080p / 960p cameras with extension cables
  • 3. One monitor for the driver for Option
  • 4. HDD 500GB/1TB/2TB, max support 256GB SD Card
  • 5. Micphone, Talkback device, Panic button

Main Features

Built-in high performance Hisilicon chipsets, coded with H.265 standard, high compression rate and image quality

AHD/TVI/CVI/IPC/ANALOG five in one video input, wide compliance

Support 8CH + 1CH 1080P IPC, support ONVIF protocol

1CH synchronized AV output, 1CH VGA output

Support hard disk heating system (optional)

Support firebox (optional)

Support UPS power input

Built-in G-sensor, monitor the driving habits

Reverse Assistance

Adjust the camera image horizontally and vertically

Adjust the camera image 90 degrees

Power:

Professional In-Vehicle power design, 8-36V DC Wide Voltage Range

Multiple protection circuits like under-voltage, short, reversed plug-in

Smart power management system, shutdown under low voltage, low consumption when standby

Report the GPS info to the server regularly with very low power consumption, compliant with JT/T794-2011 standard

Data Storage:

Built-in super capacitor to avoid data loss and disk damage caused by sudden outage

Special file management system to encrypt and protect the data

Proprietary technology to detect the bad track of the disk which can make sure the continuity of video and long service life of the disk

Support 1 HDD storage, maximum 2TB

Support 1 SD card storage, maximum 256GB

Transmission Interface:

Support GPS/BD/GLONASS optional, high sensitivity, fast positioning

Support wireless download by WiFi, 802.11b/g/n, 2.4GHz

Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA





Main Specification



Operating System Linux
Language English, Chinese or Customized language.
Video Compression H.265
OSD Support time, date, vehicle ID, image, etc.
GUI OSD Interface Can external connect to LCD and set the system specifications by remote
Video Video Input 8CH 1080P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω
  Support 1CH full screen and 8CH division.
Preview Single/8CH Pictures Preview, support full screen of event trigger or back view of car reversing
Recording Resolution Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 720P
Recording Quality Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest.
Video Rate PAL:100 fps,CCIR625line,50 scenes
NTSC:120 fps,CCIR525line,60 scenes
CIF:256Kbps - 1.5Mbps,8 grades image quality for optional
HD1:600Kbps - 2.5Mbps,8 grades image quality for optional
D1:800Kbps - 3Mbps,8 grades image quality for optional
720P:800Kbps - 4Mbps,8 grades image quality for optional
1080P:2Mbps -6Mbps,8 grades image quality for optional
  Recording Mode Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc
Audio Audio Input 8CH Aviation connector inputs
Audio Output 1CH Aviation connector output, Output level:1V - 2V
Compression format G.726, Speed for 8KB/s
Alarm Input 4CH level alarm inputs
Alarm Output 1CH level signal output
Communication Interface Optional for 1CH RS232 or 1CH RS485
Wireless Transmission Support built-in 3G wireless transmission, WCDMA, CDMA2000, TDD-LTE, FDD-LTE.
Location /G-sensor Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route
Video Storage Storage Support a 2T 2.5 -inch HDD and 1 256G SD card storage
Upgrade Method Support SD card local upgrade, remote upgrade automatically
File Format H.265 general video format
File System FAT32 exclusive file system
  Playback Support at max 8 channel synchronous playback, suspend, forward, backward
Support 2/4/8/16 times speed forward or backward
Expansion functions TTS Voice broadcast Support TTS voice broadcast
Series port expansion Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc
Power and Power Management Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc
Consumption Support time setting startup/shutdown, delayed power off function
Power and Consumption Input Voltage DC:+8V - +36V
Output Voltage +12V/1.5A,+5V/1.5A
Power-off Protection UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off.
Consumption Normal working < 14W, standby < 0.5W

Vehicles H265 8CH 1080P 4G 14W Mobile Digital Video Recorder 0

Car Cameras with Analog/720P/960P/1080P for Option



Vehicles H265 8CH 1080P 4G 14W Mobile Digital Video Recorder 1

HD Video welcome to view it in the link: https://youtu.be/TfEbHKxrNPQ
