AHD IP Cameras Linux3.18 4G H.265 Car DVR Recorder

AHD IP Cameras Linux3.18 4G H.265 Car DVR Recorder

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW9204HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month
Get Best Price Contact Now

Detail Information

Video Format: H.265 WIFI Download: Support
G-Sensor: Embedded AHD Camera: 720P/960P/1080P/IP
Alarm: 6CH Alarm Inputs, 2CH Alarm Output Resolution: 4ch 720P(1280x720), 960p, 1080P
Product Name: 4CH 4G AHD HDD Mobile DVR 1080P Car DVR Recorder Language: English/Chinese/other Language Can Be Customized
Software Support: Client For PC And Mobile Phone, Server, Playback Software Application: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
High Light:

H.265 Car DVR Recorder

,

Linux3.18 Car DVR Recorder

,

4G AHD SSD Mobile DVR

Product Description

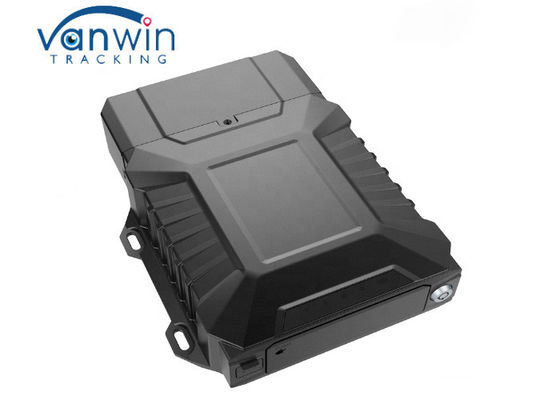

4CH 4G AHD SSD Mobile DVR 1080P Car DVR Recorder, support AHD / IP cameras

VW9204HD is a cost-effective and high extendibility mobile digital video recorder (MDVR), developed especially for vehicle monitoring and remote video surveillance. It adopts high speed processor HI3521D and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 3G/4G network, GPS/BD and WIFI. It supports 1080p,720p,D1 resolution video recording, vehicle driving record and video remote uploading. With the central software can do central remote monitoring based on alarm linkage, vehicle intelligent dispatch management and playback analysis based on central database.



Main Specifications

Model
VW9204HD
OS
Linux3.18
Operating
Cell phone APP, PC client, Remote controller
Functions Summary
Preview, recording, playback, network transmission, positioning, AI analysis, multiple sensor data acquisition.








Video and Preview
Video Input, Output,Signal standard
AHD input:4ch 1080p/30fps,4ch 720p/30fps,4ch D1/30fps. IPC input:1ch default, externally expandable 1-4ch. Output: 1ch CVBS
default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional
OSD
Character superposition function, information superposition of time and date, device ID and GPS, alarm,etc.
Video Compression Format
Compression coding. Applying H264/H.265 hi-performance processor.
Image quality
Code stream, frame rate optional
Preview
1/4/6/8/9 channel preview
Resolution
AHD: 1080P:30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M
D1:30fps/512K/1M/2M
IPC: 1080P: 30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M
Audio
Audio Input, Output
4ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p, 4.7kΩ
Compression Format
G.711A, G.726,G711U





Recording
Storage Medium
Supporting one 2.5” SATA hard drive and one SD card
Video Strategies
Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Alarm pre-recording
0-60min
Alarm recording delay
0-30min
Playback channel
Support local 1/4/6/8 channel playback
Browse mode
Time, channel, event.



3G Client Monitoring Platform CMSV6



AHD IP Cameras Linux3.18 4G H.265 Car DVR Recorder 0

FQA

1. Do you provide the free CMS?

Yes, is free of charge. We will provide you the authorized code after you buy our equipment.



2. What is the minimum requirement to run this software?

CPU 2.5G four core; Memory 8GB; HDD 1TB;



3. Which OS can run this software?

server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both 32bit and 64bit.



4. After we build our own server, can the IP of units be changed remotely?

Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.



Any further questions, please don't hesitate to contact us, we are very pleased to help you.

Below are some screen shot of our CMS:
