4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD

Basic Information
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW904W-HD
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month
Video Format: H.264 Waterproof: Support
AHD Camera: 720P/960P/1080P Power Input: DC 8V~36V
Alarm: 6CH Alarm Inputs, 2CH Alarm Output Resolution: 4ch 720P(1280x720), 960p, 1080P
Storage: 2TB Hdd Storage+1*sd Card Optional Function: Oil Sensor And So On,3G/4G,Wifi
Software Support: Client For PC And Mobile Phone, Server, Playback Software Application: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
High Light:

4CH 3G Mobile Dvr


Waterproof 3G Mobile Dvr


H.264 Vehicles Mobile DVR

4CH 1080p Car Waterproof 3G mobile dvr cctv with SSD record storage for Vehicles

  1. VW904W-HD Waterproof is a professional HD H.264 mobile digital video recorder(DVR) specially designed for vehicle surveillance purpose.
  2. It adopts high speed processor hardware and embedded Linux system.
  3. The state of the art mobile dvr use the latest IT technologies, such as H.264 code,data flow streaming, A/V noise reduction,module-style design, anti-vibration technology, wide-range voltage design.
  4. It supports analog AHD record and hybrid model which can easily upgrade your old CIF/D1 analog mobile DVR to HD solution(high definition.)
  5. This powerful mobile DVR has robust hardware for anti-shock and rich interfaces with simple deploy and reliable work.

Main Specifications

OS Linux
User interface Support E-set, remote controller, remotely operation, SD card, etc to configure
Language English,Chinese (option customized)
Security User password, Administrator password management
Video & preview Input/output 4 channel video input, 1 channel video CVBS output; 1.0Vp-p, 75Ω
  OSD Overlays letters... like date /time, vehicle ID,GPS,etc into the video
  Compression H.264 High Profile Compression
  Dual stream Record with HD video and remotely live view with lower stream
  preview 1 channel/Quad preview; support events trigged to full screen and video switch
  Speed(frame rate) PAL: 100fps, each channel 25fps; NTSC: 120fps, each channel 30fps
  Resolution 720P /D1/CIF adjustable
  Image quality High, middle, and low option
  Video rate

CIF: 384 kbps/512 kbps/768 kbps/1024 kbps/1536 kbps, 5 grades adjustable

D1: 512kbps/768kbps/1024kbps/1536kbps/2048kbps, 5 grades adjustable

720P:1024kbps/2048kbps/3072kbps/4096kbps/5120kbps, 5 grades adjustable

Audio Audio input/output

4 channel audio input/1 channel audio output; independent handheld talk

MIC port

  Compression G.726
Record Storage

Basic type: support 2 sd cards &external fire box, max

support 256GB

Functional type: support 2 sd cards $ external fire box, And

supports 2.5' SSD, max support 2TB.

  Format FAT32
  Record strategy

Default power-on record, also support time schedule record,

alarm record and events trigger record

Alarm Input 4 channel level signal and 2 channel analog signal input
  Output 2 channel level signal output
Communication Serial Port Support 2 channel RS232
port Network 10M/100M network port
3G/4G/WIFI Support 3G/4G and compatible with GPRS, EDGE, etc; built-in WIFI
G-Sensor Built-in G-Sensor
GPS(option) Support GPS, option/BD/GLONASS
Firmware upgrading SD card; remotely upgrade; HDD upgrade; USB pen driver upgrade
Power supply Power manage ACC on/off; delay off;
  Voltage DC:+8V ~ +36V
  Voltage output + 12V@ 2.5A : +5V@1A

Power failure


Built-in UPS, to ensure the record completely when power failure suddenly;
  Consumption Working: <10W; Support turning off with no power consumption
Work Environment Temperature -25℃ ~ +60℃
  Humidity 10% ~ 95%
Size 154(W) x 39(H) x 137(D) mm
Weight Net weight: 1.6KG; Gross weight: 2.5KG

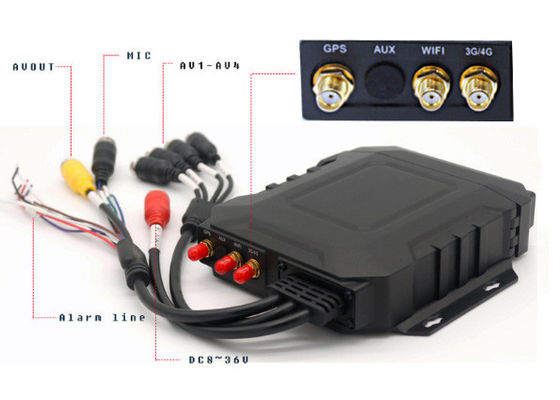

4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD 0


Main Features


1. Industrial-grade design with special vehicle port for reliable working on harsh environment
2. Wide voltage support over-load ,short circuit ,reverse connect protection
3. UPS power for continual work
4. Basic type: support 2 sd cards &external fire box, max support 256GB
5. Functional type: support 2 sd cards $ external fire box, And supports 2.5' SSD, max support 2TB.
6. 4G/WIFI transmit; multiple grade image quality transmitting option
7. GPS/BD/GLONASS global positioning
8. Powerful software platform including remote preview, playback, broadcast, talk and more
9. IP communication
10. PTTgroup talk function
11. Support multiple serial port extension


3G Client Monitoring Platform CMSV6

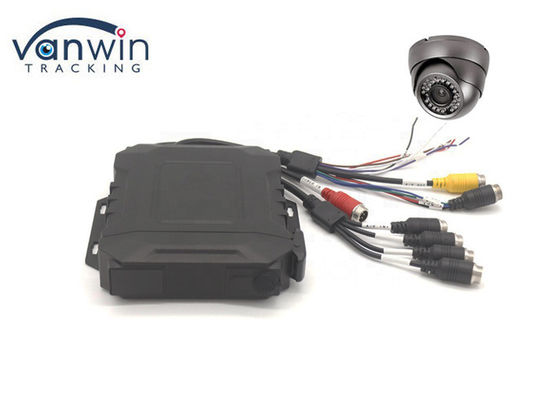

4CH 1080p Car Waterproof 3G Mobile Dvr H.264 With SSD 1



1. Do you provide the free CMS?

Yes, is free of charge. We will provide you the authorized code after you buy our equipment.


2. What is the minimum requirement to run this software?

CPU 2.5G four core; Memory 8GB; HDD 1TB;


3. Which OS can run this software?

server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both 32bit and 64bit.


4. After we build our own server, can the IP of units be changed remotely?

Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.


Any further questions, please don't hesitate to contact us, we are very pleased to help you.

Below are some screen shot of our CMS:
