1080P H.265 4 Channel Mobile DVR 4CH GPS Car Video Recorder RJ45 Network Port

1080P H.265 4 Channel Mobile DVR 4CH GPS Car Video Recorder RJ45 Network Port
1080P H.265 4 Channel Mobile DVR 4CH GPS Car Video Recorder RJ45 Network Port 1080P H.265 4 Channel Mobile DVR 4CH GPS Car Video Recorder RJ45 Network Port 1080P H.265 4 Channel Mobile DVR 4CH GPS Car Video Recorder RJ45 Network Port

Large Image :  1080P H.265 4 Channel Mobile DVR 4CH GPS Car Video Recorder RJ45 Network Port

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW805HD
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month

1080P H.265 4 Channel Mobile DVR 4CH GPS Car Video Recorder RJ45 Network Port

Description
Power Supply: 8V-36V Wide Voltage Type: 4CH Mobile NVR
Network: 3G/4G WCDMA/EVDO Storage: 1*2TB HDD+1*256GB SD Card
Client Software: PC And Mobile Phone Supported Alarm: 6CH Alarm Inputs, 2CH Alarm Output
Audio Output: 1 Channel VGA Video Output, 1 Channel Aviation Connector Video Output Resolution: 720P/1080P
Network Port: RJ45 Video Compression: H.265
Warranty: 12 Months
High Light:

H.265 4 Channel Mobile DVR

,

1080P 4 Channel Mobile DVR

,

RJ45 GPS Car Video Recorder

2022 New 1080P H.265 4 Channel GPS Car Video Recorder Truck Bus Mobile NVR

The system that records both the inside and outside of your vehicle to prove what really happened in any situation.

The 4 camera device support 4ch 1080P IPC cameras.



Main Specifications



Item
Device parameter
Performance
System
Main processor
Hi3520DV400
Operating system
Embedded Linux operating system
Operating language
Chinese/English/Russian
Operating interface
Graphical menu operation interface, support mouse operation
Password security
two-level management of user password and administrator password
Audio&Video
Video standard
PAL/NTSC
Video compression
H.264/H.265
Image resolution
1080P/720P
Playback quality
1080P/720P
Compound mode
A variety of ways
Decoding ability
4ch 1080P real time
Video quality
1 to 4 levels can be configured
Screen display
Support 1, 2, 3, 4 screen display
Audio compression
not supported
Recording method
Video recording
Recording &Playback
Recording and playback
Recording method Manual, alarm
Video bit rate
4-level picture quality optional
Audio bit rate
8KB/s
Storage media
Hard Disk+SD card
Video query
Search by channel and video type
Local playback
one-way, by time
Firmware upgrading
Upgrading mode
manual upgrade, remote upgrade
Upgrading method
USB interface, network

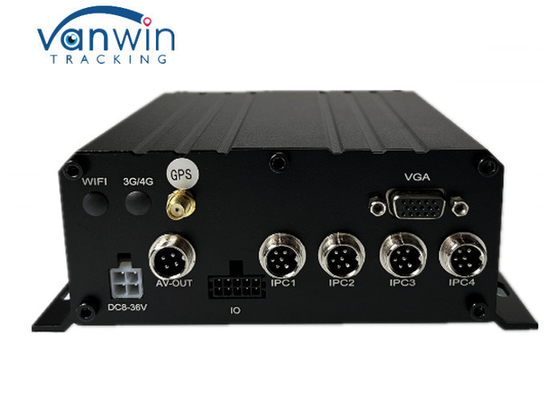

Interface
Video input
4-way 6-pin aviation header interface
Video output
1 channel VGA video output, 1 channel aviation head video output
Alarm input
4 trigger alarm inputs (four configurable positive/negative triggers)
Disk interface
2.5-inch hard drive, up to 2TB
SD card
1 SDXC high-speed card (maximum support 512G)
USB interface
1 USB 2.0 (support full mouse operation, USB delay self-test)
Ignition input
1 ACC signal
Serial port
1 channel 232
LED Indication
PWR/REC/SD/GPS/VLSS/ALM
Disk lock
1
Function extention
GPS
Supports antenna insertion/removal/short circuit detection
Others
Power input
8~36V DC
Power output
12V 2A
Power consumption
Standby 3mA
Maximum consumption 30W @12V 2.5A @24V 1.25A
Working temperature
-20 - 70℃
Storage
1080P 1.9G/hour/channel
720P 0.8G/hour/channel
Dimension
166mm*155mm*137mm





Main Features



1. Built-in HiSilicon high-performance image processing chip, H.265/H.264 encoding, high compression ratio, clear image

2. Support 4 channels of digital million high-definition input, 1 channel of video and audio synchronization output, 1 channel of VGA output,

3. Support 4ch 1080P HD real-time local video recording

Power supply: 1. Professional vehicle power supply 8-36V DC wide voltage input design

2. Various protection circuits such as undervoltage, short circuit, reverse connection, etc., suitable for various models

3. Support intelligent power management identification, automatic shutdown when low power, low power consumption after flameout Data storage:

1. Using a special file management mechanism to encrypt data to effectively protect data security

2. Proprietary disk bad sector detection technology, which not only ensures the continuity of video recording, but also prolongs the life of the disk

3. Built-in super capacitor to avoid abnormal power failure data loss and disk damage

4. Support 2.5-inch hard disk, up to 2TB

5. Support SD storage, up to one 512G

6. Support hard disk automatic heating (customization)



How to install?



1080P H.265 4 Channel Mobile DVR 4CH GPS Car Video Recorder RJ45 Network Port 0



Advantage of 3G Mobile DVR

1. The original chip

Further Video Recorder, each of which uses the original industrial-grade chip, can ensure stable operation in the severe cold and heat environment.

2. Humanized USB Interface

Humanized design, easy to operate, user-friendly copy of information, insert mouse/U disk.

3. Support screen switching

Supporting reverse screen enlargement, four-way video switching, providing technical support.

4. Wide Voltage Design

Vehicle broadband power supply can work steadily in the range of DC 8V-36V voltage.

1080P H.265 4 Channel Mobile DVR 4CH GPS Car Video Recorder RJ45 Network Port 1
