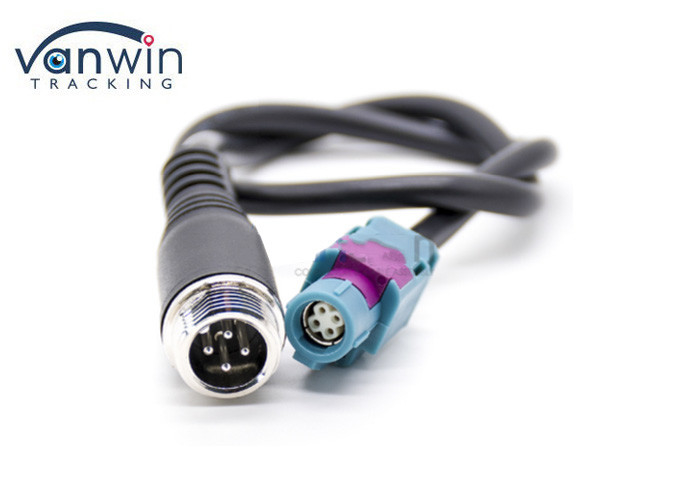

Rear View Camera Signal Cable HSD To GX12 HSD 4Pin Z Code Extension Cable
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-BB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 peice |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plastic foam packing |
| Delivery Time: | 1-2 days for samples,5~7 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5000 pcs per day |
|
Detail Information |
|||
| Stype: | HSD To GX12 | A Conector: | HSD 4P Jack, Z Code |
|---|---|---|---|
| A Contact Gender: | Female | A Connector Orientation: | Straight |
| B Connector: | Male, GX12 Plug | Contact Material: | Copper |
| Frequency - Max: | 6GHz | Operating Voltage: | 100V Rms |
| Withstand Voltage: | 250 V Rms | Mating Durability: | ≧ 25 Cycles |
| High Light: | 6GHz Camera Signal Cable,HSD To GX12 Camera Signal Cable,HSD connector Camera Extension Cable FCC |
||
Product Description
Rear View Camera Signal Cable, HSD to GX12, HSD 4Pin Z Code Female to GX12 Plug Extension Cable
What is HSD (High Speed Data) Connector?
HSD connector and cable provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST and USB 2.0 protocols.
These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB), and designated shield connection systems. These HSD connectors can serve for hermetic applications.
Main Features
High-speed shielded connection system suitable for digital data with performance up to 6 Gbps
Fully shielded connection system of different wire diameters and types
Compliant with LVDS (Low voltage differential signal), Ethernet and USB protocols
Full range of connectors for non-sealed and sealed applications
Extend the PCB connector product portfolio
High level of process automation and global manufacturing footprint
IDB 1394 Automotive Specification
USCAR 2, REV 5
LV214
HSD & FAKRA Electrotechnical Elements
HSD Interface Dimensions

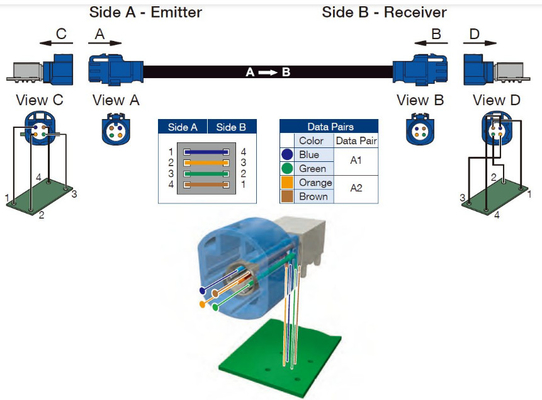

HSD Pinning
