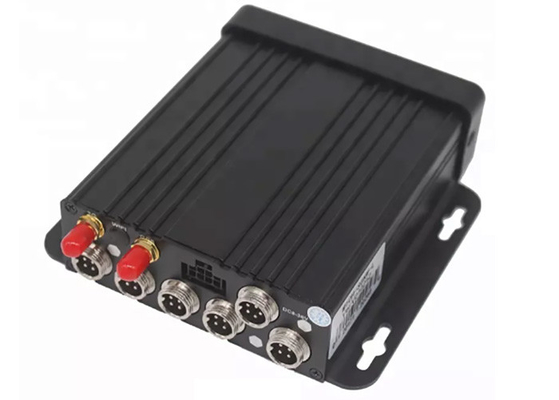

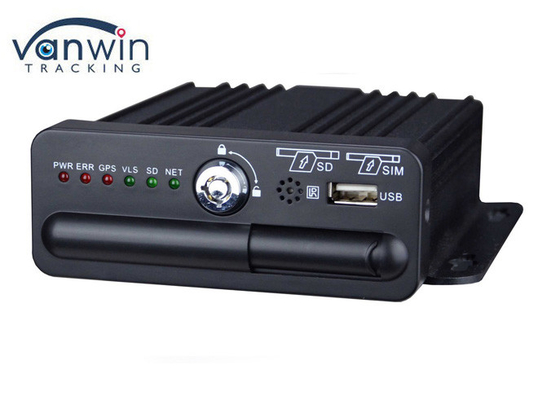

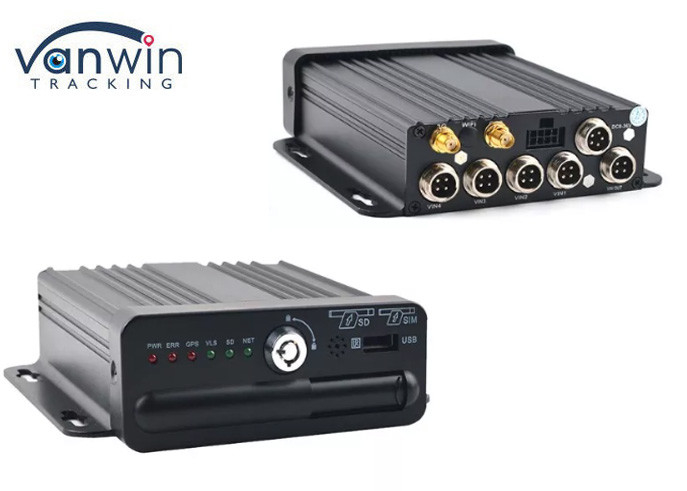

4 Channel SD Card Mobile DVR 4G GPS WIFI 1080P Mini Mobile DVR
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW621HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal; |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Features: | 4G / 3G And GPS Optional, WIFI Auto Download, Basic Monitoring | Power Supply: | 8V-36V |
|---|---|---|---|
| CVBS: | Support | Video Input: | 4 Channels |
| Video Compression: | H.264 / H265 | Storage Capacity: | 2*256G SD Cards |
| Car Cameras: | AHD Up To 2MP 1080P, CVBS D1 | Resolution: | Support 1080P/720P/D1/CIF |
| Gps: | Built-in High Accurate GPS Module(optional) | Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets |
| High Light: | CVBS SD Card Mobile DVR,Mini Mobile DVR 4 Channel,WIFI 1080P Mini Mobile DVR |
||
Product Description
4 Channel 4G GPS WIFI 1080P SD Card Mobile DVR, Support 256GB Dual SD Cards
The DVR is specifically designed for use on board mobile vehicles, such as cars, aircraft and boats.
In the CCTV industry, these devices are called MDVR (Mobile Digital Video Recorder) and are actually very different from our standard DVR for analog cameras. In particular, casing, terminals and memory slots are designed to bear strong vibrations and extreme climatic conditions.
These MDVRs are compatible with all analog CVBS or AHD cameras. CVBS is the classic analog video format and is still the most widely used on vehicles, with small monitors.
If you look for the highest resolution, you can choose the AHD format, the high-resolution analog video, that get up to 1MP 720P and 2MP 1080P resolution.
These MDVRs can manage any type of analog camera, both traditional CVBS and AHD, up to 2MP resolution. Obviously the perfect match is with our vehicle cameras, however, if you use the MDVR on a boat or a heavy vehicle, you can connect any camera for traditional AHD systems. If you buy an MDVR model with a network port, you can also connect IP cameras up to 2MP.
Mobile video recorder vehicle Features
1) SD card for storage,max 2*128G
2) GPS tracking and 3G remote control realtime monitoring optional
3) UPS technology to protect sudden power off
4) The Power and mainboard are integrated with much better quality
5) G-sensor ,RS232/485 interface,RJ45 lan port,6ch alarm input
6) Mini size and light on weight
7) World class anti-vibration technology for over 8 years lifetime
8) High end products for Military dep or government usage
Mobile video recorder vehicle Specifications
| Inputs | 4 video + 2 audio |
| Compatible cameras | AHD CVBS cameras |
| Video compression | H265, H264 |
| Video resolution | AHD up to 2MP 1080P, CVBS D1 |
| Dual stream | Support |
| HARDWARE | |
| Main processor | Hi3521D |
| Operating system | LINUX embedded |
| Hard Disk | Not support |
| SD card | Slot SD max 256GB |
| Video inputs | 4 BNC |
| Audio inputs | 2 RCA |
| Audio outputs | 1 RCA |
| Alarm inputs | 4 voltage inputs |
| Alarm outputs | 1 relay output |
| Serial port | RS232 |
| USB ports | 1xUSB2.0 |
| Video output | 1xCVBS BNC |
| Auxiliary DC power output | 12V@2.5A |
| Remote control | Support |
| G-Sensor | Support |
| GPS | Optional |
| WiFi | Optional |
| 3G/4G | Slot SIM card 3G/4G |
| PERFORMANCE | |
| Recording | 2MP 1080P 4CHx25f/s, 1MP 720P 4CHx25f/s, D1 4CHx25f/s |
| SOFTWARE | |
| P2P Cloud Server | Free |
| Smartphone | CMSV6 app for iPhone iPad Android Android-Pad |
| Fleet management software | CMSV6 for Windows |
| Recording mode | Timer, Continuous, Alarm |
| FEATURES | |
| Live view | 1/4 cameras |
| OSD | ID, Date, Time, License plate, Channel |
| Alarm input actions | Recording, Pop-up camera, output trigger, APP/SW notification |
| Automatic overwrite when memory full | Support |
| Timeline for playback search | Support |
| Password protection | Support |
| GENERAL | |
| Casing | Shock-proof metal casing |
| Operating temperature | ,-20℃+70℃ RH90% Max |
| Power supply | 8..36VDC +/-10% |
| Power consumption | Max 10W |
| Dimensions | 128x40x135 mm |
| Weight | 360 g |
| Accessories in the package | 5 AV/DC cable adapters | 1 power supply cable | Remote control | I/O cable |
FQA
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
