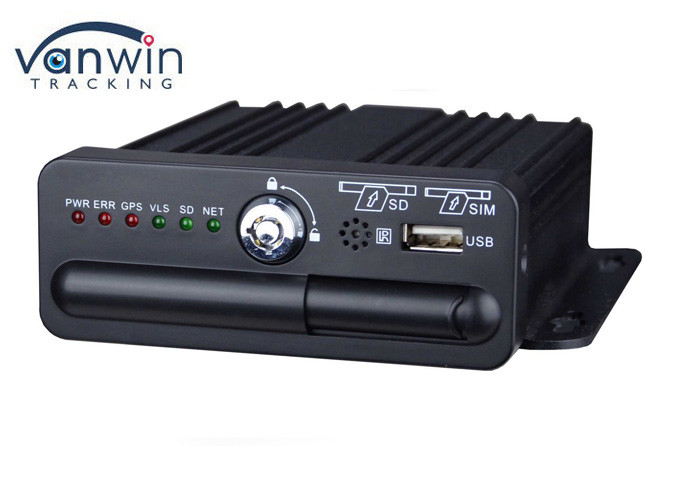

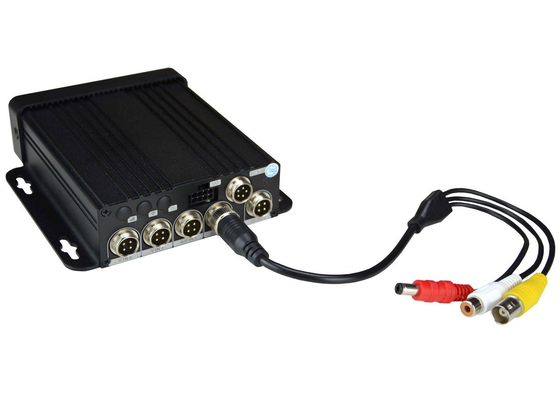

4G GPS WIFI 1080P Mini Mobile DVR 4 Channel Support 256GB SD Card Recording

4G GPS WIFI 1080P Mini Mobile DVR 4 Channel Support 256GB SD Card Recording

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW621HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal;
Supply Ability: 5,000pcs per month
Get Best Price Contact Now

Detail Information

Features: 4G / 3G And GPS Optional, WIFI Auto Download, Basic Monitoring Power Supply: 8V-36V
CVBS: Support Video Input: 4 Channels
Video Compression: H.264 / H265 Storage Capacity: 2*256G SD Cards
Car Cameras: AHD Up To 2MP 1080P, CVBS D1 Resolution: Support 1080P/720P/D1/CIF
Gps: Built-in High Accurate GPS Module(optional) Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
High Light:

4G GPS Mini Mobile DVR


4 Channel Mini Mobile DVR


anti vibration SD Card Mobile DVR

Product Description

4 Channel 4G GPS WIFI 1080P SD Card Mobile DVR, Support 256GB Dual SD Cards


The DVR is specifically designed for use on board mobile vehicles, such as cars, aircraft and boats.

In the CCTV industry, these devices are called MDVR (Mobile Digital Video Recorder) and are actually very different from our standard DVR for analog cameras. In particular, casing, terminals and memory slots are designed to bear strong vibrations and extreme climatic conditions.
These MDVRs are compatible with all analog CVBS or AHD cameras. CVBS is the classic analog video format and is still the most widely used on vehicles, with small monitors.

If you look for the highest resolution, you can choose the AHD format, the high-resolution analog video, that get up to 1MP 720P and 2MP 1080P resolution.


These MDVRs can manage any type of analog camera, both traditional CVBS and AHD, up to 2MP resolution. Obviously the perfect match is with our vehicle cameras, however, if you use the MDVR on a boat or a heavy vehicle, you can connect any camera for traditional AHD systems. If you buy an MDVR model with a network port, you can also connect IP cameras up to 2MP.


Mobile video recorder vehicle Features


1) SD card for storage,max 2*128G

2) GPS tracking and 3G remote control realtime monitoring optional

3) UPS technology to protect sudden power off

4) The Power and mainboard are integrated with much better quality

5) G-sensor ,RS232/485 interface,RJ45 lan port,6ch alarm input

6) Mini size and light on weight

7) World class anti-vibration technology for over 8 years lifetime

8) High end products for Military dep or government usage


Mobile video recorder vehicle Specifications

Audio and Video Inputs
video input
4ch AHD input
audio input
2ch audio input channels
Audio and Video outputs
video output
1ch CVBS output
speech output
1ch Audio output
Audio and video parameter coding
video coding
H.264 Main Profile/H.265
1080P/720P/D1 optional
audio coding
default G.726,G.711A optional
storage space
SD card
support 1 SD card
wireless network
4G wireless
support 1 SIM card,optional:All the major communication modules in the world
locate mode
Positioning, speed detection, time synchronization
1xusb2.0, for data export, upgrade use
serial port
1 x RS232
4 channel input
Output 1 channel
Physical Specifications
GW:0.8kg(Take M10C-SGNE-L as standard)
work environment
operating temperature
operating humidity
8%〜90%(No condensation)
operator schema
remote control
· Gravity sensor
built-in G-Sensor



1.Q: Does the MDVR support Hard drive and SD card?

A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

The storage capacity can be from 32GB to 2TB.


2.Q: Is it difficult to install MDVR into the vehicle?

A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.


3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

is it available?

A: Definitely yes!

The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

PTZ camera, and so on.


4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

A: Yes, we have SDK ready and welcome your OEM customized order!
