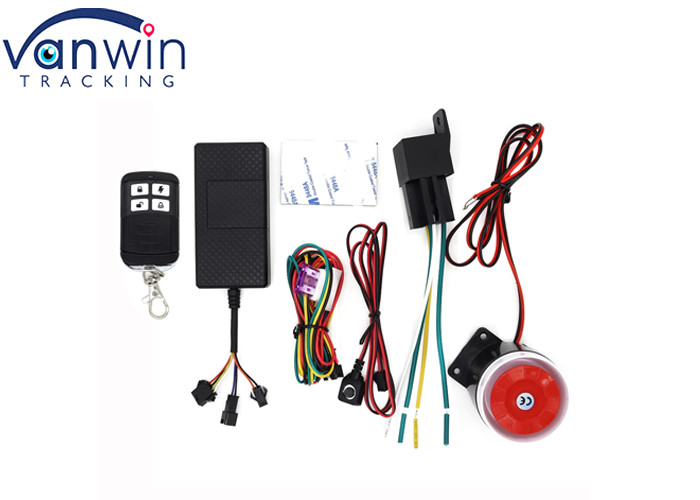

4G Vehicle GPS Tracker Kit With SOS Remote Engine Stop Driving Behavior Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW22 kit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD5-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Product Name: | 4G Vehicle GPS Tracker Kit | Network: | LTE-FDD:GSM |
|---|---|---|---|
| Chipset: | SIMCom LTE Cat 1 Module A7670 Series +AT6558R | Standby & Working Consumption: | 5mA~50mA |
| Location Accuracy: | <5 Meters CEP | Working Temperature: | -20°C To +70°C |
| G-Sensor: | Support | Back Up Battery: | Back Up Battery 200mAh /3.7V Li-Polymer Battery |
| High Light: | Multi Functional 4G Vehicle GPS Tracker,SOS 4G Vehicle GPS Tracker,4G Vehicle GPS Tracker Kit |
||
Product Description
Multi-Functional 4G Vehicle GPS Tracker Kit With SOS/Remote Engine Stop/Driving Behavior Monitoring
Main Features
Product Type: 4G Vehicle GPS Tracker+Alarm Aystem
Locating Mode: GPS+LBS+AGPS
Size: 85*45*17mm
Built-in Battery: 200mAh
Operation Voltage: 9-90V
Main Advantage:
>9-90V use for car/E-bike/scooter/motorcycle

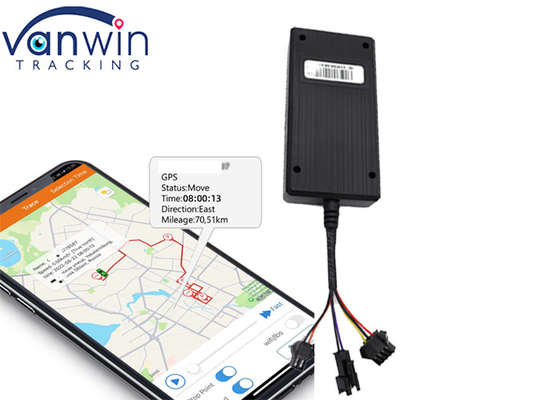

>Real-time tracking by SMS/APP/PC
>Over-speed/Vibration/Geo-fence/SOS alarm
>ACC on/off alarm
>Power Cut Alarm with buit-in battery
>History Tracking Playback
>Remote cut-off/restore fuel
>Remote Controller Set Arm Or Disarm
>Trigger the burglar alarm and the horn will sound
SPECIFICATION
| Content | Specs. |
| Dim. | 85*45*17mm |
| Network | LTE/GSM/GPRS |
| Frequency(4G+2G) |
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM :850/900/1800/1900Mhz |
| Module & Chipset |
SIMCom LTE Cat 1 Module A7670 Series +AT6558R |
| GPS channel | 66 |
| Tracking sensitivity | -165dBm |
| Location accuracy | <5 meters CEP |
| Time To First Fix(open sky) | Cold status <32s, Hot status <3s |
| Working voltage | 9-90VDC |
| GPRS Protocol | Class12, TCP/IP |
| Operating temp. | -20°C to +70°C |
| Back up battery | 200mAh /3.7V Li-Polymer battery |
| Standby & Working consumption | 5mA~50mA |
| G-Sensor | Support |
FUNCTIONS INTRODUCTION
