3G 4G GPS 1080P AHD SD Card 4 Channel DVR mobile software
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW9104 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD300 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Video Compression: | H. 264 | Storage: | One SD Card, Max 256GB |
|---|---|---|---|
| Resolution: | Support 1080P/720P/D1/CIF | Product Name: | SD Card 4 Channel Mobile DVR With VGA |
| Warranty: | 18 Months | Type: | SD Card Mobile DVR |
| Video Input: | 4 Channels AHD 1080P Video | Power Input: | DC 8V~36V |
| Gps: | YES | Playback: | Single/4 Pictures/ Customized |
| Language: | English/Chinese/Russian | Alarm Input: | 3 Alarm Inputs |
| Channel: | 4CH | 4g: | 4G Optional |
| Applicable Vehicles Type: | Vehicle Fleets | ||
| Highlight: | 4 Channel Mobile DVR 1080P,SD Card 4 Channel Mobile DVR,4 Channel Mobile DVR With VGA |
||
Product Description
3G 4G GPS 1080P AHD SD Card 4 Channel DVR mobile software
Product introduction
Series S9104 SD MDVR is a cost-effective, functional and extensible device which specially designed for vehicle video monitoring and remote control. It adopts high-speed processor and embedded Linux platform development, combined with the most advanced technology in IT field, such as H.264 video compression&decompression, network, and GPS. Using SD card as storage medium, it can realize functions like video&audio record in 4ch CIF/HD1/D1/720P/1080P AHD format. Worked with CMS, central monitoring of alarm linkage, remote management and playback analysis can be realized. It has simple outlook but has strong anti-vibration capability. It is functional, reliable and can be easily installed.
Product advantages
- The in-vehicle interface can operate reliably and stably in complex environments
- Video encoding H.265, H.264 optional
- Support 4G /5G , GPS function module
- Support one SD card
- Abundant peripheral interfaces
- Support external UPS battery life
- High scalability
PARAMETER
| Item | Parameter | Specification | |
| System | Language | English/Chinese | |
| OSD | Graphic User Interface(OSD menu) | ||
| Password | User password/Administrator password | ||
| Video | Input |
Support 4ch 1080P/720P/D1 video input Support 2ch 1080P AHD + 2ch 720P /2CH D1 video input Support 2ch 720P AHD + 2ch D1 video input |
|
| Output | 1ch video output(V-OUT), 1ch VGA video output | ||
| Display | 1CH/4CH display | ||
| Standard | PAL/NTSC ( PAL@60 frame 1080P; NTSC@60 frame 1080P ) | ||
| Image Compression | H.264 Main profile, 100fps | ||
| Audio | Input | 4CH audio input | |
| Output | 1ch audio output(A-OUT) | ||
| Recording Mode | Synchronous recording in audio&video | ||
| Image Processing & Storage | Video format | CIF / HD1 / D1 / 960H / 720P/1080P. | |
| Video Stream Standard | ISO14496-10 | ||
| Video Bit Rate(kbps) | CIF:1536Kbps ~ 128Kbps HD1/D1:2048Kbps ~ 400Kbps, 720P:4096Kbps ~ 512Kbps 1080P: 4096Kbps ~ 1024Kbps | ||
| 4 levels settings optional, highest: level 4; lowest: level 1 | |||
| Audio Bit Rate | 40KB/s | ||
| Storage | Support 1*SD card, Max 512GB | ||
| Alarm | Input | 3CH alarm input | |
| Output | 1CH alarm output, high level 12V output | ||
| Communication Port | RS232 Interface | Support 1 RS232 interface | |
| network interface | Support a 6 Pin header network interface, support access to local network and report to server,connect the IP cams. | ||
| USB2.0 Interface | Support 1*USB interface for software upgrading and record file copy | ||
| Wireless | 3G | 3G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) module optional | |
| 4G | 4G(FDD-LTE/TDD-LTE) module optional | ||
| WIFI | WIFI module(2.4/5.8GHz) optional | ||
| GPS | Support built-in GPS module, Geographical co-ordinates, driving speed can be written in coding flow, and uploaded via wireless(optional) | ||
| G-Sensor | Build-in G-Sensor | ||
| Software | PC Playback | Play back video on computer and analyze vehicle information from recording file | |
| CMS | Video preview, GPS uploading, alarm uploading, central command parameter configuration etc. via wireless | ||
| Software Upgrading | Support USB upgrading, SD card upgrading and CMS remote upgrading | ||

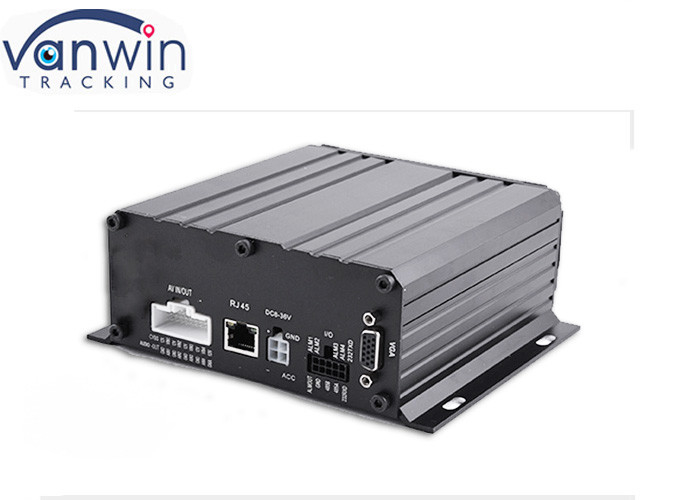

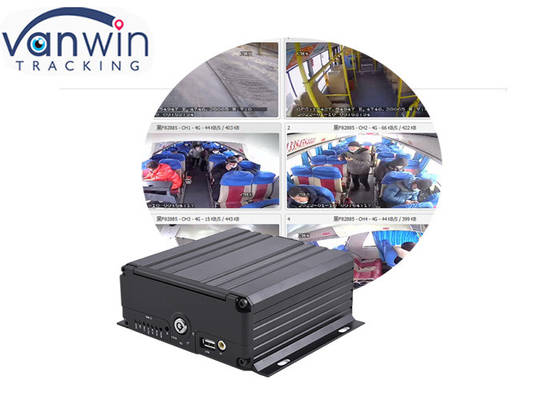

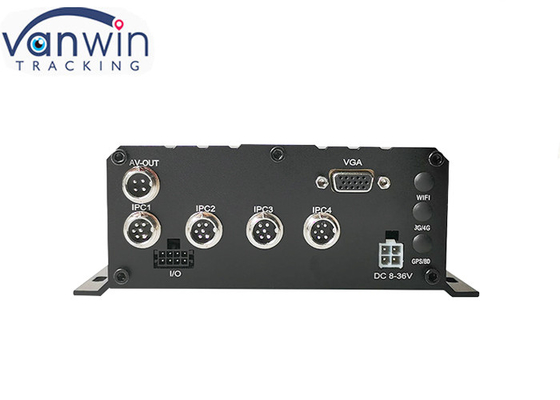

PRODUCT PHOTO
Platform Sceenshot
