GPS 4 Channel Mobile DVR With For Vehicle'S Fleet Management
Product Details:
Place of Origin: | China |
Brand Name: | Vanwin Tracking |
Certification: | CE ROHS |
Model Number: | VW904 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | Carton Box |
Delivery Time: | 5-15 days |
Payment Terms: | T/T Western union, paypal |
Supply Ability: | 1000pcs/Month |
Detail Information |
|||
Recording Mode: | Manual/Schedule/Motion Detection/Alarm | Power Supply: | DC12V |
---|---|---|---|
Network: | 3g 4g WIFI | Communication Interface: | Optional For 1CH RS232 Or 1CH RS485 |
OSD Interface: | Can External Connect To LCD And Set The System Specifications By Remote | Audio Compression: | G.726 |
Audio Bit Rate: | 8KB/S | Video Resolution: | 1080P/ 960P/ 720P/ D1/ HD1/ CIF |
Product Type: | HDD Mdvr 4ch | ||
Highlight: | GPS 4 Channel Mobile DVR,G.726 Audio 4 Channel Mobile DVR,DC12V GPS Mobile DVR |
Product Description
Product Description:
The 4CH HDD Automotive Recorder is an advanced 4 channel Mobile-DVR that is designed for use in automotive vehicles for recording high-quality audio and video. It is a 4 CH Vehicular-Video-Recorder that can store up to 4-channel audio and video data. It is equipped with audio compression technology G.726 and video bit rate of 800Kbps for 720P video. It also has a 4-channel audio input and 1-channel video output, as well as an OSD interface that can be connected to an external LCD to set the system specifications remotely. It is capable of recording audio and video in high quality and offers excellent performance and reliability.
Features:
- Product Name: 4 Channel HDD Mobile DVR
- Audio Output: 1 Channel
- Video Bit Rate: 800Kbps For 720P Video
- Communication Interface: Optional For 1CH RS232 Or 1CH RS485
- Video Output: 1 Channel
- Operating System: Linux
- Special Feature: Four-Channel-Automotive-Recorder, Four-Channel-Vehicular-Video-Recorder, Four-Channel-Vehicular-Video-Recorder
Product Parameter
Operating System | Linux | |
Language | English, Chinese or Customized language. | |
Video Compression | H.264 | |
OSD | Support time, date, vehicle ID, image, etc. | |
GUI | OSD Interface | Can external connect to LCD and set the system specifications by remote |
Video and Recording |
Video Input |
4CH 720P/960P/1080P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω |
Video Output |
1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω. Support 1CH full screen and 4CH division. |
|
Preview |
Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing |
|
Recording Resolution | Support 720P/960P/1080P/D1/HD1/CIF, support at maximum 4 Channels 1080P | |
Recording Quality | Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. | |
Video Rate |
PAL:100 fps,CCIR625line,50 scenes NTSC:120 fps,CCIR525line,60 scenes CIF:256Kbps - 1.5Mbps,8 grades image quality for optional HD1:600Kbps - 2.5Mbps,8 grades image quality for optional D1:800Kbps - 3Mbps,8 grades image quality for optional 720P:800Kbps - 4Mbps,8 grades image quality for optional |
|
Recording Mode |
Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc |
|
Audio | Audio Input | 4CH Aviation connector inputs |
Audio Output | 1CH Aviation connector output, Output level:1V - 2V | |
Compression format | G.726, Speed for 8KB/s | |
Alarm Input | 4CH level alarm inputs | |
Alarm Output | 1CH level signal output | |
Communication Interface | Optional for 1CH RS232 or 1CH RS485 | |
Wireless Transmission | Support built-in 4G wireless transmission, WCDMA, CDMA2000, | |
Location /G-sensor | Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route | |
Video Storage |
Storage | Support a 2T 2.5 -inch HDD and 1 256G SD card storage |
Upgrade Method | Support SD card local upgrade, remote upgrade automatically | |
File Format | H.264 general video format |

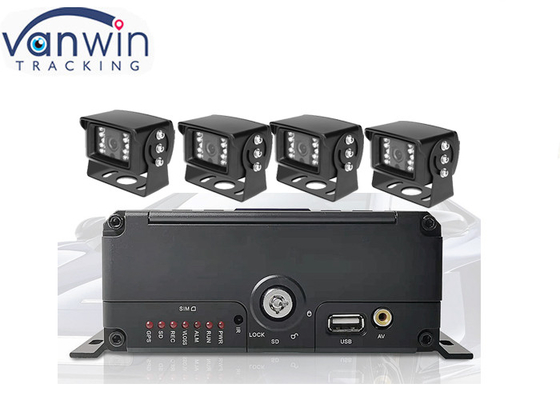

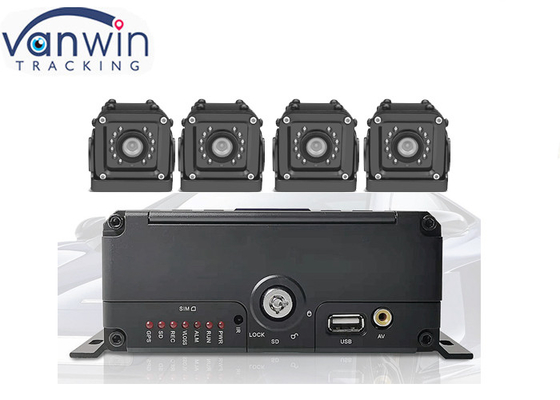

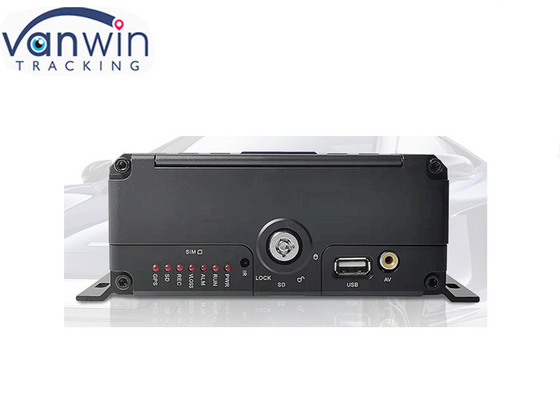

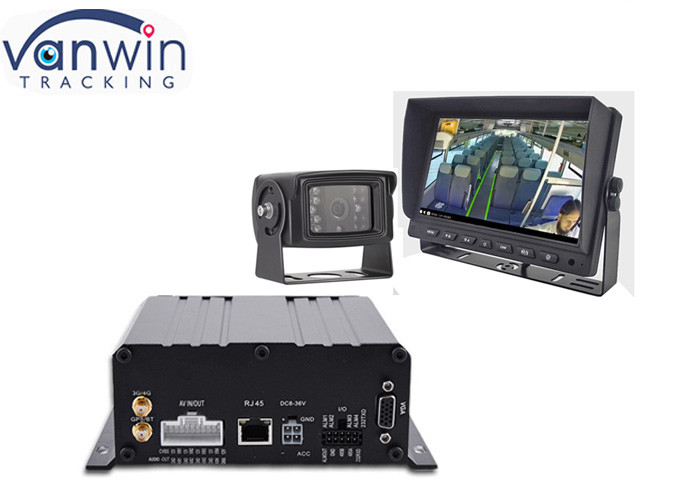

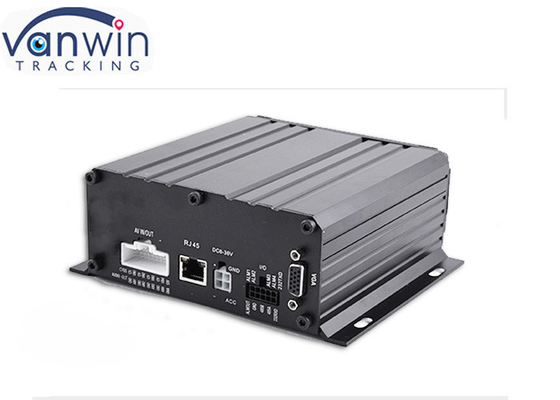

Product Photos
Support and Services:
- Technical Support:
- Providing 24/7 customer support to answer any questions related to the product.
- Providing technical advice and assistance to help customers troubleshoot and solve any issues with the product.
- Providing software updates and bug fixes to keep the product running smoothly.
- Service:
- Providing regular maintenance checks and service to keep the product in good condition.
- Providing warranty services to replace any defective parts.
- Providing on-site repair services if necessary.
FAQ:
Q1: What is Vanwin Tracking 4 Channel Mobile DVR?
A1: Vanwin Tracking 4 Channel Mobile DVR is a digital video recorder with 4 channel video input and one channel audio input. It is CE ROHS certified, with model number VW904, and made in China.
Q2: What is the minimum order quantity for Vanwin Tracking 4 Channel Mobile DVR?
A2: The minimum order quantity for Vanwin Tracking 4 Channel Mobile DVR is 1PC.
Q3: How is the Vanwin Tracking 4 Channel Mobile DVR packaged?
A3: The Vanwin Tracking 4 Channel Mobile DVR is packaged in a carton box.
Q4: How long does it take for Vanwin Tracking 4 Channel Mobile DVR to be delivered?
A4: It usually takes 5-15 days for Vanwin Tracking 4 Channel Mobile DVR to be delivered.
Q5: What are the payment terms for Vanwin Tracking 4 Channel Mobile DVR?
A5: The payment terms for Vanwin Tracking 4 Channel Mobile DVR are T/T Western union, paypal.
