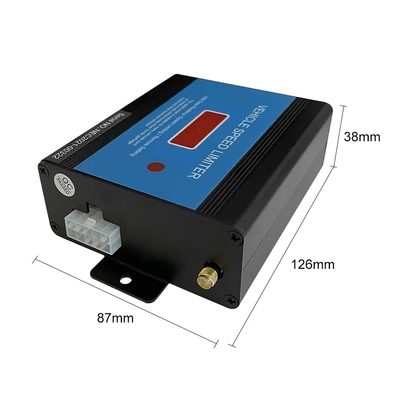

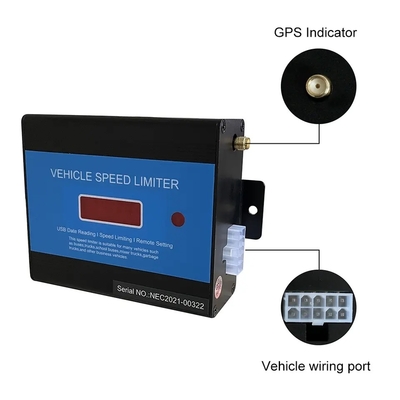

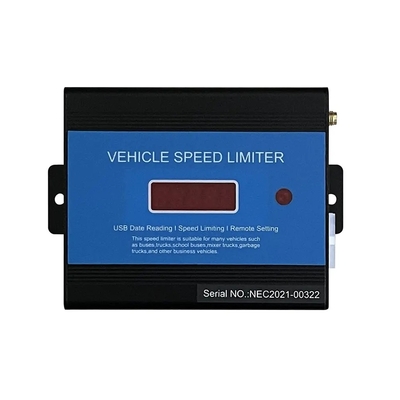

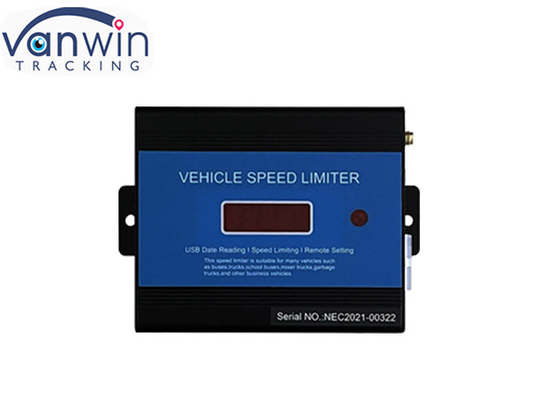

Overspeed Alarm Vehicle Speed Limiter GPS Car Speed Limiting Device 10 to 120km/h
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS/IEC/ECE |
| Model Number: | VW-3D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 peice |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plastic foam packing |
| Delivery Time: | 1-2 days for samples,5~7 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5000 pcs per day |
|
Detail Information |
|||
| Type: | Vehicle Speed Limiter | Speed Range: | 10 To 120km/h |
|---|---|---|---|
| Speed Limit Deviation: | ± 1km/h | Operating Voltage Range: | 9-28V |
| Rated Power Consumptio: | 2W | Certificate: | SONCAP/IEC/CE/FCC/ ROHS/ECE |
| Temperature Resistance: | + 85℃ | Speed Signal Source: | GPS And Speed Wire |
| Tamper Proof: | Support | ||
| High Light: | Overspeed Alarm Vehicle Speed Limiter,GPS Vehicle Speed Limiter,120km/H Car Speed Limiting Device |
||
Product Description
DC8V-36V Car UPS battery waterproof vandaproof Mobile DVR accessories UPS for MDVR
Introduction

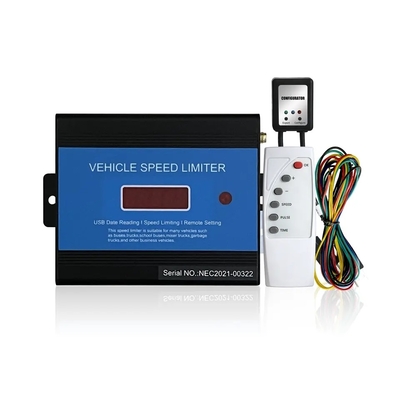

Car speed limiter remote control setting function, you can set the parameters, the driver can't change the speed limit value, managers hold the remote control to have the right to modify;
2.Car speed limiter widely applicable, can be used in the electronic accelerator pedal car on 12 v ~ 24 v.light volume;
3.with the power cord for short circuit design, built-in over current protection circuit, strong stability;
4.free maintenance, no mechanical contact, electronic control mechanical design features, installation at a time, a lifetime;
5.can force the speed limit speed, idling away, do not affect a torque and horsepower, safe speed limit, also can open voice and light warning;
6.limit speed down forcibly, within the speed limit the accelerator can free action;
7.with functions of intelligent learning step speed table, can be connected directly to all kinds of vehicle speed table, simple installation, also can equipped with GPS speed or speed sensor;
8.to memory live all kinds of parameters, a set of lifetime effective;
Certificate:
SONCAP: IAF Code :JI03CE
IEC Test report: UNI2015091704SR-01
CE certificate No,: CTB150702006E-ZS
FCC certificate No.: CTB150702006E
RoHs certificate No.: CTB150702001C-ZS
ECE certificate No.: 10R-058511
Application
Product Photos:
Wire Connection Diagram
Installation instructions
1. Line connection: the yellow line of the main material is link into car indicator signal lines.
2. The electronic throttle actuator‘s connection:
Red and black line for the actuator supply power line;
Measure with a voltmeter between electronic throttle and pedal voltage for 0.4 V, 0.7 V two lines, to cut the two lines,and take the actuator of 0.4 V, 0.7 V line string into. The series direction is: 0.4 V, 0.7 V for near the pedal, 0.4 V, 0.7 V for near the electronic throttle.
FAQ:
Q1. Are you manufacturer?
Yes, we are the lead manufacturer for Vehicle Speed limiter and forklift limiter alarm in China. Availability over 10 thousand sets speeding limiter one month. We have top engineers and skilled workers can customize products according to your request.
So we have cheap price and good quality!
Q2. How can I make payment?
We accept payment via T/T, Western Union,Paypal, L/C and MoneyGram.
Q3. What should I do if the products have some quality problem?
Within warranty period, if it is not man-made problem, we will offer you free replacement accessories
Q4. Can I order one piece for sample to test the quality?
Yes, We would like to offer you sample to test our quality and we recommend to check the sample before order.
Q5: Why choose Guangzhou Nine Chip? Any advantages?
(1) MUTUAL BENEFIT: Our offer will be reasonable, ourprice will be cheaper in the same quality.
(2) CUSTOMIZE: We can make the product as your request.We have Excellent engineers and skilled workers, can work out one to three new products to update our catalog every two months. We can also customize a new item for you within 20 days.
(3) OEM: (1)Print your Logo. (2)Design your packing box.
(4) MIX ORDER: We accept mix order, different model and small quantity order.
(5) AFTER SERVICE: (1) 1 Years Guarantee. (2)If some parts are broken, we will send new parts to repair after confirmed.
