4G GPS Dual SD Card 8 Channel Mobile DVR Recorder Monitoring WIFI For Truck / Taxi / Bus
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW8058HD |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | negotiated |
Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
Delivery Time: | 2-3 days for samples,15-30 days for large orders |
Payment Terms: | T/T or western Union or Paypal |
Supply Ability: | 5,000pcs per month |
Detail Information |
|||
Power Supply: | 8V-36V Wide Voltage | Network: | 3G/4G WCDMA/EVDO |
---|---|---|---|
Type: | 8CH Mobile MDVR/MNVR | Storage Card: | 1/2TB HDD /SD Card |
Network Port: | RJ45 | Video Compression: | H.265 |
Alarm: | 6CH Alarm Inputs, 2CH Alarm Output | Client Software: | PC And Mobile Phone Supported |
Audio Output: | 1 Channel VGA Video Output, 1 Channel Aviation Connector Video Output | Recording Storage: | 1080P 1.9G/hour/channel; 720P 0.8G/hour/channel |
Resolution: | 720P/1080P | Dimension: | 166mm*155mm*137mm |
High Light: | 8 Channel Mobile DVR For Truck,Dual SD 8 Channel Mobile DVR,4G GPS Mobile DVR Recorder |
Product Description
4G GPS Dual SD Card 8 Channel mobile dvr recorder Monitoring WIFI For Truck / Taxi / Bus
- H.265 video compression, multi code stream.
- Support 8CH 1080P/960P/720P HD real-time video inputs. Also, support 8CH analog cameras inputs..
- 1CH VGA output is optional.
- With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
- 8-36V wide voltage power supply, super low power consumption. With overload/ under voltage/ short-circuit/ reversing protection, support all vehicles.
- Support dual SD cards, at maximum 256G for single SD card
- With watchdog abnormal restart protection function, it can better protect the machine and video.
- Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
- Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
- Support 8CH alarming inputs and 1CH independent alarm input.
- Optional for 1CH RS232 Serial port or 1CH RS485 extension.
- Support GPS/G-Sensor.
- Support remote operation and monitoring by 4G.
- Support Wi-Fi and automatic data download.
- Support ministry of communications agreement, support SMS remote configuration and equipment control.
- Support voice broadcast, intercom and text schedule dispatch.
- Support fuel sensor, temperature sensor, POS, LED advertising screen.
- Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
- With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
- Support all vehicles, including bus, taxi, truck, school bus, etc.
- Extended function(Optional):ADAS+DMS (Advanced Driving Assistance System+Driver Monitoring System)
Main Specifications

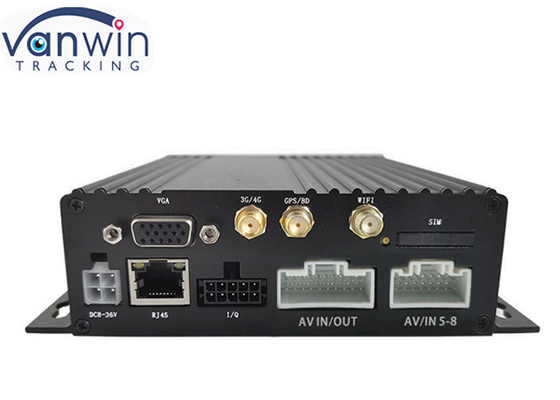

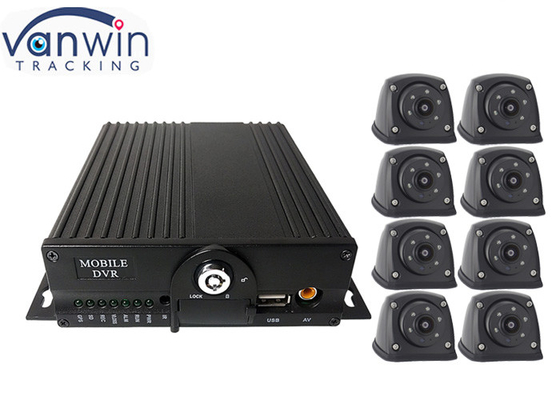

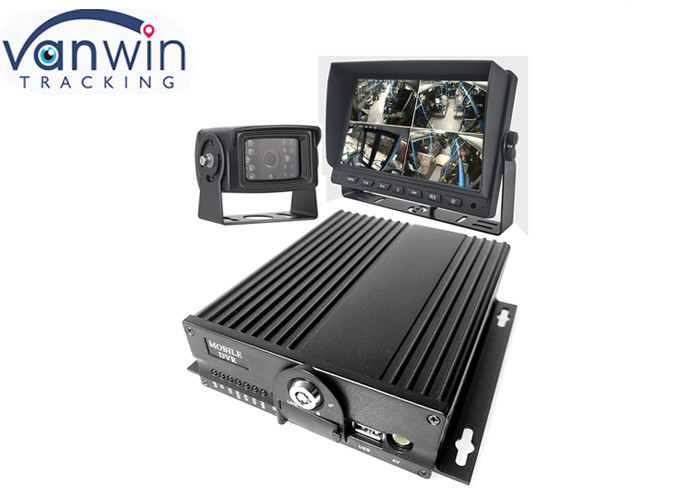

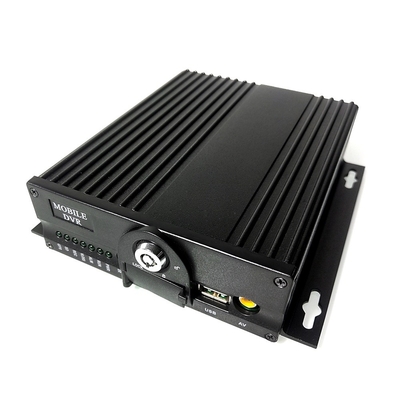

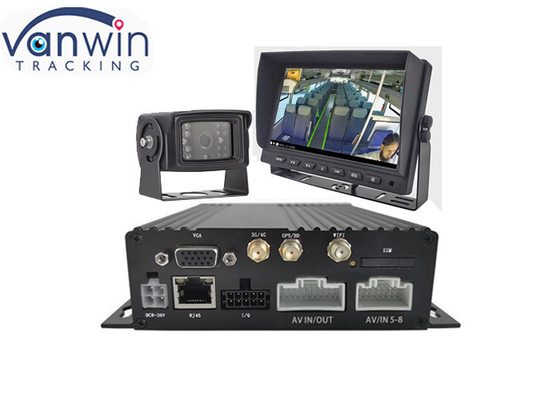

Product Photos
Application
How to install?
Advantage of 3G Mobile DVR
1. The original chip
Further Video Recorder, each of which uses the original industrial-grade chip, can ensure stable operation in the severe cold and heat environment.
2. Humanized USB Interface
Humanized design, easy to operate, user-friendly copy of information, insert mouse/U disk.
3. Support screen switching
Supporting reverse screen enlargement, four-way video switching, providing technical support.
4. Wide Voltage Design
Vehicle broadband power supply can work steadily in the range of DC 8V-36V voltage.
