AI Car DVR System BSD Alarm 360° 4CH 10.36 Inch Monitor With Recorder for Truck
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW1015-4AHD-BSD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD60-USD100 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Product Name: | Truck Touch Screen BSD AI Camera System | Type: | Reverse Camera, Monitor, Backup Camera, BSD |
|---|---|---|---|
| Power Input: | 9-36V DC | Screen Size: | 10.36 Inch |
| Screen Type: | IPS, LCD, Touch Screen, 4K | Feature: | BSD/detect People |
| Highlight: | 4CH Car DVR System,BSD Alarm Car DVR System,AI 4 Channel DVR For Car |
||
Product Description

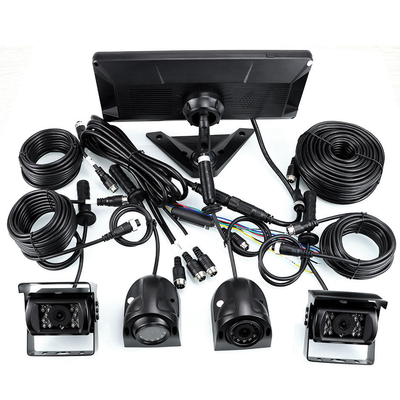

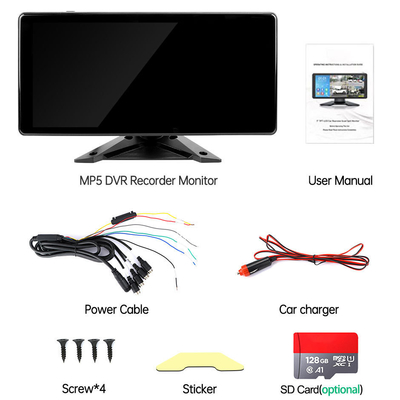

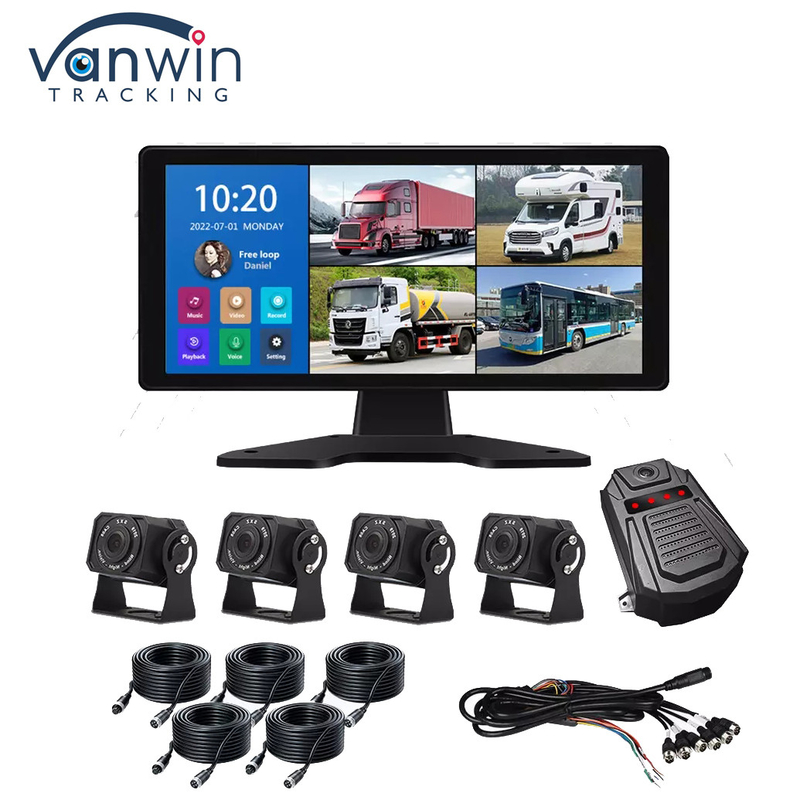

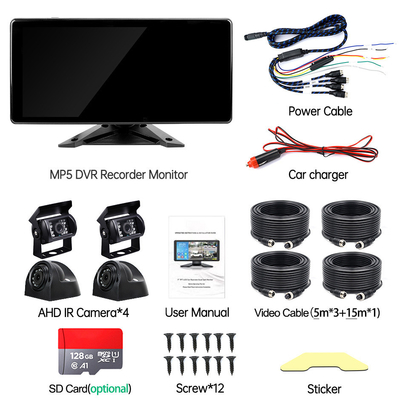

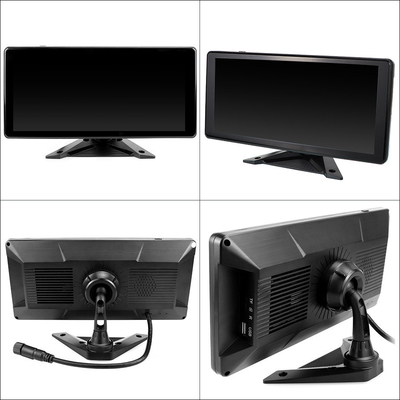

AI Car DVR System BSD Alarm 360° 4CH 10.36 Inch Monitor With Recorder for Truck
Specifications
|
Build-in DVR Monitor Specification
|
|
|
Model
|
7/10.1/10.36inch 4K 2.5D Touch Monitor System
|
|
Video Compression
|
H.264/H.265
|
|
Video Input
|
4ch AHD 1080P /1080N / 720P/720N input
|
|
4ch CVBS input
|
|
|
Compatible with CVBS and AHD signals
|
|
|
Compatible with PAL and NTSC systems
|
|
|
Video Output
|
40pin50pin(TTLLVDS )interface , 1024 * 600 resolution
|
|
Output Resolution
|
1920*1080, 1280*720, 1024*768, 800*600
|
|
Recording Resolution
|
1920*1080
|
|
Storage
|
32G-256G TF card
|
|
Display Mode
|
12 different display modes , support full screen mode of each channel
|
|
Boot Screen
|
H, Quad, 3 split mode, dual mode , power –off memory are optional
|
|
Record Mode
|
H, Quad, 3 split mode, Dual mode(default mode : QAUD);
|
|
Recording Quality
|
4K Ultra HD, 2K HD, 1080P Standard, 720P Ordinary are adjustable
|
|
Video Mode
|
Automatic record mode, delay-off 24h record mode
|
|
Video Playback
|
Online playback or playback on computer ( Use USB to back the files or use professional player )
|
|
Power Management
|
Adaptive wide voltage input, reverse short circuit / low voltage / high voltage protection , etc.
|
|
Working Voltage
|
DC 9V-36V
|
|
Power Consumption
|
<7W( doesn't include 4pcs cameras )
|
|
Working Temperature
|
-30°C~+70°C
|
|
Operation Mode
|
Button Key/touch (optional)
|
|
Language
|
English / German / French / Spanish / Italian / Portuguese / Traditional Chinese / Simplified Chinese/ Japanese
|
