4Channels 1080P 7" Touch Monitor Mobile DVR SD Card Storage With 4G GPS WiFi
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW-VA7 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | negotiated |
Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
Delivery Time: | 2-3 days for samples,15-30 days for large orders |
Payment Terms: | T/T or western Union or Paypal |
Supply Ability: | 5,000pcs per month |
Detail Information |
|||
Screen: | 7inch Touch Screen | Resolution: | 1080P/720P/D1/HD1/CIF, Optional |
---|---|---|---|
AI Function: | Built-in DMS And Face Algorithm | Serial Port: | Support 3 RS232, 1 RS485 |
Power Supply: | 8-32V DC | Storage: | 2*128GB SD Card |
Video Format: | H.265/H264 | Warranty: | 18 Months |
High Light: | 7" Touch Monitor Mobile DVR,4G 4 Channel DVR For Car,GPS 4 Channel DVR For Car |
Product Description

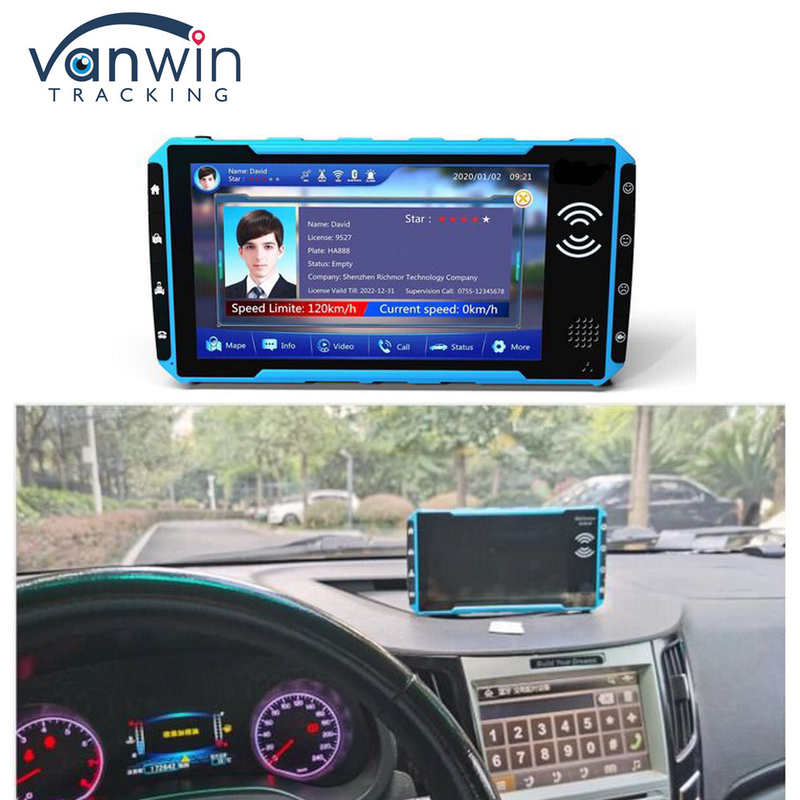

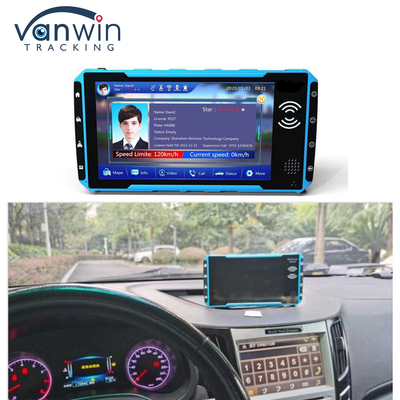

7" Touch Monitor 4CH 1080P Mobile DVR Taxi advertising camera SD Card storage with 4G GPS WiFi
Product features
- Processed by multi-processors to meet the needs of different customers. Multiple & powerful functions, strong adaptability. All adopt professional hardware solutions which are stable and reliable. Strong interface can support different needs of customization.
- The device supports max 4CH 1080P HD real-time video preview recordings. Using H.265 compression mode which code stream is just 50% of H.264. Compare with H.264, it can reduce 50% storage space with same image quality. Can meet all the needs of the overall monitoring and AI algorithm in the car.
- Supports 2CH audio input and intercom function, can realize remotely monitoring and voice intercom, can support PTT cluster intercom, 1CH Audio build in.
- Integrate face recognition function, adopt camera to analyze driver’s attendance and face. And early warn by calculating if the driver is a non-compliant driver, taking photos and uploading it to the monitoring center. The device algorithm is integrated in the hardware front end, the setting time is short, the identification is accurate and not affected by the network signal.
- Integrate RFID card recognition function, can realize driver attendance.
- Electronic operation certificate display. The electronic operation permit interface will be displayed when the Android screen was started. The main contents presented include: driver photo, name, number, vehicle license number, company, driver information QR code, etc. All the contents will be presented once driver make daily attendance by RFID. If the current driver does not match the preset driver through the face recognition function, a prompt message will appear on the interface. (Optional)
- Integrated GPS/BD module, which can upload route records, overspeed alarm, and realize positioning and navigation and other functions through integrated navigation software. Through the positioning module, multiple lines and areas can be integrated to realize driving line departure and area in and out alarms. And associated video to take and upload photos.
- Integrated call function, can be used to grab orders from call orders. Integrated one-button dialing or navigation, quickly contact customers and complete orders. Call record will be generated as log. (Optional)
- Terminal integrated passenger evaluation function with three levels.(optional)
- Optional to integrate driver driving behavior analysis function. Classify the driving behavior, and warn and upload dangerous driving behavior (fatigue driving, distraction, smoking, making phone calls, etc.)
- Optional to Integrated multimedia advertising function. The terminal can play multimedia advertisements (including audio, video, pictures), and can update the advertisements locally and remotely.
Specifications
Product Parameter | |||
Operating system | Android+LINUX | ||
CPU | Multi CPU | HIS Dual CPU | |
Dual CPU 1.3G | |||
LCD display | Screen Size | 7”inch TFT true color | |
Resolution | 1024*600 | ||
Angle of view |
75 degrees left horizontal, 75 degrees right horizontal Vertical up 70°, vertical down 70°(CR≥10) |
||
Touch screen | Capacitive touch screen | ||
Contrast | 600:1 | ||
Amount of light | 400cd/m² | ||
Response time | 16ms | ||
Authentication module | RFID Reading | According to ISO 14443 standard RFID read and write, support Type A card read and write, support TypeB card( second generation ID Card) ID read; Highway yard designated module | Optioanl |
Algorithm | AI algorithm | Built-in DMS and face algorithm | |
USD interface | USB interface | 2*USB interface, can use to upgrade and back up | |
Audio interface | Output | Built-in speaker, support TTS voice boardcast | |
Input | Built-in singel channel microphone | ||
AV | AHD Input | 6CH AHD Input | |
Buttons | Physical buttons | Video, navigation, home page, call, service evaluation | |
Interface | |||
Vehicle interface | Input/Output |
1CH detects ACC switch state input 5CH digital alarm input, 1CH annalog alarm input 1CH speed input,1CH CAN 3ch RS232 ,1CHRS4851 |
|
Power supply & Working environment | |||
Power supply | wide range voltage: DC 8-32V (Support 12V and 24V vehicles) | ||
Working current | ≤6W | ||
Sleeping current | <3mA | ||
The highest pressure | 100V/DC | ||
Anti-reverse power supply | >100V/DC | ||
Working temperature | -30°C ~ +70°C / RH 45% ~ 85% | ||
Storage environment | -40°C ~ +80°C / RH 30% ~ 90% | ||
Waterproof level | IP4X | ||
Software configuration | |||
Drive | Provide SDK(library form), API documentation, testing cases | ||
Secondary development | Support secondary development,C/C++,JAVA,Eclipse |
