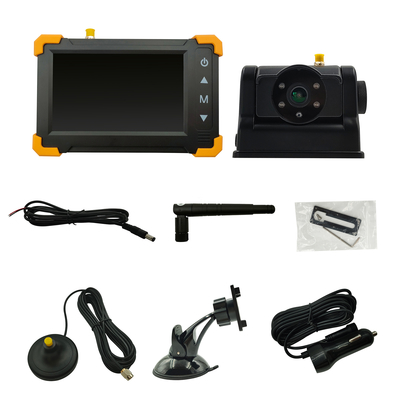

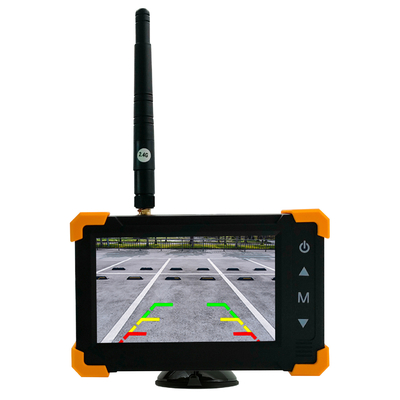

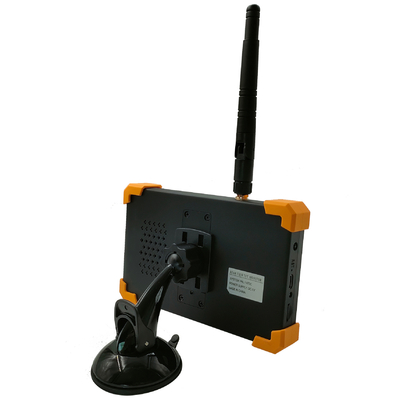

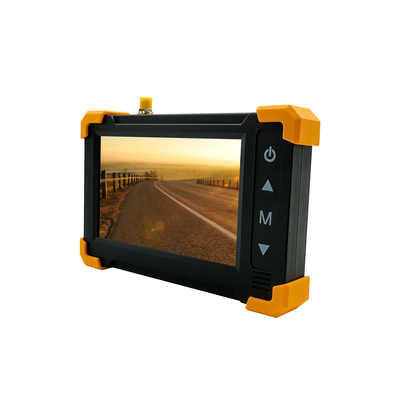

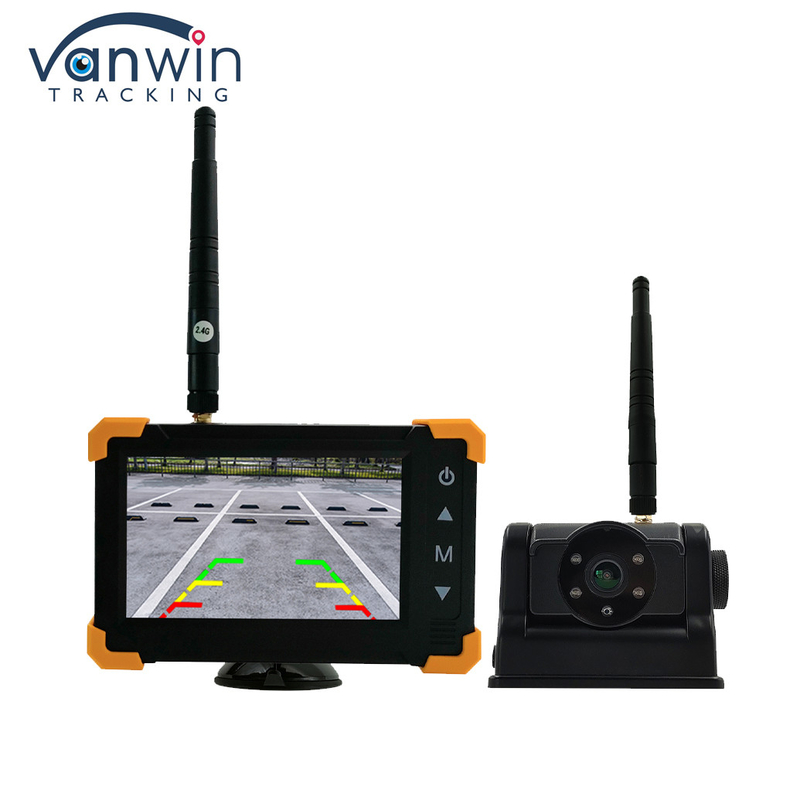

2.4G 5 Inch Wireless Monitor Camera Trailer Mini Car LCD Meter Monitor Kit, Built-in Battery
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-510MWHD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; Mini portable 4.3” 2.4G Digital Wireless Car Monitor + Car Reversing camera system with Bracket |
|
Detail Information |
|||
| Power Supply: | DC12-24V | Screen: | 5 Inch Digital Panel |
|---|---|---|---|
| AV Input: | Channel 2.4G Wireless Video Signal Input | Monitor Resolution: | 800*R.G.B*480 |
| Camera Resolution: | 1280*720px | 2.4G Transmission Distance: | 150M In Open Area |
| Built-in Battery: | Yes | Application: | Trailer, Trucks, Car |
| Warranty: | 12 Months | ||
| Highlight: | 2.4G Wireless Monitor Camera,5 Inch Wireless Monitor Camera |
||
Product Description
2.4G 5 Inch Wireless Monitor Camera Trailer Mini Car LCD Meter Monitor Kit, Built-in Battery
| 5″ 2.4G Digital Wireless Monitor (Built-in Battery) | |
| Specification | Model:VW-510MWHD |
| Screen ratio | 16:9 IPS |
| Screen resolution | 800*R.G.B*480 |
| Backlight | LED, brightness 500cd/m2 |
| Viewing angle | UP—85°,DOWN—85°,LEFT—85°,RIGHT—85° |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+80 ºC 95%RH MAX |
| Power supply | Tpyec connector, 5V |
| Delay time | 120mS |
| Working Time | 8H for continuous working |
| Charging time | 1A/3.5H |
| Battery Capacity | 2500mA |
| Wireless video | 1 channel HD wireless video input |
| Frequency | 2400 ~ 2483.5MHz * |
| Decompression mode | H.264 |
| Receive sensitivity | ,-89dBm@4MHZ |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission Distance | 150M in open area |
| Shockproof Level | 4G |
| Material | PC,Plastic injection molding |
| Power cable | Tpyec USB Charging Cable |
| Weight | 0.54KGS |
| Dimension | 148mm*94mm*20mm |
| Wireless Camera (built-in battery) | |
| Specification | |
| Resolution | 720P 1280*720px |
| Image Sensor | CMOS 1/2.7" |
| Viewing Angle | 140° |
| Transmission Distance | 150M in open area |
| System | N/P Automatically |
| Spread Spectrum | FHSS(Adaptive frequency hopping) |
| Transmission Bandwidth | 8MHz BER<1E-3 |
| Battery Capacity | 6400mA |
| Battery indicator | Support, 4PCS LED lights |
| Battery Charging Time | DC5.5,12~24V/6H |
| Working Time | 18H(under continuous working conditions) |
| Fully charaged standby time | Zero power consumption at standby situation |
| Camera Adjustable Angle | 0-100 degree |
| Frequency | 2400-2483.5MHZ |
| ON/OFF Mode | Long press to ON/OFF, short press to show battery status |
| Installation Mode | Magnet base adsorption installation |
| Night Vision | HD-infrated night vision |
| SNR | 46.5dB |
| Audio | Without (Optional) |
| Waterproof level | IP67 |
| Transmitting sensitivity | -89 dBm |
| Material | Black aluminium alloy |
