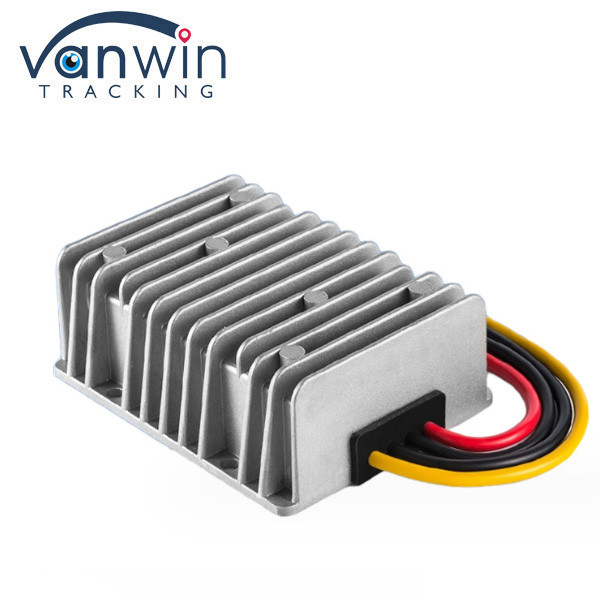

DC 24V To 12V 20A Step Down Buck Converter Car Power Supply Module
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-12V3A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 peice |
|---|---|
| Price: | $2 |
| Packaging Details: | plastic foam packing |
| Delivery Time: | 1-2 days for samples,15-30 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5000 pcs per day |
|
Detail Information |
|||
| Usage: | Vehicle Power Converter | Function: | Voltage Up Or Down |
|---|---|---|---|
| Input Voltage: | Less 39V Or Customized | Output Voltage: | Optional |
| Output Power: | Optional | Converting Efficiency: | Over 90% |
| Working Temperature: | -40 To 85 ℃ | Customization: | Yes,welcome |
| High Light: | DC 24V To 12V Buck Converter,Step Down Buck Converter |
||
Product Description
DC 24V to 12V 20A step down buck Converter car power supply Module
We can provide or customize all kinds of vehicle power converter up or down .The below specification is just for reference.
Main Features :
1. Industry grade converter, operating temperature: -40C ~ +80C.

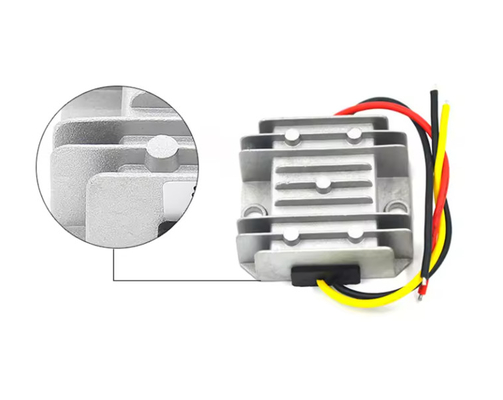

2. Casting aluminum case, injected with epoxy resin. So it is waterproof & anti-shock protection.
3. NO Reverse polarity protection ,please carefully connect it .
4. Auto-recovery when device is back to normal operating.
5. Power conversion efficiency: 90%
6. Non-isolated
- Input voltage: DC24V
- Output parameter: DC12V, MAX 20A
Notice this module can't work on 20A for a long time.just was the peak current.
Product Specifications
| Product Name | DC DC Converter 24V to 12V 5A / 10A Max | |
| Module Properties | non-isolated buck module | |
| Rectification | synchronous rectification | |
| Input | ||
| Input Voltage | DC 24V | |
| Input Voltage Range | DC 15-35V | |
| Output | ||
| Output Voltage | DC 12V | |
| Output Current | 5A / 10A Max, auto-adaption | |
| Output Power | 60W / 120W Max | |
| Conversion Efficiency | 90% | |
| Voltage regulation | ±1% | |
| Load regulation | ± 2% | |
| Ripple (Full load test) | < 150mV | |
| No-load current | < 100mA | |
| Working Temperature | -40~85℃ | |
| Waterproof Rating | IP68 | |
| Protection | Over-current protection | |
| Overheat protection | ||
| Output Short-circuit protection | ||
| Application |
GPS Navigation, Monitoring, MP3/MP4 DVD,LED bulb lights Electrical appliances, industrial equipment, telecommunications and so on. |
|
| Certification | CE/RoHS/FCC | |
| Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |

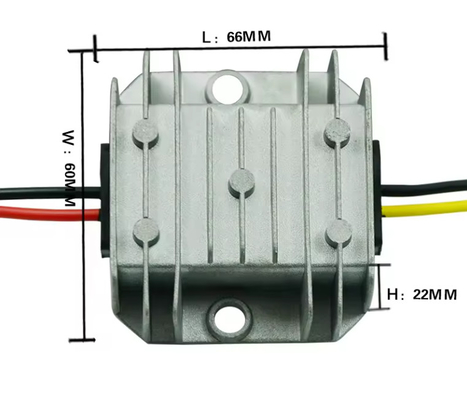

| Product Size (L x W x H) | 66*60*22mm | |
| Installation Cable Length | Input 12cm / Output 12cm | |
| Product Weight | 109g | |
| Warranty | 12 months, lifetime up to 100,000 hours | |
| Cooling Way | Free air convection | |
| OEM Service | Accept OEM logo/label/manual/packing box, Contact Fulree Now! | |
| Customized Service | Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now! | |
