Big LED Display Beep Alert Truck Parking Sensor System with 3 and 0.3-3.5M Detect Range
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW5305 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $5.9~$7 per piece |
| Packaging Details: | neutral package with box |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500,000 pcs per month; |
|
Detail Information |
|||
| Type: | 2M-3.5M-5M-10M Heavy Duty Anti-collision Parking Sensor Kit | Sensor: | Ultrasonic Parking Sensors |
|---|---|---|---|
| Detect Range: | 0.3~3.5M | Car Make: | Universal For All Cars |
| Voltage: | 12-36V | Waterproof: | IP66 |
| Shockproof: | 10G | Car Make: | Heavy Duty Vehicles |
| Sensor: | 4pcs, With Metal Bracket | LED Display: | Distance Display, And Light Alarm |
| Packing: | Export Carton | ||
| Highlight: | Beep Alert Truck Parking Sensor System,0.3-3.5M Truck Parking Sensor System |
||
Product Description
Factory supply 3 years warranty 0.3-3.5m detection truck parking sensor system, big led display with beep alert
Specification
Truck/Bus/Lorry/Vans, etc. Parking Sensor System
A, 0.4m-3.5m detection parking sensor system suitable for all kinds of trucks, large vehicles, buses, construction
machinery, off-road machinery etc. With body within 10 meters.
B, LED monitor display Time while driving forward, and detect obstacles distance and direction precisely and display on the LED monitor automatically while reversing
C, Control box with PCABS casing, with waterproof/anti-shock/anti-interference design
D, LED display monitor with built in buzzer alarm or human voice alarm
E, Detachable sensor with water resistant connector, with anti-collision design, with rubber/metal sensor bracket optional
F, Cable: 6PIN waterproof, anti-shock, anti-interference design
Optional:
with 0.3-5m sensor detection range optional
with 0.3-10m sensor detection range optional
with beep alarm or lady voice alarm optional
Sensor with rubber or clip or embed metal bracket optional

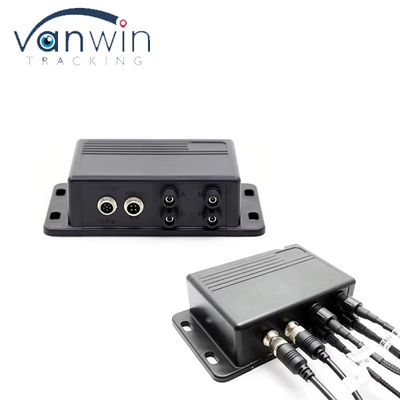

Control Box spec
Rated voltage: 24V
Rated Power: <8W
detection range: 0.4 ~ 3.5M Max.
Display Resolution: 0.1m
Detection angle: single angle 70 ° ± 15 °
Operating Temperature: -40 ° C ~ +80 ° C
Waterproof: IP66
Shockproof: 10G
Sensor detection distance:
Concrete wall: 11.48ft(3.5m)
Vehicle: 9.84-11.48ft(3m-3.5m)
Person: 9.84ft(3m)
Post(75mm diameter): 7.87ft(2.4m)
Single Sensor detection angle: 80 ° ± 15 ° U/D/L/R
Waterproof rate: IP67

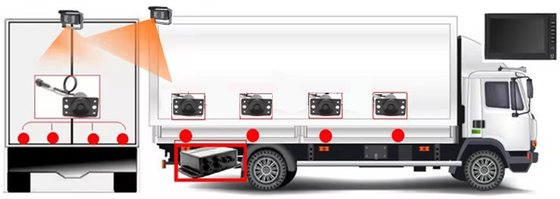

Sensor installation height: 0.6M--1.3M
Sensor installation space between two sensors: 0.2M--0.3M
Sensor with metal bracket/rubber bracket optional
Packaging included:
Control box x 1
Detachable Sensor x 4
2.25m sensor cable x 4 (3.75m/4.25m optional)
LED display x 1
10m LED display monitor cable x 1 (10m, 15m, 20m optional)
0.5m power cable x 1
