0.4-5m Detection Range Anti-Collision Radar System with Big LED Display and Beep Alert
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW5305 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $5.9~$7 per piece |
| Packaging Details: | neutral package with box |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500,000 pcs per month; |
|
Detail Information |
|||
| Type: | 2M-3.5M-5M-10M Heavy Duty Anti-collision Parking Sensor Kit | Sensor: | 4pcs, With Metal Bracket |
|---|---|---|---|
| Detect Range: | 0.4-5M Range | Power: | Less Than 8W |
| Voltage: | 12-36V | Waterproof: | IP66 |
| Shockproof: | 10G | Control Box: | PC ABS Box |
| Optional Distance: | 0.3/0.6/1m/3m~3.5m/5m/10m | Packing: | Export Carton |
| Highlight: | Beep Alert Anti-Collision Radar System,LED Display anti-collision radar system |
||
Product Description
0.4-5m detection range anti-collision radar system with big LED display, beep alert or voice alarm in English optional
Specification

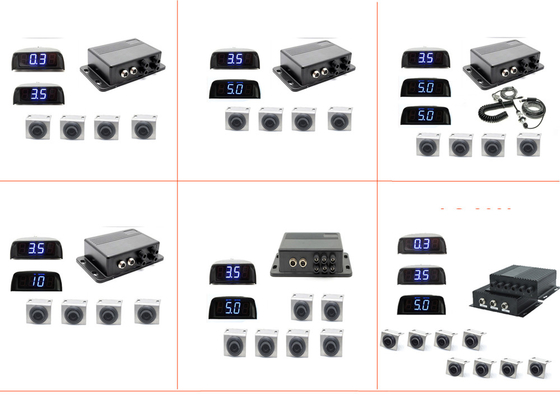

2M, 3.5M, 5M adjustable Heavy duty anti-collision radar system with LED monitor display
1, 0.3-5m range detection high sensitive sensor
2, Industrial design metal housing control box.
3, Beep alert 5steps
4, DC12-32V wide operation voltage for all vehicles
5, Sensor with rubber or metal bracket optional
6, Waterproof, anti-shock, anti-interference can work in harsh environment
7, Ideal for various vehicles for back side blind zone detection
Control Box spec
Rated voltage: 12-32V
Rated Power: <8W
detection range: 0.43~ 5m
Display Resolution: 0.1m
Detection angle: single angle 70 ° ± 15 °
Operating Temperature: -40 ° C ~ +80 ° C
Waterproof: IP66
Shockproof: 10G
Sensor detection distance:
Concrete wall: 16.4ft(5m)
Vehicle: 16.4ft(5m)
Person: 11.48ft(3.5m)
Post(75mm diameter): 9.18-9.84ft(2.8-3.0m)
Single Sensor detection angle: 80 ° ± 15 ° U/D/L/R
Waterproof rate: IP67

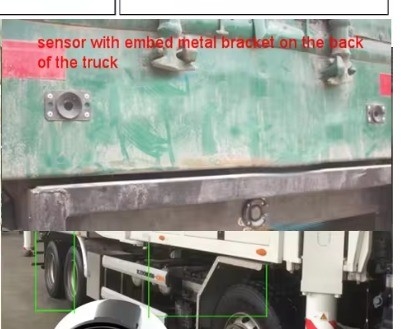

Sensor installation height: 0.6M--1.3M
Sensor installation space between two sensors: 0.2M--0.3M
vehicle width ≥3M can install 6 sensors

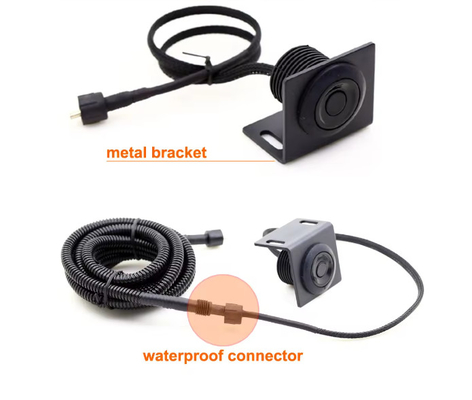

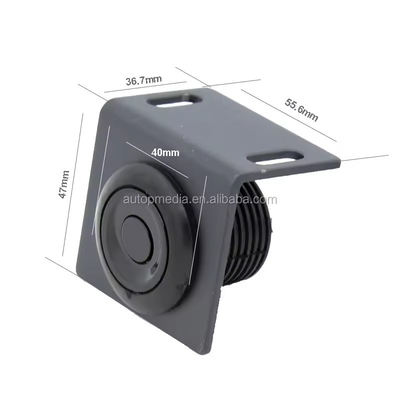

Sensor with metal bracket/rubber bracket optional
Sensor extension cable <50M

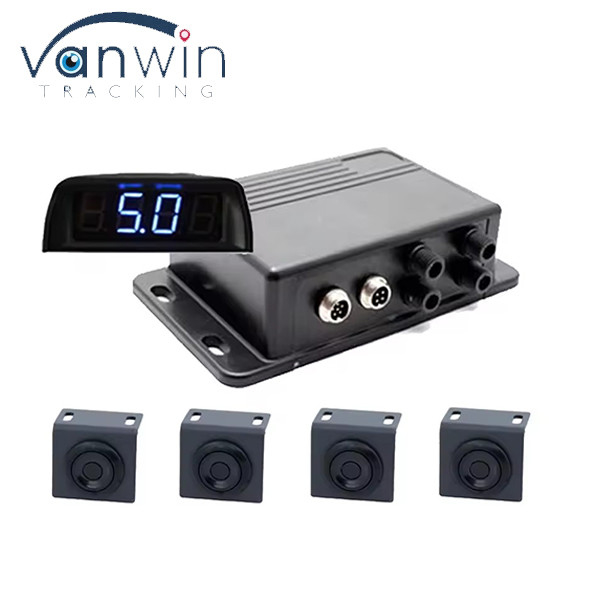

Packaging
- control box x 1
- LED display x 1
- sensor x 4
- 2.25m sensor cable x 4
- 15m video cable x 1
