8-Channel Hard Disk SD Card Mobile DVR H.264 Car MDVR for Vehicle Safety Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE FCC ROHS |
| Model Number: | VW9504 9508 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD300 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Product Name: | AI MDVR Video Recorder | Alarm Input: | 8CH Level Alarm Inputs |
|---|---|---|---|
| Compression Format: | G.726, Speed For 8KB/s | Audio Input: | 8CH Aviation Connector Inputs |
| Output Voltage: | +12V@1.5A,+5V@1.5A | Input Voltage: | DC:+8V - +36V |
| File System: | FAT32 Exclusive File System | Consumption: | Normal Working < 14W, Standby < 0.5W |
| Highlight: | Vehicle Safety Monitoring Mobile DVR,H.264 Mobile DVR,8 Channel Mobile DVR |
||
Product Description

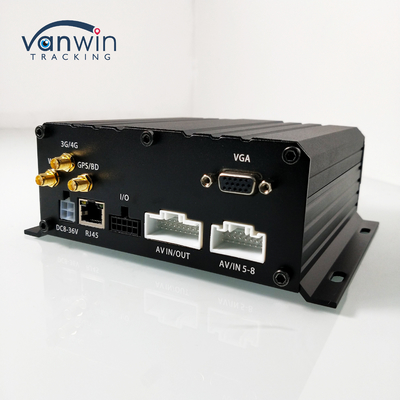

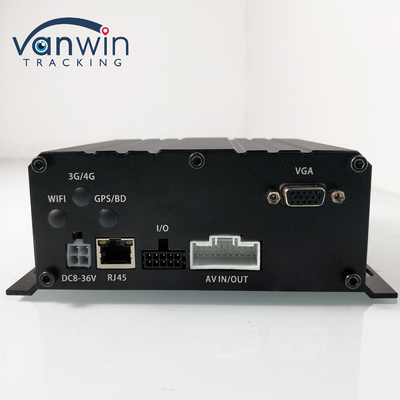

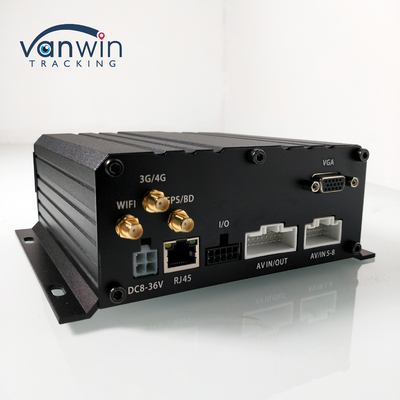

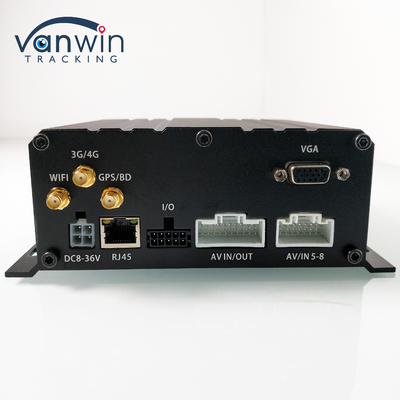

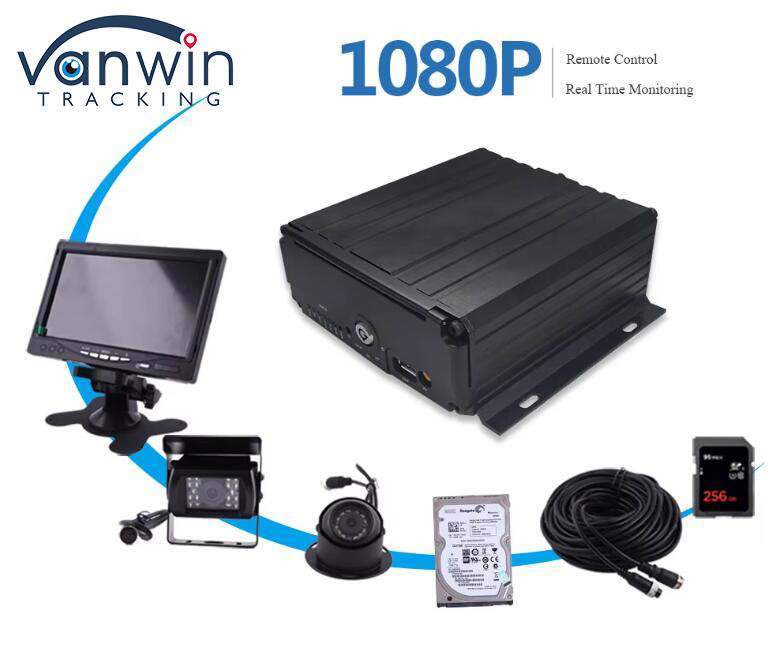

AI MDVR Local Recorder AHD 1080P 8-Channel Hard Disk SD Card Mobile DVR H.264 Car MDVR
AI Recording MDVR Products Description
1.H.265 video compression, multi code stream.
2.Support 8CH 1080/720P HD real-time video inputs. Also, support 8CH analog cameras inputs or
2.Support 8CH 1080/720P HD real-time video inputs. Also, support 8CH analog cameras inputs or
compound inputs for 2CH HD cameras and 2CH analog cameras.
3.1CH VGA output is optional.
4.With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation
3.1CH VGA output is optional.
4.With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation
problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the
data completed and stable.
5.8-36V wide voltage power supply, super low power consumption. With overload/ under voltage/
5.8-36V wide voltage power supply, super low power consumption. With overload/ under voltage/
short-circuit/ reversing protection, support all vehicles.
6.Support a 2T 2.5 -inch HDD and 1 512G SD card storage
7.With watchdog abnormal restart protection function, it can better protect the machine and video.
8.Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
9.Various video recording modes to meet different demands, such as automatic recording, manual recording,
6.Support a 2T 2.5 -inch HDD and 1 512G SD card storage
7.With watchdog abnormal restart protection function, it can better protect the machine and video.
8.Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
9.Various video recording modes to meet different demands, such as automatic recording, manual recording,
alarm recording, etc.
10.Support 8CH alarming inputs and 1CH independent alarm input.
11.Optional for 1CH RS232 Serial port or 1CH RS485 extension.
12.Support GPS/G-Sensor.
13.Support remote operation and monitoring by 4G.
14.Support Wi-Fi and automatic data download.
15.Support ministry of communications agreement, support SMS remote configuration and equipment control.
16.Support voice broadcast, intercom and text schedule dispatch.
17.Support fuel sensor, temperature sensor, POS, LED advertising screen.

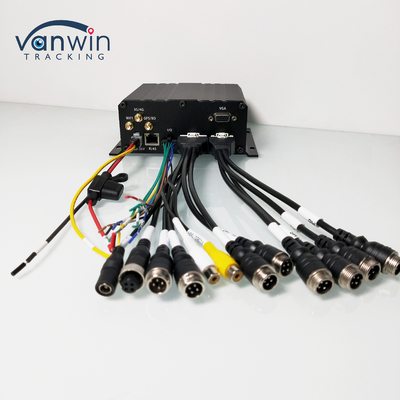

18.Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.

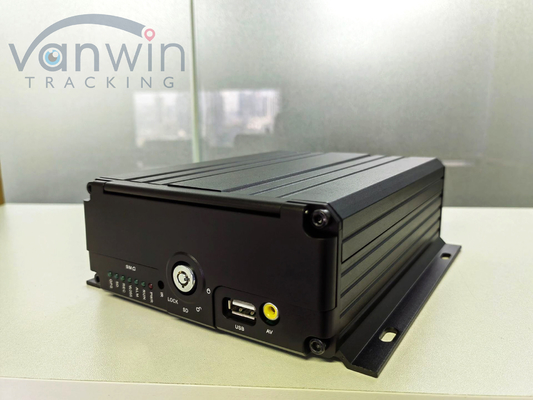

19.With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
20.Support all vehicles, including bus, taxi, truck, school bus, etc.
10.Support 8CH alarming inputs and 1CH independent alarm input.
11.Optional for 1CH RS232 Serial port or 1CH RS485 extension.
12.Support GPS/G-Sensor.
13.Support remote operation and monitoring by 4G.
14.Support Wi-Fi and automatic data download.
15.Support ministry of communications agreement, support SMS remote configuration and equipment control.
16.Support voice broadcast, intercom and text schedule dispatch.
17.Support fuel sensor, temperature sensor, POS, LED advertising screen.
18.Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
19.With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
20.Support all vehicles, including bus, taxi, truck, school bus, etc.
Surveillance Video Recorder Product Parameter Table:
|
Operating System
|
Linux
|
|
|
Language
|
English, Chinese or Customized language.
|
|
|
Video Compression
|
H.265
|
|
|
OSD
|
Support time, date, vehicle ID, image, etc.
|
|
|
GUI
|
OSD Interface
|
Can external connect to LCD and set the system specifications by remote
|
|
Video and Recording |
Video Input
|
8CH 1080P/960P/720PAHD/Analog/Compound video input, aviation connector,
1.0Vp-p, 75Ω |
|
|
Video Output
|
1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.
Support 1CH full screen and 8CH division. |
|
|
Preview
|
Single/8CH Pictures Preview, support full screen of event trigger or
back view of car reversing |
|
|
RecordingResolution
|
Support 1080P/960P/720P/D1/HD1/CIF, support at maximum 8 Channels 1080P
|
|
|
RecordingQuality
|
Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest.
|
|
|
Video Rate
|
PAL:100 fps,CCIR625line,50 scenes
NTSC:120 fps,CCIR525line,60 scenes CIF:256Kbps - 1.5Mbps,8 grades image quality for optional HD1:600Kbps - 2.5Mbps,8 grades image quality for optional D1:800Kbps - 3Mbps,8 grades image quality for optional 720P:800Kbps - 4Mbps,8 grades image quality for optional 1080P:2Mbps - 6Mbps,8 grades image quality for optional |
|
|
Recording Mode
|
Default automatic video recording, support ignition video recording,
schedule video recording, alarm video recording, etc |
|
Audio
|
Audio Input
|
8CH Aviation connector inputs
|
|
|
Audio Output
|
1CH Aviation connector output, Output level:1V - 2V
|
|
|
Compression format
|
G.726, Speed for 8KB/s
|
|
Alarm Input
|
8CH level alarm inputs
|
|
|
Alarm Output
|
1CH level signal output
|
|
|
Communication Interface
|
Optional for 1CH RS232 or 1CH RS485
|
|
|
Wireless Transmission
|
Support built-in 4G wireless transmission, WCDMA, CDMA2000,
Support expansion built-in/external WIFI transmission, compatible with GPRS, EDGE |
|
|
Location /G-sensor
|
Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route
|
|
|
Video Storage |
Storage
|
Support a 2T 2.5 -inch HDD and 1 512G SD card storage
|
|
|
UpgradeMethod
|
Support SD card local upgrade, remote upgrade automatically
|
|
|
File Format
|
H.265general video format
|
|
|
File System
|
FAT32 exclusive file system
|
|
Video Playback |
Video Search
|
Search recorded video files by recording time and recording method
|
|
|
Playback
|
Support at max 6 channel synchronous playback, suspend, forward, backward
|
|
|
|
Support 2/4/8/16 times speed forward or backward
|
|
Security Management
|
User Password or administrator password management, support screen locked
|
|
|
Expansion functions
|
TTS Voice broadcast
|
Support TTS voice broadcast
|
|
|
Series port expansion
|
Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc
|
|
Power and
Consumption |
Power Management
|
Self-adaptive wide voltage input, with protect functions for overload, under voltage, short circuit, reversing connection, etc
Support time setting startup/shutdown, delayed power off function |
|
Power and Consumption |
Input Voltage
|
DC:+8V - +36V
|
|
|
Output Voltage
|
+12V@1.5A,+5V@1.5A
|
|
|
Power-off Protection
|
UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off.
|
|
|
Consumption
|
Normal working < 14W, standby < 0.5W
|
|
Working environment
|
Temperature
|
-20℃- +70℃
|
|
|
Humidity
|
20% - 80%
|
|
SD Card Type Series
|

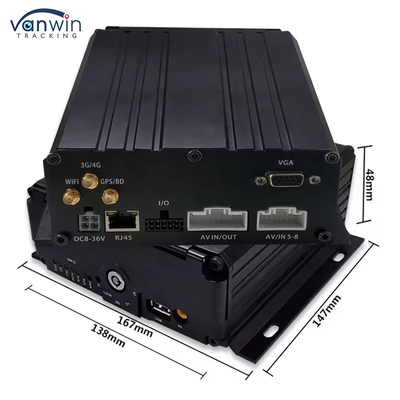

Dimension
|
150*137*60MM
|
|
|
Weight
|
1.65KG
|
DVR Car Video Recorder Our Services
1.We have our own factory to better protect your interests.
2. Small orders is acceptable. .
3. Our sales staff are trained to serve .
4. OEM, ODM and other custom is welcome.
5. We can provide samples.
2. Small orders is acceptable. .
3. Our sales staff are trained to serve .
4. OEM, ODM and other custom is welcome.
5. We can provide samples.
DVR FAQ
Q1.could you provide OEM&ODM service?
Yes,We are focusing on improving video processing technology and video analyze technology ,provide the advanced monitor
products,technical solution and professional premium service world-wide,offer OEM&ODM service.Also our R&D team have rich
experience in ODM&OEM.
Q2.Are you manufacturer or treading company?
We are a manufacturer located in Shenzhen,China,you are welcomed to visit our factory.
Q3.How does you ensure the quality of products?
All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk
produce, functional test, burn-in test, appearance inspection.
Q4.Do you offer free sample?
Yes, we offer free samples. But you would pay sample fee firstly and sample fee will be returned when massive order is placed.
Q5.MOQ for products
For the first order, we have no limit for the quantity.
Q6.Payment Terms
T/T, Western Union, PayPal
Q7.Lead Time
1. Sample order can be delivered from our factory in 1-3 working days.
2. General order can be delivered from our factory in 3-5 working days.
3. Big order can be delivered from our factory in 15-30 working days at most.
Q8.Technical Support
We have strong R&D team to support our customers, and if you have any question for the technology of our products, please email
Yes,We are focusing on improving video processing technology and video analyze technology ,provide the advanced monitor
products,technical solution and professional premium service world-wide,offer OEM&ODM service.Also our R&D team have rich
experience in ODM&OEM.
Q2.Are you manufacturer or treading company?
We are a manufacturer located in Shenzhen,China,you are welcomed to visit our factory.
Q3.How does you ensure the quality of products?
All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk
produce, functional test, burn-in test, appearance inspection.
Q4.Do you offer free sample?
Yes, we offer free samples. But you would pay sample fee firstly and sample fee will be returned when massive order is placed.
Q5.MOQ for products
For the first order, we have no limit for the quantity.
Q6.Payment Terms
T/T, Western Union, PayPal
Q7.Lead Time
1. Sample order can be delivered from our factory in 1-3 working days.
2. General order can be delivered from our factory in 3-5 working days.
3. Big order can be delivered from our factory in 15-30 working days at most.
Q8.Technical Support
We have strong R&D team to support our customers, and if you have any question for the technology of our products, please email
to us, reply will be sent to you immediately; Also if you have any doubt for the information on our website or any feedback for the
quality of our products, please email to us, and thanks for your all comments in advance.
Any questions,you could send me email to have a talk,thank you!
quality of our products, please email to us, and thanks for your all comments in advance.
Any questions,you could send me email to have a talk,thank you!
Want to Know more details about this product
