8 Channel 1080P AHD Mobile DVR Vehicle CCTV MDVR 2TB HDD For Truck Taxi Bus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW6808 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | USD100-USD300 |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 1000pcs per month; |
|
Detail Information |
|||
| Model Number: | 8-Channel | Storage: | HDD SSD+SD, Max 2TB+256GB |
|---|---|---|---|
| Resolution: | 1080P/720P | Power Input: | DC 8V~36V |
| Applicable: | Buses, Taxis, Trucks, Trains, Ships, Special Work Vehicles | Language: | English/Chinese/Russian/French/Spanish Etc |
| Type: | 8Channel MDVR | Warranty: | 1 Year |
| Highlight: | 1080P AHD Mobile DVR,Truck Taxi Bus Mobile DVR,2TB HDD Mobile DVR |
||
Product Description

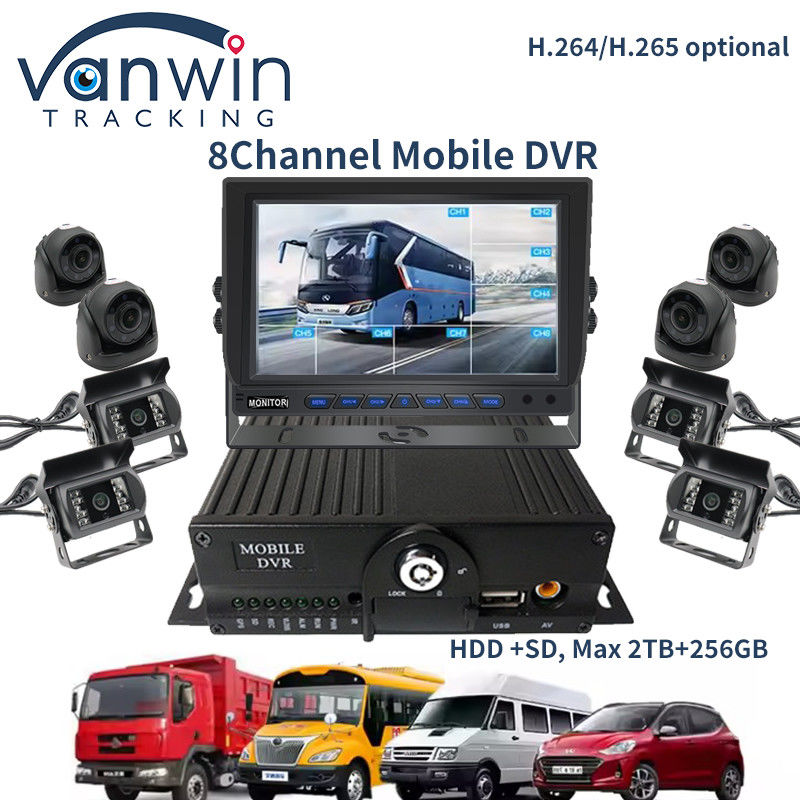

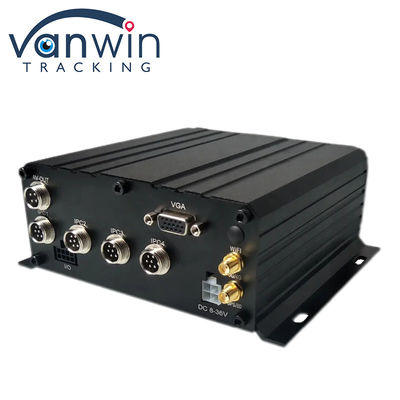

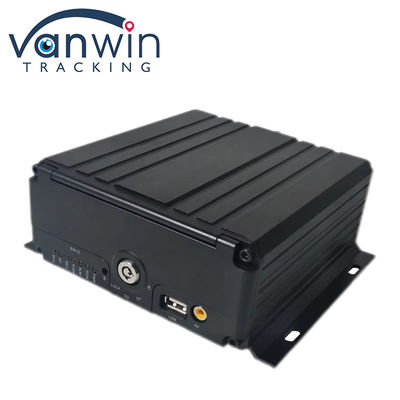

8 Channel 1080P AHD Mobile DVR Vehicle CCTV MDVR 2TB HDD SSD For Truck Taxi Bus
Product Description
The 8 Channel 1080P AHD Card Mobile DVR is a cutting-edge video surveillance solution designed for mobile environments, making it ideal for buses, trucks, and other vehicles. This robust device allows for real-time recording and playback of video footage from up to 8 channels, ensuring comprehensive coverage and security.
8 Channel 1080P AHD Mobile DVR Key Features:
-
8 Channel Video Input: Supports up to 8 cameras, providing extensive monitoring capabilities for various vehicle types.
-
High-Definition Recording: Captures clear and detailed footage in high resolution, ensuring that every detail is recorded.
-
Mobile Compatibility: Specifically designed for mobile applications, with shock resistance and temperature tolerance to withstand harsh conditions.
-
Remote Access: Enables users to access live feeds and recorded footage remotely via a secure internet connection, enhancing situational awareness.
-
Multiple Storage Options: Supports various storage mediums, including HDD, SSD, and SD cards, allowing for flexible storage solutions.
-
GPS Tracking: Built-in GPS functionality provides real-time location tracking, helping to monitor vehicle routes and ensure safety.
-
User-Friendly Interface: Easy-to-navigate interface for quick setup and operation, suitable for users of all technical levels.
-
Advanced Motion Detection: Features intelligent motion detection to reduce false alarms and optimize recording times.
-
Playback and Backup Options: Convenient playback features and multiple backup methods, including USB and network storage.
8 Channel MDVR Parameter
| Operating System | Linux | ||
| Language | English, Chinese or Customized language. | ||
| Video Compression | H.264 H.265 | ||
| OSD | Support time, date, vehicle ID, image, etc. | ||
| GUI | OSD Interface | Can external connect to LCD and set the system specifications by remote | |
|
Video and Recording |
Video Input | 8CH 1080P/960P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω | |
| Video Output |
1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω. Support 1CH full screen and 8CH division. |
||
| Preview |
Single/8CH Pictures Preview, support full screen of event trigger or back view of car reversing |
||
| Recording Resolution | Support 1080P/960P/720P/D1/HD1/CIF, support at maximum 8 Channels 1080P | ||
| Recording Quality | Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. | ||
|
Video Rate |
PAL:100 fps,CCIR625line,50 scenes NTSC:120 fps,CCIR525line,60 scenes CIF:256Kbps - 1.5Mbps,8 grades image quality for optional HD1:600Kbps - 2.5Mbps,8 grades image quality for optional D1:800Kbps - 3Mbps,8 grades image quality for optional 720P:800Kbps - 4Mbps,8 grades image quality for optional 1080P:2Mbps -6Mbps,8 grades image quality for optional |
||
| Recording Mode |
Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc |
||
| Audio | Audio Input | 8CH Aviation connector inputs | |
| Audio Output | 1CH Aviation connector output, Output level:1V - 2V | ||
| Compression format | G.726, Speed for 8KB/s | ||
| Alarm Input | 8CH level alarm inputs | ||
| Alarm Output | 1CH level signal output | ||
| Communication Interface | Optional for 1CH RS232 or 1CH RS485 | ||
| Wireless Transmission | Support expansion built-in/external WIFI transmission, compatible with GPRS, EDGE | ||
| Location /G-sensor | Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route | ||
|
Video Storage |

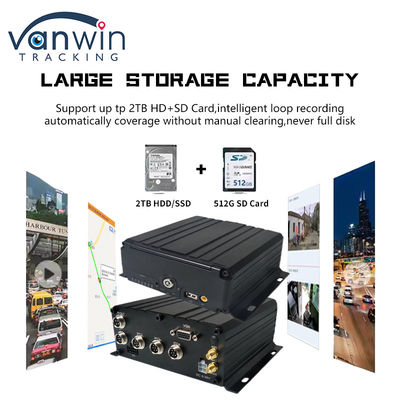

Storage | Support a 2T*2.5 -inch HDD and 1*256G SD card storage | |
| Upgrade Method | Support SD card local upgrade, remote upgrade automatically | ||
| File Format | H.264 general video format | ||
| File System | FAT32 exclusive file system | ||
|
Video Playback |
Video Search | Search recorded video files by recording time and recording method | |
| Playback |
Support at max 8 channel synchronous playback, suspend, forward, backward Support 2/4/8/16 times speed forward or backward |
||
| Security Management | User Password or administrator password management, support screen locked | ||
| Expansion functions | TTS Voice broadcast | Support TTS voice broadcast | |
| Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | ||
|
Power and Consumption |
Power Management |
Self-adaptive wide voltage input, with protect functions for overload, under voltage, short circuit, reversing connection, etc Support time setting startup/shutdown, delayed power off function |
|
|
Power and Consumption |
Input Voltage | DC:+8V - +36V | |
| Output Voltage | +12V@1.5A,+5V@1.5A | ||
| Power-off Protection | UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off. | ||
| Consumption | Normal working < 14W, standby < 0.5W | ||
| Working environment | Temperature | -20℃ - +70℃ | |
| Humidity | 20% - 80% | ||
| SD Card Type Series | Dimension | 150*137*60MM | |
| Weight | 1.65KG | ||
