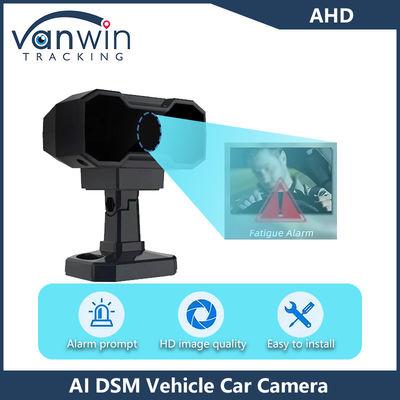

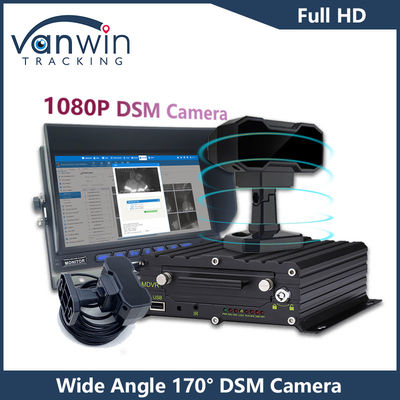

DMS 4G GPS Full HD Monitoring Truck Fatigue Camera Anti Sleep Safety Material Driver
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-DS01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Type: | DSM Camera,AI Camera | Warranty: | 12 Months |
|---|---|---|---|
| Nightvision: | Support | Sensor: | AHD 1080P |
| View Angle: | 150 Degree | Color: | Black |
| Size: | 135*85*55mm | Lens: | 2.8mm |
| Operation Temperature: | -20℃ To 70℃ | Power Supply:: | DC 12V |
| Highlight: | Full HD Monitoring Truck Fatigue Camera,4G GPS Monitoring Truck Fatigue Camera,Anti Sleep Monitoring Truck Fatigue Camera |
||
Product Description
DMS 4G GPS Full HD Monitoring Truck Fatigue Camera Anti Sleep Safety Material Driver
Product Description
The Car Fatigue Detection Monitoring Camera is an advanced safety device designed to enhance driver awareness and reduce the risk of accidents due to fatigue. Utilizing cutting-edge technology, this camera monitors the driver's behavior in real-time, ensuring a safer driving experience for all occupants.
Key Features:
-
Real-Time Monitoring: The camera continuously observes the driver’s facial expressions and eye movements to detect signs of drowsiness or fatigue.
-
Alerts and Notifications: If fatigue is detected, the system sends immediate alerts through visual and auditory signals, prompting the driver to take a break.
-
High-Resolution Imaging: Equipped with high-definition video capabilities, the camera provides clear and accurate monitoring, even in low-light conditions.
-
Wide-Angle View: The camera covers a broad field of view, ensuring comprehensive monitoring of the driver's face without blind spots.
-
User-Friendly Interface: The intuitive display allows easy access to settings and notifications, ensuring a seamless user experience.
-
Compact Design: The sleek and unobtrusive design integrates perfectly into any vehicle's interior, maintaining aesthetic appeal while providing functionality.
Main Specifications
|
Image Sensor: |
1/3 CMOS |
|
TV System: |
1080P PAL/NTSC(Option) |
|
LENS: |
2.8mm |
|
View Angle: |
120°-170° |
|
Sync System: |
Internal |
|
Signal to Noise Ratio: |
≥48dB |
|
AGC/White Balance/Backlight Compensation: |
Auto |
|
Shockproof: |
10G |
|
Power Supply: |
DC12V |
|
Current Drain: |
75±5 MA |
|
Horizontal Resolution: |
720P/1080P |
|
Mirror/Normal Image Adjustable: |
Adjustable |
|
Electronic Shutter: |
1/50-1/100000S,1/60-1/100000s |
|
Image Frame Rate: |
50/60fps--1/100000 |
|
Minimum Illumination: |
0.001 Lux / F1.2 |
|
Operating Temperature: |
–20℃ ~ 70℃,RH85% MAX |
|
Storage Temperature: |
–30℃ ~ 85℃,RH95% MAX |
|
Video Output: |
1.0V P-P/75Ω |
|
Connector: |
RCA or 4Pin (Option) |
|
Net weight: |
350g |
|
Product Size: |
135*85*55mm |
|
Product packaging: |
Color box,135*85*55mm |
|
Cover material: |
Plastic |
|
Microphone: |
Optional |
Benefits:
-
Enhanced Safety: Reduces the likelihood of accidents caused by driver fatigue, contributing to overall road safety.
-
Increased Awareness: Encourages drivers to remain vigilant, promoting a culture of safety and responsibility on the road.
-
Easy Installation: Designed for simple installation in various vehicle types, with minimal setup required.
Car Fatigue Detection Monitoring Camera: User Guide
1. Installation
-
Mount the Camera: Position the camera on the dashboard or rearview mirror, ensuring it's directed at the driver’s face for optimal monitoring.
-
Connect Power Supply: Plug the camera into the vehicle's power outlet (12V) using the provided adapter.
2. Initial Setup
-
Turn On the Camera: Press the power button. The camera will initialize and start monitoring.
-
Adjust Settings: Use the camera’s interface to adjust sensitivity levels, alert thresholds, and notification preferences.
3. Monitoring
-
Real-Time Monitoring: The camera continuously analyzes the driver’s facial expressions and eye movements for signs of fatigue.
-
Alerts: If fatigue is detected, the camera will issue an audible alert and visual notification to prompt the driver to take a break.
4. Maintenance
-
Regularly Clean the Lens: Ensure the camera lens is free from dust and obstructions for accurate monitoring.
-
Check Firmware Updates: Periodically check for software updates to enhance performance and features.
5. Troubleshooting
-
Camera Not Turning On: Ensure the power connection is secure. Check the vehicle's power outlet.
-
False Alerts: Adjust the sensitivity settings if alerts are triggered frequently without signs of fatigue.
6. User Tips
-
Stay Alert: While the camera assists in monitoring fatigue, drivers should remain attentive and aware of their surroundings.
-
Take Regular Breaks: Follow recommended driving breaks to prevent fatigue, even if the camera does not issue alerts.
