8CH AHD Dual SD Card Mobile DVR System 4G WIFI GPS MDVR For Live View
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-604 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Ups Technology: | Support | Audio Output: | 8 Channel |
|---|---|---|---|
| Storage Card: | Dual SD Card ( MAX 2*512G ) | Warranty: | 16 Months |
| Operation System: | Linux | Oil Sensor: | Support |
| Usb Backup: | Support | Gps: | Support |
| WIFI: | Support | 4G: | Support |
| Application: | Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine | Power Supply: | 8V-36V DC Optional |
| Highlight: | 8CH AHD Mobile DVR System,Live View Mobile DVR System,4G WIFI GPS MDVR |
||
Product Description
8CH AHD Dual SD Card Mobile DVR System With 4G WIFI GPS MDVR For Live View
Product Description
This advanced mobile digital video recorder is designed to meet the demanding requirements of in-vehicle video surveillance. With its 8-channel video input and dual SD card storage system, it offers reliable and flexible recording capabilities.
Functions
- GPS locating in real time;
- Track by 4G network;
- Low power alarm;
- Over speed alarm;
- Geo-fence alarm;
- Parking alarm;
- Tired driving alarm
- History playback;
- Mileage statistics;
- Reports statistics;
- Support 4 channels of 720P HD video real-time storage and upload;
- Support 1 channel CVBS video output, external AV display for real-time video live broadcast;
- Support remote intercom;
- Support 2PCS of SD card (128GB maximum) cyclic storage at the same time;
- Multiple expansion interface, support to connect to fuel sensor, advertising screen, broadcast station, etc.;
- It can support built-in or external WIFI module, connect to senior assistant (APP) through WIFI, flexibly configure device parameters, video real-time viewing and retrieval, camera angle adjustment.
Parameters:
| File System | FAT32 exclusive file system | |
|
Video Playback |
Video Search | Search recorded video files by recording time and recording method |
| Playback | Support at max 4 channel synchronous playback, suspend, forward, backward | |
| Support 2/4/8/16 times speed forward or backward | ||
| Security Management | User Password or administrator password management, support screen locked | |
|
Expansion functions |
TTS Voice broadcast | Support TTS voice broadcast |
| Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | |
|
Power and Consumption |
Power Management |
Self-adaptive wide voltage input, with protect functions for overload, under voltage, short circuit, reversing connection, etc Support time setting startup/shutdown, delayed power off function |
|
Power and Consumption |
Input Voltage | DC:+8V - +36V |
| Output Voltage | +12V@1.5A,+5V@1.5A | |
| Power-off Protection | UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off. | |
| Consumption | Normal working < 14W, standby < 0.5W | |
| Working environment | Temperature | -20℃ - +70℃ |
| Humidity | 20% - 80% | |
|
SD Card Type Series |
Dimension | 150*137*60MM |
| Weight | 1.60KG | |

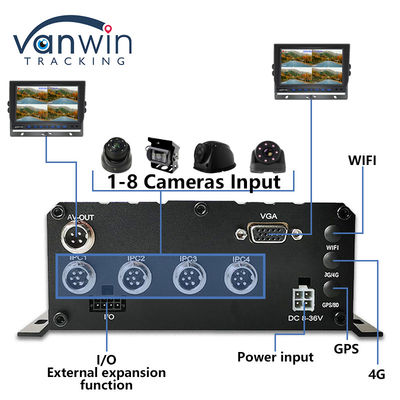

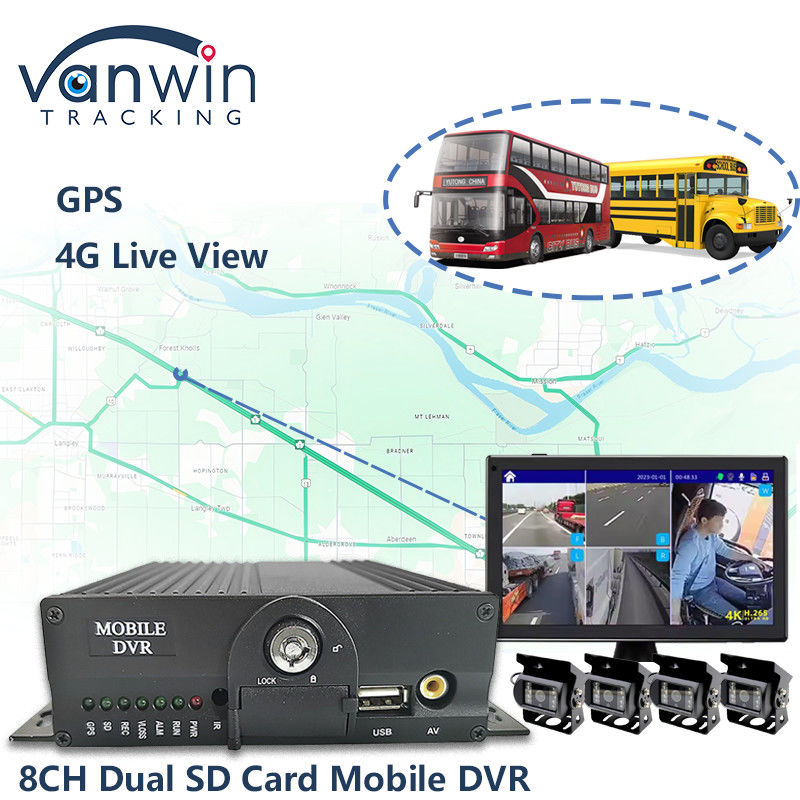

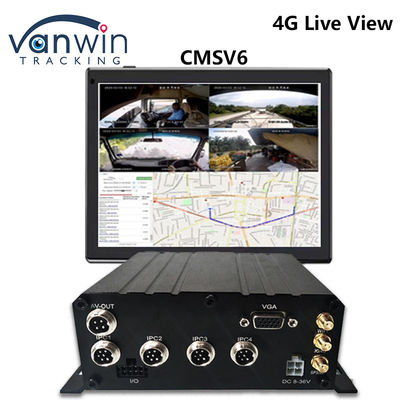

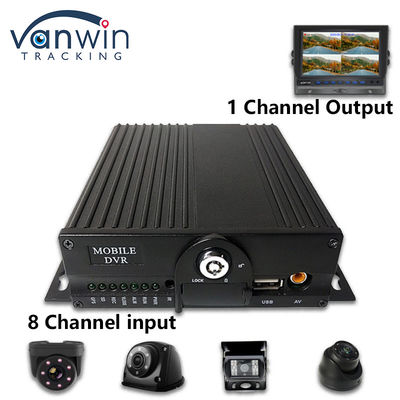

Product photos
Preparation
-
Tools and Materials: Gather your tools (screwdriver, wrench, etc.) and materials (screws, mounting brackets).
-
Check Equipment: Ensure that the DVR and two SD cards are in good working condition.
Choosing the Installation Location
-
Location Selection: Choose a suitable location for the DVR, typically under the vehicle's dashboard or in a location that is secure and accessible.
-
Accessibility: Ensure that the location allows for easy access to the SD card slots.
Mounting the DVR
-
Mounting Bracket: If your DVR comes with a mounting bracket, secure it to the chosen location using the screws provided.
-
DVR Placement: Attach the DVR to the mounting bracket, ensuring it is firmly secured.
Wiring the DVR
-
Power Connection: Connect the DVR to the vehicle’s power supply. This usually involves connecting to the battery or the fuse box.
-
Camera Connections: If applicable, connect the cameras to the DVR. Ensure that the cables are routed neatly to avoid damage.
Inserting SD Cards
-
Card Installation: Insert both SD cards into their respective slots on the DVR.
-
Format SD Cards: Once installed, format the SD cards using the DVR’s settings menu if necessary.
Testing the System
-
Power On: Turn on the vehicle and power up the DVR.
-
Function Test: Check the video feed from the cameras and ensure recording is functioning correctly.
Final Checks
-
Secure Cables: Ensure all cables are secured and not at risk of being damaged.
-
Documentation: Keep a record of the installation for future reference.
Tips
-
Always refer to the manufacturer's manual for specific installation instructions related to your model.
-
Ensure all connections are secure to prevent any disconnections during operation.
