HD 1080p BSD Camera With Built-in Algorithm Pedestrian Vehicle Detection with Audible Alarm
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-236BSD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | BSD Camera With Built-in Algorithm | Type: | 1080P AI BSD Camera |
|---|---|---|---|
| View Angle: | 150°Wide Angle | Night Vision: | Super Night Vision |
| Ai Function: | BSD Function | Functions: | AI BSD,Waterproof,Shockproof,Night Vision |
| Language: | Chinese,English,Russian,Multi-Language | Working Temperature: | -20℃ To +70℃ |
| Highlight: | Pedestrian Vehicle Detection BSD Camera,HD 1080p BSD Camera,Audible Alarm BSD Camera |
||
Product Description
BSD Camera With Built-in Algorithm Description
HD 1080p BSD Camera With Built-in Algorithm Pedestrian Vehicle Detection with Audible Alarm
The BSD (Blind Spot Detection) Camera with Built-in Algorithm is a cutting-edge vision system designed to revolutionize safety and operational efficiency in automotive, industrial, and smart infrastructure applications. Combining high-resolution imaging with advanced embedded AI, this camera delivers real-time object detection, collision avoidance, and environmental awareness—all processed locally for zero latency and maximum reliability.
BSD Camera With Built-in Algorithm Key Features
1.Integrated AI Processor
- Onboard neural network accelerator enables real-time analysis of video streams (up to 60 FPS) for instant decision-making.
- Pre-trained algorithms for blind spot monitoring, pedestrian detection, vehicle tracking, and obstacle recognition.
2.High-Performance Imaging
- 1080p/4K resolution with HDR support for crisp visuals in low-light, glare, or backlit conditions.
- Ultra-wide 150° field of view (FOV) minimizes blind zones.
3.All-Weather Durability
- IP69K-rated housing withstands extreme temperatures (-30°C to +85°C), dust, and water immersion.
- Anti-vibration design for heavy-duty vehicles or machinery.
4.Plug-and-Play Flexibility
- Compatible with CAN/LIN/Ethernet interfaces for seamless integration into existing ADAS or IoT platforms.
- Configurable via mobile app or PC software; supports OTA (Over-the-Air) updates.
5.Data Privacy & Security
- Edge computing ensures sensitive data is processed locally, eliminating cloud dependency.
- AES-256 encryption for secure communication.
BSD Camera With Built-in Algorithm Main Specifications:
| Category | Specifications |
|---|---|
| Imaging | |
| Sensor | Sony STARVIS™ CMOS (1/2.8") |
| Resolution | 1080p (1920×1080) or 4K (3840×2160) |
| Frame Rate | Up to 60 FPS |
| Dynamic Range | >120 dB HDR |
| Field of View (FOV) | 150° ultra-wide angle |
| Lens Aperture | f/1.6, 6G+IR glass |
| Low-Light Performance | 0.01 lux (color) / 0.001 lux (B&W, IR-cut removed) |
| Processing | |
| Processor | Dual-core ARM Cortex-A53 + Neural Processing Unit (NPU) |
| AI Compute Power | 2 TOPS (Tera Operations Per Second) |
| Latency | <50 ms end-to-end processing |
| Pre-installed Algorithms | Blind spot detection, pedestrian/vehicle tracking, obstacle recognition |
| Custom Algorithm Support | Yes (via SDK/API) |
| Connectivity | |
| Interfaces | CAN, LIN, Ethernet (PoE support) |
| Data Output | RTSP, ONVIF, TCP/IP |
| Wireless Options | Optional Wi-Fi/4G/5G module (add-on) |
| Power & Environment | |
| Power Supply | 12-24V DC |
| Power Consumption | <3W (low-power mode), <5W (full operation) |
| Operating Temperature | -30°C to +85°C |
| Protection Rating | IP69K (dust/waterproof) |
| Vibration Resistance | MIL-STD-810G compliant (up to 5Grms) |
| Software & Security | |
| Configuration Tools | Mobile app, PC software |
| Firmware Updates | OTA (Over-the-Air) support |
| Data Security | AES-256 encryption, secure boot |
| Certifications | CE, FCC, ISO 16750 (automotive), RoHS |
| Physical | |
| Dimensions | 90mm × 60mm × 40mm (compact housing) |
| Weight | 300g |
| Mounting | Adjustable bracket (included) |
| Warranty & Support | 2-year warranty, 24/7 technical support |
BSD Camera With Built-in Algorithm Applications
Automotive: Blind spot detection for trucks/buses, lane-change assistance, cyclist alerts.
Industrial: AGV (Automated Guided Vehicle) navigation, warehouse safety zones.
Smart Cities: Intersection monitoring, traffic flow analysis.

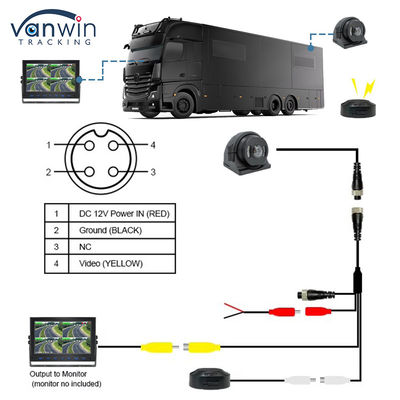

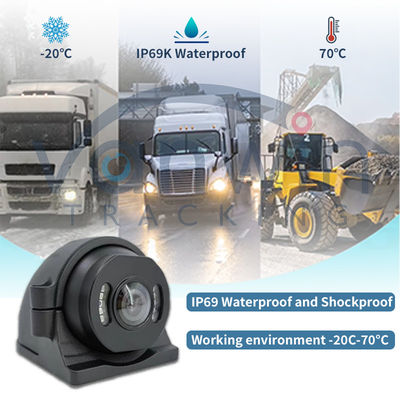

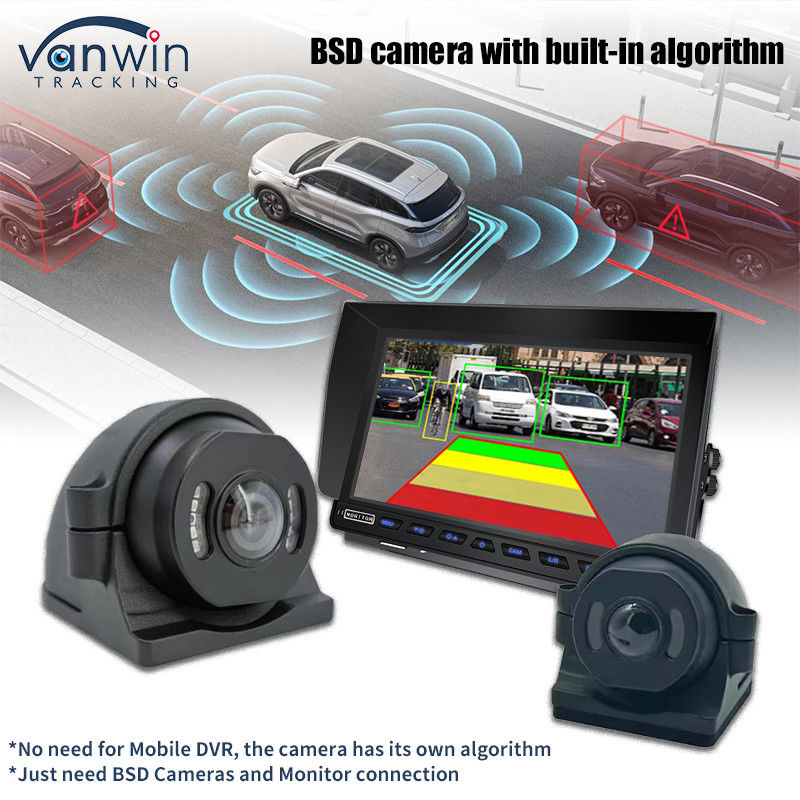

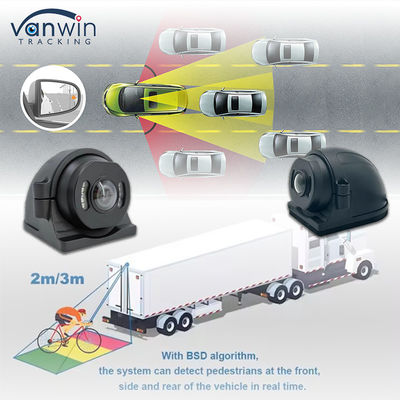

BSD Camera With Built-in Algorithm Product Photos
Why Choose Our BSD Camera?
Accuracy: 99.5% detection rate (tested under ISO 17387 standards).
Cost-Effective: Eliminates external servers/GPUs with onboard processing.
Scalable: Add custom algorithms (e.g., license plate recognition, gesture control).
FAQ:BSD Camera With Built-in Algorithm
1. Product Functionality
Q1: What distinguishes this BSD Camera from traditional cameras?
A: Unlike standard cameras, this device integrates an AI processor (NPU) directly on-board, enabling real-time object detection (e.g., vehicles, pedestrians) and blind spot analysis without relying on external servers or cloud computing.
Q2: Can it operate in extreme weather conditions?
A: Yes. With an IP69K rating and a temperature range of -30°C to +85°C, it performs reliably in heavy rain, snow, dust, and high-heat environments.
Q3: Does it require internet connectivity?
A: No. All processing is done locally via edge computing, ensuring zero latency and data privacy. Internet is only needed for optional OTA updates or cloud backups.
2. Installation & Compatibility
Q4: What systems is the camera compatible with?
A: It supports CAN, LIN, and Ethernet interfaces, making it compatible with most ADAS platforms, IoT gateways, and industrial control systems.
Q5: Is specialized training required for installation?
A: No. The plug-and-play design and included SDK/API simplify integration. Basic automotive/IT expertise is sufficient.
Q6: Can I mount it on non-automotive equipment (e.g., AGVs, drones)?
A: Absolutely. The anti-vibration housing (MIL-STD-810G) suits heavy machinery, AGVs, drones, and smart city infrastructure.
3. Algorithms & Performance
Q7: What pre-installed algorithms are included?
A: Default algorithms cover blind spot detection, pedestrian/vehicle tracking, obstacle recognition, and traffic flow analysis.
Q8: Can I add custom algorithms (e.g., license plate recognition)?
A: Yes. The open SDK/API allows integration of third-party or custom AI models. Training support is available upon request.
Q9: What is the detection accuracy?
A: Lab-tested at 99.5% under ISO 17387 standards. Real-world performance may vary slightly based on environmental factors.
4. Security & Maintenance
Q10: How is data privacy ensured?
A: Edge processing keeps data on-device, and AES-256 encryption secures communication. No raw video is stored unless configured.
Q11: How are firmware updates handled?
A: Updates are pushed via OTA (Over-the-Air) or manually through the PC software. Release notes and backward compatibility are guaranteed.
Q12: What maintenance is required?
A: The camera is designed for zero maintenance. Periodically clean the lens and check wiring connections for optimal performance.
5. Purchasing & Support
Q13: What’s included in the package?
A: The camera unit, mounting bracket, harness kit, SDK documentation, and a 2-year warranty.
Q14: Do you offer volume discounts for OEM?
A: Yes. Contact our sales team for customized pricing based on order volume and integration requirements.
Q15: How do I access technical support?
A: 24/7 support is available via email, phone, or a dedicated portal. Remote diagnostics can be performed with user consent.
