4 Channel SD Card Mobile DVR Dual Card Dual Standby For Vehicle Monitoring
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9034B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for bulk orders |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 50,000 pcs per month |
|
Detail Information |
|||
| Highlight: | 4 Channel SD Card Mobile DVR,Vehicle Monitoring SD Card Mobile DVR,Dual Standby SD Card Mobile DVR |
||
|---|---|---|---|
Product Description
4 Channel SD Card Mobile DVR Dual Card Dual Standby For Vehicle Monitoring
This mobile video recorder with double SD card slot is suitable for buses, school buses, trams and other public transport vehicles to store more high-definition monitoring pictures.
Main features of 4 Channel SD Card Mobile DVR:
4 recording channels: Up to 4 cameras can be used simultaneously, thus fully covering the vehicle or area of interest.
High-precision video: High-precision video that provides clear and detailed photos for effective crime supervision and investigation.
Dual SD slots: Set two SD slots to increase storage capacity. This function ensures uninterrupted registration without the need for manual input.
Compression design: All types of vehicles, including cars, trucks and buses, can be easily fitted with small sides.
Real-time restart: Provides real-time display to improve the availability and readability of recorded data.
G Integrated sensors: There are G sensors for detecting unexpected movements or collisions and automatically saving video before and after an event to verify safety.
Remote access: Support for remote presentation and management via mobile devices or computer applications, allowing users to monitor their cameras anytime, anywhere.
User-friendly interface: The interface helps simplify operations and makes it accessible to users at all levels of technology.
Rugged: Designed to withstand harsh environmental conditions, thus ensuring reliable functioning in different structures.
4 Channel SD Card Mobile DVR Specifications:
| Item | Parameter | Specification | |
| System | Language | English/Chinese | |
| OSD | Graphic User Interface(OSD menu) | ||
| Password | User password/Administrator password | ||
| Video | Input |
Support 4ch 1080P/720P/D1 video input Support 2ch 1080P AHD + 2ch 720P /2CH D1 video input Support 2ch 720P AHD + 2ch D1 video input |
|
| Output | 1ch video output(V-OUT), 1ch VGA video output | ||
| Display | 1CH/4CH display | ||
| Standard | PAL/NTSC ( PAL@60 frame 1080P; NTSC@60 frame 1080P ) | ||
| Image Compression | H.264 Main profile, 100fps | ||
| Audio | Input | 4CH audio input | |
| Output | 1ch audio output(A-OUT) | ||
| Recording Mode | Synchronous recording in audio&video | ||
| Image Processing & Storage | Video format | CIF / HD1 / D1 / 960H / 720P/1080P. | |
| Video Stream Standard | ISO14496-10 | ||
| Video Bit Rate(kbps) | CIF:1536Kbps ~ 128Kbps HD1/D1:2048Kbps ~ 400Kbps, 720P:4096Kbps ~ 512Kbps 1080P: 4096Kbps ~ 1024Kbps | ||
| 4 levels settings optional, highest: level 4; lowest: level 1 | |||
| Audio Bit Rate | 40KB/s | ||
| Storage | Support 1*SD card, Max 512GB | ||
| Alarm |
Input | 3CH alarm input | |
| Output | 1CH alarm output, high level 12V output | ||
| Communication Port | RS232 Interface | Support 1 RS232 interface | |
| network interface | Support a 6 Pin header network interface, support access to local network and report to server,connect the IP cams. | ||
| USB2.0 Interface | Support 1*USB interface for software upgrading and record file copy | ||
| Wireless | 3G | 3G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) module optional | |
| 4G | 4G(FDD-LTE/TDD-LTE) module optional | ||
| WIFI | WIFI module(2.4/5.8GHz) optional | ||
| G-Sensor | Build-in G-Sensor | ||
| Software | PC Playback | Play back video on computer and analyze vehicle information from recording file | |
| CMS | Video preview, GPS uploading, alarm uploading, central command parameter configuration etc. via wireless | ||
| Software Upgrading | Support USB upgrading, SD card upgrading and CMS remote upgrading | ||

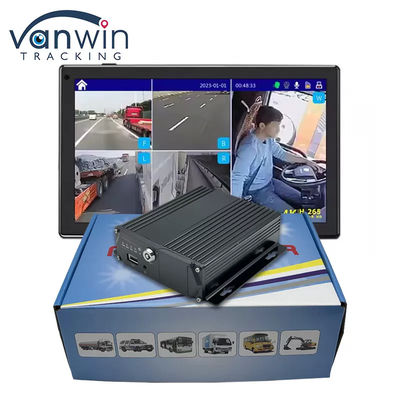

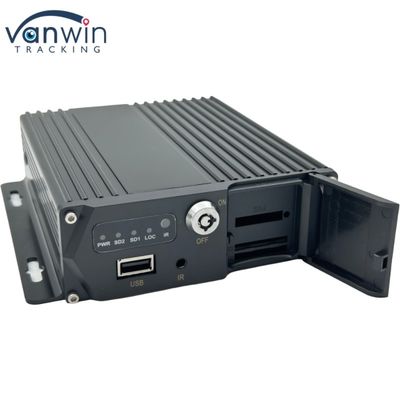

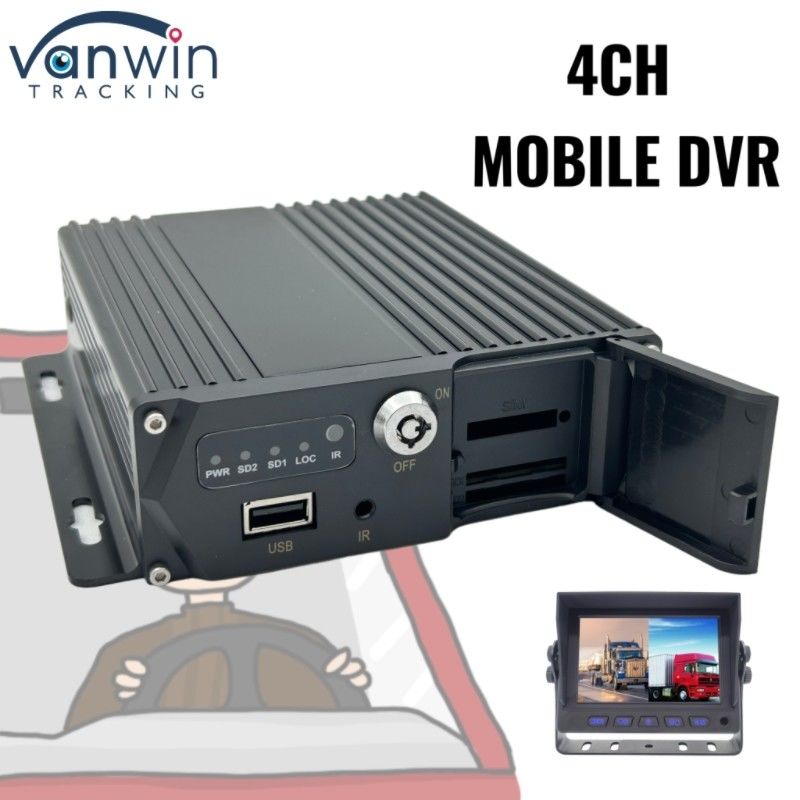

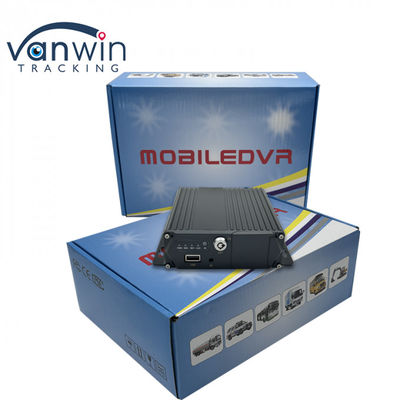

4 Channel SD Card Mobile DVR Product Pictures
Our Advantage:
We are the team that invested in the development of AI video recorders in the early days, and we have rich experience and mature technology. Our products are sold at home and abroad, and can be adapted to the requirements of different fleets, and are well received by customers. You can solve problems in one stop with us, our products contain all the equipment of vehicle monitoring system, saving your cost and time.
