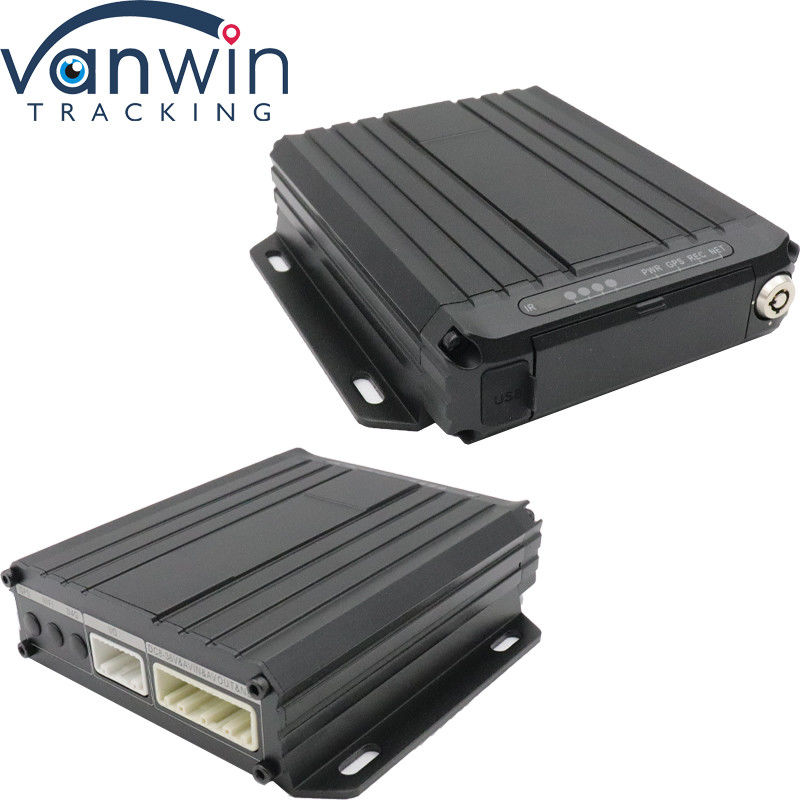

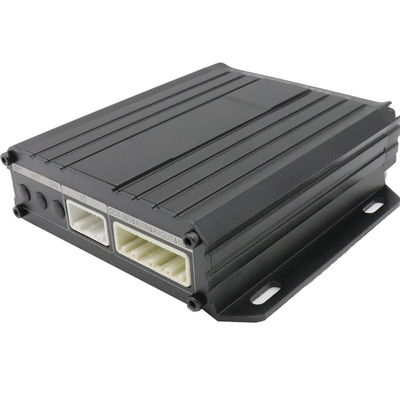

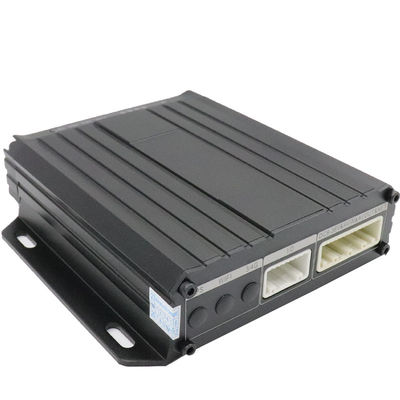

1080P Dual SD Card 4 Channel Mobile Dvr With 4G GPS Wifi Vehicle CCTV Camera
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9604 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000 pcs per month |
|
Detail Information |
|||
| Video Compression: | H. 264 | Resolution: | Support 1080P/720P/D1/CIF |
|---|---|---|---|
| Storage: | Dual SD Card, Max 256GB | Warranty: | 18 Months |
| Power Supply: | 8V-36V | Type: | SD Card Mobile DVR |
| Channel: | 4CH | WIFI、WIFI AP: | Optional |
| Highlight: | 4 Channel Mobile Dvr With GPS,4 Channel Mobile Dvr With Wifi |
||
Product Description
1080P Dual SD Card 4 Channel Mobile Dvr With 4G GPS Wifi Vehicle CCTV Camera
Technical Specifications for Intelligent Cold Chain Vehicle Monitoring System
I. System Architecture Design
-
Multi-Network Communication
-
4G Multi-Carrier Module (China Mobile/Unicom/Telecom)
-
BeiDou-3 + GPS Dual-Mode Positioning (Accuracy ≤1.5m)
-
Dual-Band WiFi (2.4GHz/5GHz, 802.11ac)
-
-
Dual Storage Architecture
-
Hot-swappable Dual SD Card Slots (Max 2×512GB)
-
Mechanical Anti-Vibration Design (Random Vibration Test 10-2000Hz)
-
II. Cold Chain Monitoring
-
Temperature Control System
-
8-Channel DS18B20 Digital Temperature Sensors
-
Monitoring Accuracy: ±0.5℃ (-55℃~+125℃)
-
Alarm: Real-Time Over-Temperature Alerts (SMS/Platform)
-
III. Hardware Specifications
-
Compact Design
-
Dimensions: 145(L)×95(W)×35(H)mm
-
Mounting: DIN Rail/Bolt Dual Mounting (QC/T 413 Certified)
-
-
Power Management
-
Input Voltage: DC 9-36V (ISO 7637-2 Transient Immunity)
-
Power Loss Protection: Super Capacitor Backup ≥5s
-
IV. Intelligent Platform
-
Video Processing
-
H.265 Encoding (Compression Ratio ≥1000:1)
-
3D Digital Noise Reduction (SNR ≥42dB)
-
-
Remote Management
-
GB/T 28181 Protocol Cascading
-
Live Streaming (Latency ≤300ms)
-
V. Environmental Resilience
-
Operating Temperature
-
Main Unit: -40℃~+85℃
-
Storage Media: -40℃~+70℃ (Heated Enclosure)
-
-
Protection Ratings
-
IP67 Dust/Water Resistance
-
Salt Spray Test: 96hrs (GB/T 2423.17)
4G GPS DVR Specifications:
FQA:
1. Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2. Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3. Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4. Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
-
